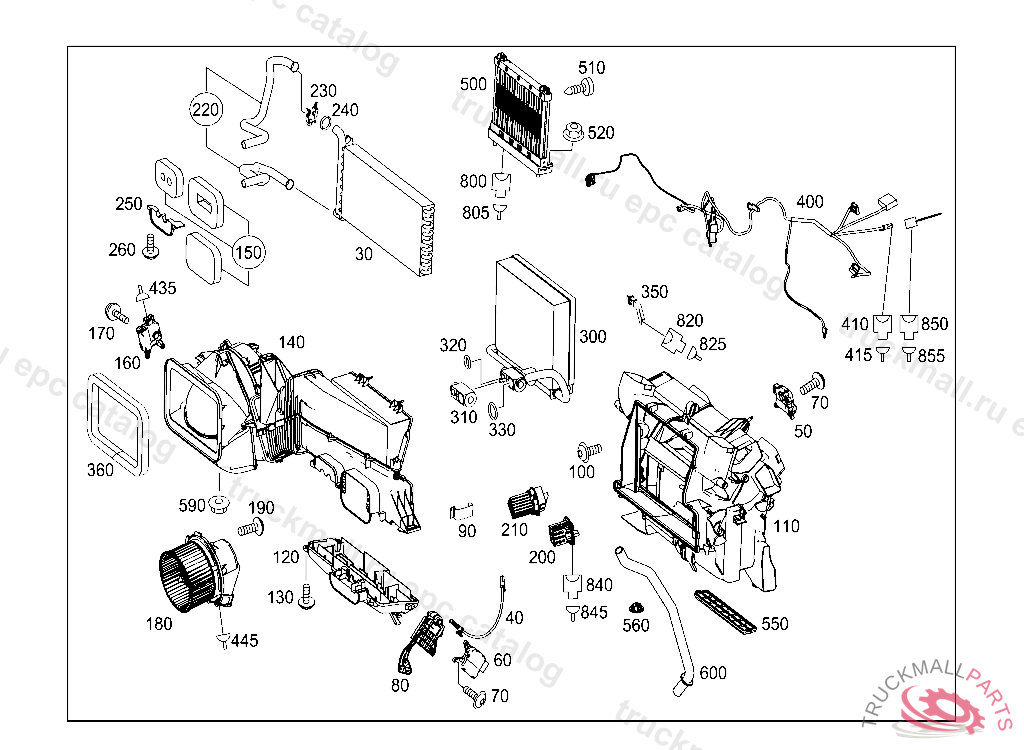

Поз.
Артикул
Описание
30
HEAT EXCHANGER
40
PULL TEMPERATURE CONTROL
50
ELECTRIC MOTOR AIR DISTRIBUTOR
60
ELECTRIC MOTOR TEMPERATURE CONTROL
70
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
80
LEVER FLAP CONTROL
80
LEVER FLAP CONTROL
80
LEVER FLAP CONTROL
90
SPRING
100
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
110
HOUSING DISTRIBUTOR HOUSING, S 41246520090831 E 02976020100129
110
HOUSING HEATER UNIT DISTRIBUTOR HOUSING
110
HOUSING HEATER UNIT DISTRIBUTOR HOUSING
110
HOUSING DISTRIBUTOR HOUSING, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 41246520090831 E 02976020100129, Replaced By: A0008303840
110
HOUSING DISTRIBUTOR HOUSING, Replaced By: A0008303740
110
HOUSING HEATER UNIT DISTRIBUTOR HOUSING, S 41246620090831 E 02976120100129
120
SHELL CONDENSED WATER, S 47392020100506 E 02976020100129
120
DRAINAGE PAN CONDENSED WATER
130
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
140
HOUSING HEATER CASE
140
HOUSING HEATER CASE
140
HOUSING HEATER CASE
140
HOUSING HEATER CASE
150
SEAL PARTS KIT
160
ELECTRIC MOTOR FRESH AIR/CIRCULATING AIR
170
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
180
BLOWER
180
BLOWER
190
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
200
REGULATOR BLOWER
210
BLOWER REGULATOR BLOWER
220
PIPELINE
230
CLIP PIPE TO HEAT EXCHANGER
240
SEAL RING
250
BRACKET PIPE LINES
260
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
300
EVAPORATOR , N 45184620100506 E 05718420440404
300
EVAPORATOR , N 45184520100506 E 05718320440404, Replaced By: A0028303758, +001A0008310170
310
VALVE PIPE LINE CONNECTION 18MM, A 33977120020418 E 02000020070101
320
O-RING HOSE TO EXPANSION VALVE 17X2
330
SEAL RING FROM LIQUID TANK TO T-FITTING
350
TEMPERATURE SENSOR EVAPORATOR
360
SEAL FIRE WALL
400
WIRING HARNESS
400
WIRING HARNESS
400
WIRING HARNESS
400
WIRING HARNESS
410
PIN BUSHING HOUSING UNIPOLAR
415
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 4-6 MM2
435
CONTACT SPRING1.5-2.5 MM2
445
CONTACT SPRING1.5-2.5 MM2
500
CONTROL UNIT ADDITIONAL HEATER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 61152820110902, Replaced By: A9069009000
500
CONTROL UNIT ADDITIONAL HEATER, N 49168120110902, Replaced By: A9069001700
500
CONTROL UNIT ADDITIONAL HEATER
510
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
520
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
550
SEAL HEATER BOOSTER CONTROL MODULE
560
PLUG REAR END FLOOR,LEFT 25 MM, A 01232520070831
560
EXPANSION PLUG A-PILLAR OUTSIDE 25 MM
590
NUT BRACKET TO BODY SHELL M6
600
HOSE CONDENSED WATER DRAIN
800
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
805
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
805
FUSE LINK ON-BOARD ELEC. SUPPLY CONTROL MODULE 150A
820
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
825
GASKET. BLIND PLUG BLUE
825
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
825
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
840
PIN BUSHING HOUSING WIPER MOTOR
845
FEMALE CONTACT. CONTACT SPRING4.0 MM2
850
PIN BUSHING HOUSING UNIPOLAR
855
FLAT PLUG WITH DETENT 4-6 MM2
