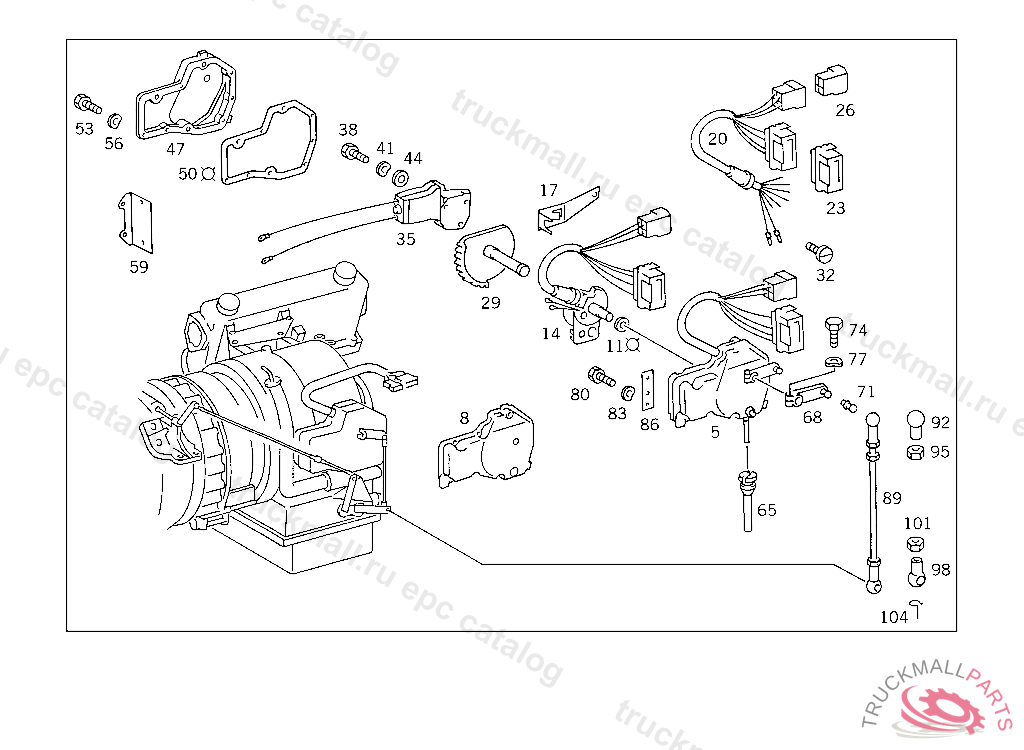

Поз.
Артикул
Описание
5
SWITCH , Replaced By: A3075400745
8
SHELL RANGE SELECTOR
11
SEAL RING RANGE SELECTOR SWITCH
14
SWITCH RANGE SELECTOR
14
SWITCH , Replaced By: A3055400145
17
BRACKET ELECTRIC CABLES
20
CABLE HARNESS RANGE SELECTOR
23
PLUG HOUSING 8-POLE
26
PLUG HOUSING 4-POLE
29
SHAFT RANGE SELECTOR
32
SCREWR & S, M 4X8
35
MOTOR RANGE SELECTOR 24 V
38
SCREW , Replaced By: A0009847929
38
SCREW , Replaced By: N304017006020
38
SCREW , Replaced By: N304017006016
41
SPRING WASHER LICENSE PLATE TO BRACKET
44
WASHER , Replaced By: A0009940510
44
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
44
CONICAL SPRING WASHER COVERING
47
CAP RANGE SELECTOR SWITCH
50
GASKET , Replaced By: A3055450280
50
GASKET RANGE SELECTOR SWITCH
53
SCREW CONNECTOR
56
SPRING WASHER LICENSE PLATE TO BRACKET
59
BRACKET COVER TO CONVERTER HOUSING
59
BRACKET , Replaced By: A6155460343
65
GROMMET GEAR SELECTOR HOUSING VENT
68
LEVER RANGE SELECTOR
71
BALL PIVOT CONTROL SHAFT
74
SCREW , Replaced By: N304017006020
77
SPRING WASHER LICENSE PLATE TO BRACKET
80
SCREW REAR AXLE REGULATING SOLENOID VALVE
83
SPRING WASHER , Replaced By: N000137008212
86
BRACKET , Replaced By: A3604293140
89
ROD RANGE SELECTOR
92
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
95
NUT BALL PIVOT TO LEVER
98
BALL SOCKET L.H. THREAD
101
NUT L.H. THREAD
104
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 30X1
