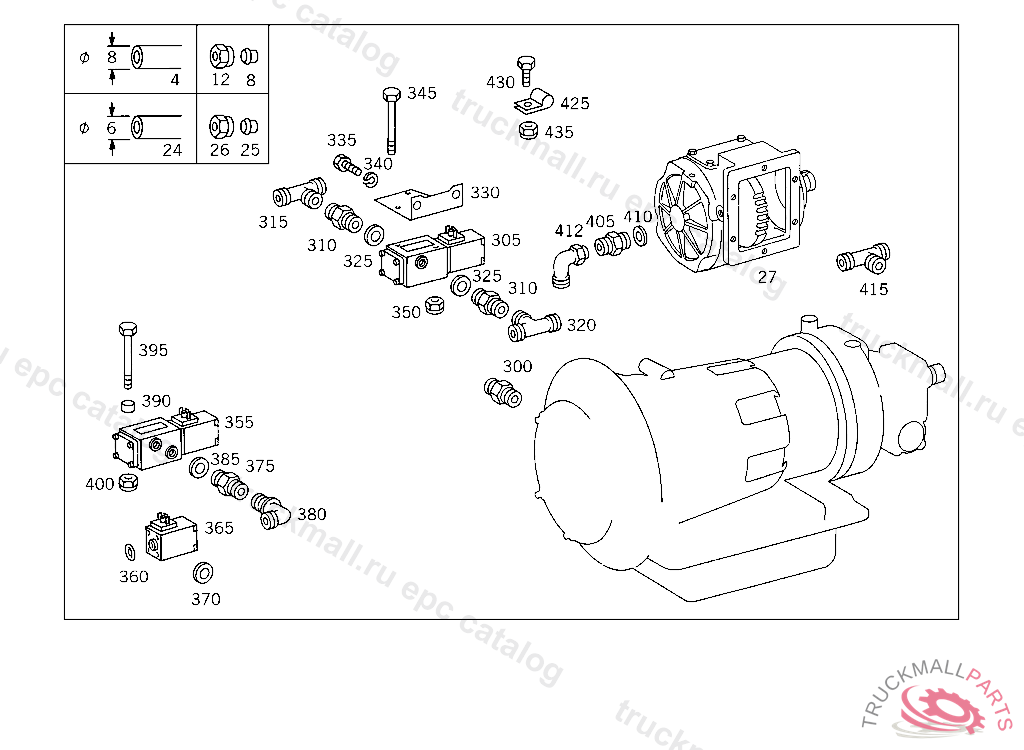

Поз.
Артикул
Описание
4
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
8
GLAND LINE CONNECTION
8
GLAND LINE MOUNTING,5 9363655 812730
12
UNION NUT LINE CONNECTION
12
UNION NUT LINE MOUNTING,5 9363655 812730
24
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
25
SEAL CONE
25
GLAND , Replaced By: A0019901667
26
UNION NUT
27
P.T.O.
27
P.T.O.
27
P.T.O.
27
P.T.O. , Replaced By: A3852700509
27
P.T.O. , Replaced By: A3852700609
27
P.T.O. , Replaced By: A3852700709
27
P.T.O. , Replaced By: A3852700809
27
P.T.O. , Replaced By: A3852701009
27
P.T.O. , Replaced By: A3852701109
27
P.T.O. , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 017201, Replaced By: A6762701609
300
FITTING P.T.O.
305
VALVE 3/2-WAY
305
VALVE , Replaced By: A0002702989
305
VALVE , Replaced By: A0002702989
310
FITTING TRANSMISSION CONNECTION
315
T-FITTING EXTENSIBLE BRAKE VALVE, 4 691696
320
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
325
SEAL RINGTO 000 270 08 89,16 89,25 89
330
BRACKET (VALVE)
335
SCREW BRACKET TO TRANSMISSION,5 360279
335
SCREW BRACKET TO TRANSMISSION CASE
340
LOCK WASHER FITTING TO BRACKET
345
SCREW VALVE TO BRACKET
350
NUT HOOK TO BRACKET
355
VALVE 3/2-WAY
355
VALVE , Replaced By: A0002702989
355
VALVE , TO BE ADAPTED DURING ASSEMBLY, REMOVE PLUG FROM CONNECTION "T", Replaced By: A0002700689
355
VALVE , Replaced By: A0002700889
355
VALVE , Replaced By: A0002702989
360
SEAL RINGTO 000 270 08 89,16 89,25 89
365
LIFTING MAGNETTO 000 270 08 89,16 89,25 89
370
SEAL RINGTO 000 270 08 89,16 89,25 89
375
FITTING TRANSMISSION CONNECTION
380
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
385
SEAL RINGTO 000 270 08 89,16 89,25 89
390
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
395
SCREW VALVE TO BRACKET
400
NUT HOOK TO BRACKET
405
FITTING SHUT-OFF VALVE,CONNECTION: "40"
410
SEAL RING LINE CONNECTION
412
SCREW CONNECTION P.T.O.
415
T-FITTING OIL LINE TO OIL COOLER
425
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
425
CLAMP , Replaced By: N916016008200
425
CLAMP , Replaced By: A3604300143
425
CLAMP ,K 147121, Replaced By: N000000000319
430
SCREW , Replaced By: N304017006016
430
SCREW PUMP TO BRACKET
435
NUT PUMP TO BRACKET
435
NUT , Replaced By: N913004006001
999
MAGNETTO 000 270 29 89
999
VALVE , Replaced By: A0022601757
999
VALVE REPAIR KIT TO 000 270 29 89
999
FITTING EXHAUST BRAKE SWITCH TO SIGNAL PRESSURE CONNECTION AT TRANSMISSION
