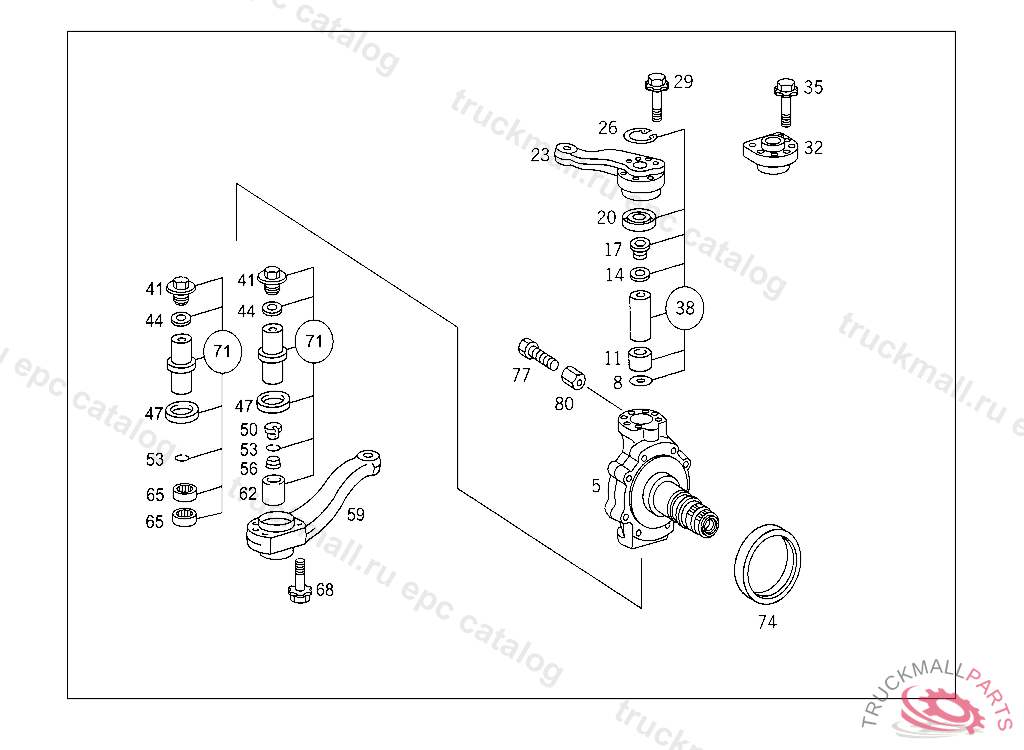

Поз.
Артикул
Описание
5
STEERING KNUCKLE FRONT AXLE,LEFT AND RIGHT
8
THRUST WASHER STEERING ARM TO STEERING KNUCKLE
11
BUSHING STEERING KNUCKLE BEARING,TOP
14
SEAL RING OIL FILLING AND OIL DRAIN
17
SCREW PLUG
17
SCREW PLUG , Replaced By: A2109970132
20
SEAL RING STEERING KNUCKLE BEARING,TOP, MAN AXLE
23
STEERING ARM
23
STEERING ARM
26
LOCK RING FLANGE TO P.T.O.
29
SCREW STEERING ARM TO STEERING KNUCKLE
29
SCREW
32
EXPANSION PLUG , Replaced By: A3463320333
32
EXPANSION PLUG
35
SCREW
38
REPAIR KIT (PARTS KIT),STEERING KNUCKLE BEARING, TOP
41
SCREW PLUG STEERING KNUCKLE BEARING,BOTTOM
44
SEAL RING OIL FILLING AND OIL DRAIN
47
SEAL RING STEERING KNUCKLE BEARING,BOTTOM
50
THRUST WASHER STEERING KNUCKLE BEARING,BOTTOM 10 MM
53
SNAP RING FRONT AXLE STABILIZER
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 8.80 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.10 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.70 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.00 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 8.90 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.30 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.20 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.40 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.60 MM
56
THRUST WASHER AS REQUIRED 9.50 MM, MAN AXLE
59
STEERING ARM LEFT STEERING KNUCKLE
59
STEERING ARM STEERING KNUCKLE,LEFT BOTTOM,V 492664
59
STEERING ARM RIGHT, MAN AXLE
59
STEERING ARM RIGHT,V 492664
62
BUSHING
65
NEEDLE BEARING KINGPIN,TOP AND BOTTOM 50.00 MM
68
SCREW STEERING ARM TO STEERING KNUCKLE
68
SCREW
71
KINGPIN , Replaced By: A3463300219
71
REPAIR KIT (PARTS KIT),STEERING KNUCKLE BEARING, BOTTOM
71
REPAIR KIT (PARTS KIT),STEERING KNUCKLE BEARING, BOTTOM,V 492664
74
SPACER RING STEERING KNUCKLE,FRONT
77
SCREW STEERING KNUCKLE STOP
80
HEXAGON NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
80
HEXAGON NUT. NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, Replaced By: N000000005461
