Поз.
Артикул
Описание

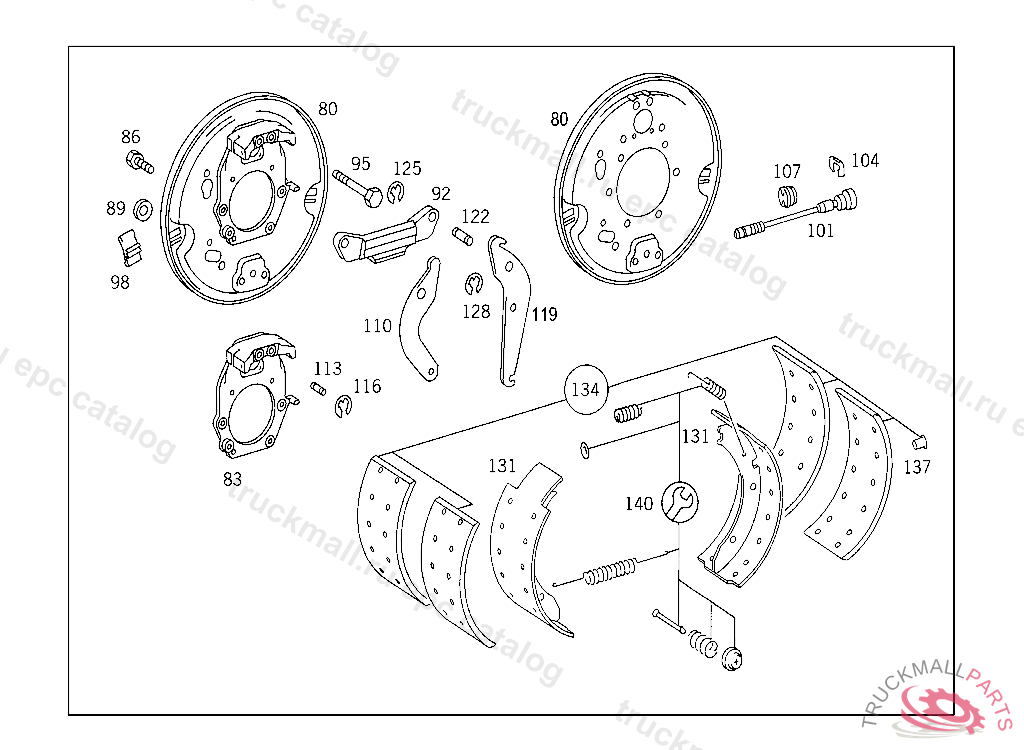

80
BRAKE ANCHOR PLATE BRAKE SHOE,LEFT,M 048039
80
BRAKE ANCHOR PLATE BRAKE SHOE,RIGHT,M 048039
80
BRAKE ANCHOR PLATE (BRAKE ANCHOR PLATE),LEFT
80
BRAKE ANCHOR PLATE , Replaced By: A6694202717
83
BRAKE SHOE SUPPORT (BRAKE ANCHOR PLATE),LEFT,M 048038
83
BRAKE SHOE SUPPORT (BRAKE ANCHOR PLATE),RIGHT,M 048038
83
BRAKE SHOE SUPPORT (BRAKE ANCHOR PLATE),LEFT,M 048039
83
BRAKE SHOE SUPPORT (BRAKE ANCHOR PLATE),RIGHT,M 045231
86
SCREW , Replaced By: A0009907704
89
RUBBER BUFFER BRAKE ANCHOR PLATE,INSPECTION HOLE
92
ROD HAND BRAKE
95
SCREW BRAKE ANCHOR PLATE TO REAR AXLE
98
PLUG PROTECTIVE PLATE
101
SENDER UNIT BRAKE LINING WEAR
104
LOCK BRAKE LINING WEAR
107
PLUG SENDER UNIT TO BRAKE ANCHOR,L 312629
110
BRAKE LEVER , Replaced By: A6704270425, +004A6704230274, +008N006799010001
110
LEVER HAND BRAKE LEVER,495609
110
LEVER HAND BRAKE
113
PIN BRAKE SHOE SUPPORT TO BRAKE ANCHOR PLATE
116
LOCK PLATE RELEASE LEVER TO SHAFT
119
LEVER , Replaced By: A6704271025
119
LEVER HAND BRAKE,M 007891
119
LEVER HAND BRAKE,P 060996
122
PIN HAND BRAKE
122
PIN HAND BRAKE LEVER TO BRAKE ANCHOR PLATE TO 670 420 05 11
125
LOCK PLATE INTERMEDIATE BEARING
128
LOCK PLATE RELEASE LEVER TO SHAFT
131
BRAKE SHOE , Replaced By: A6704202919
131
BRAKE SHOE REAR,M 048038
131
BRAKE SHOE FRONT
131
BRAKE SHOE , Replaced By: A6704202519
131
BRAKE SHOE REAR,M 048039
134
BRAKE LINING , Replaced By: A6704235911
134
BRAKE LINING , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE P 163474, Replaced By: A6704236011
134
BRAKE LINING , Replaced By: A6704236111
134
BRAKE LINING , Replaced By: A6704236211
134
BRAKE LINING , Replaced By: A6704236011
134
BRAKE LINING , Replaced By: A6704236111
134
BRAKE LINING , Replaced By: A6704236211
134
BRAKE LINING , Replaced By: A6704235911
134
BRAKE LINING (PARTS KIT) REPAIR SIZE 0,FOR EXPORT, WITH WEAR INIDCATOR 9.70 MM, JURID
134
BRAKE LINING (PARTS KIT) STANDARD,WITH WEAR INDICATOR 10.00 MM, JURID
134
BRAKE LINING (PARTS KIT) REPAIR SIZE I,WITH WEAR INDICATOR 10.50 MM, JURID
134
BRAKE LINING (PARTS KIT) REPAIR SIZE II,WITH WEAR INDICATOR 11.00 MM, JURID
134
BRAKE LINING (PARTS KIT) REPAIR SIZE 0,FOR EXPORT, WITH WEAR INIDCATOR 9.70 MM, BERAL
134
BRAKE LINING (PARTS KIT) STANDARD,WITH WEAR INDICATOR 10.00 MM, BERAL
134
BRAKE LINING (PARTS KIT) REPAIR SIZE I,WITH WEAR INDICATOR 10.50 MM, BERAL, Replaced By: A6704237411
134
BRAKE LINING (PARTS KIT) REPAIR SIZE I,WITH WEAR INDICATOR 10.50 MM, BERAL
137
RIVET ,180280180281 SEE UNIT MICROFICHE,MODEL: 741.0
140
REPAIR KIT , Replaced By: A6884210192
140
REPAIR KIT BRAKE SHOE SPRING
