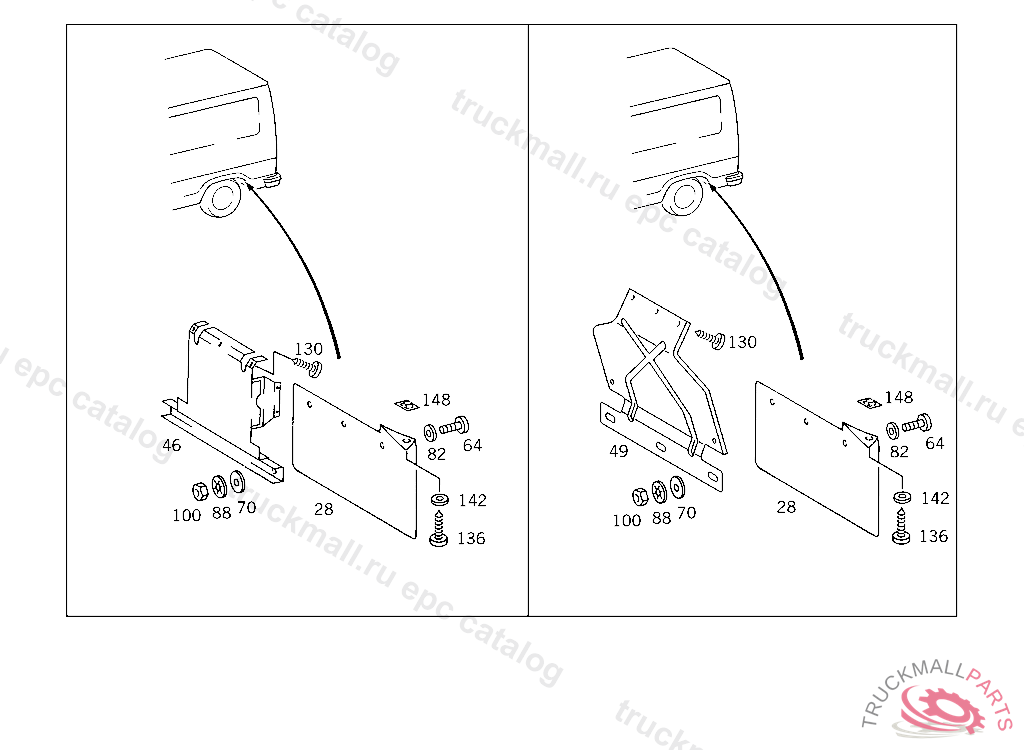

Поз.
Артикул
Описание
28
SPLASH GUARD REAR RIGHT
28
SPLASH GUARD REAR LEFT
46
BRACKET MUD APRON,RIGHT,P 130012
46
BRACKET LEFT MUD APRON,P 130012
49
BRACKET MUD APRON,P 130013
64
SCREW JUNCTION BOX TO BRACKET
70
WASHER EXHAUST MUFFLER TO STRAP
82
WASHER , Replaced By: N009021008213
82
WASHER BRACKET TO LEFT SIDE MEMBER
88
SERRATED WASHER MUD APRON TO BRACKET
100
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
130
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
130
SHEET METAL SCREW BRACKET TO FLOOR PLATE
136
TAPPING SCREW BRACKET MOUNTING 4.8X19
136
SHEET METAL SCREW , Replaced By: N007981004252
136
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
142
WASHER , Replaced By: N009021005205
142
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
148
LOCK MUD APRON TO FENDER
