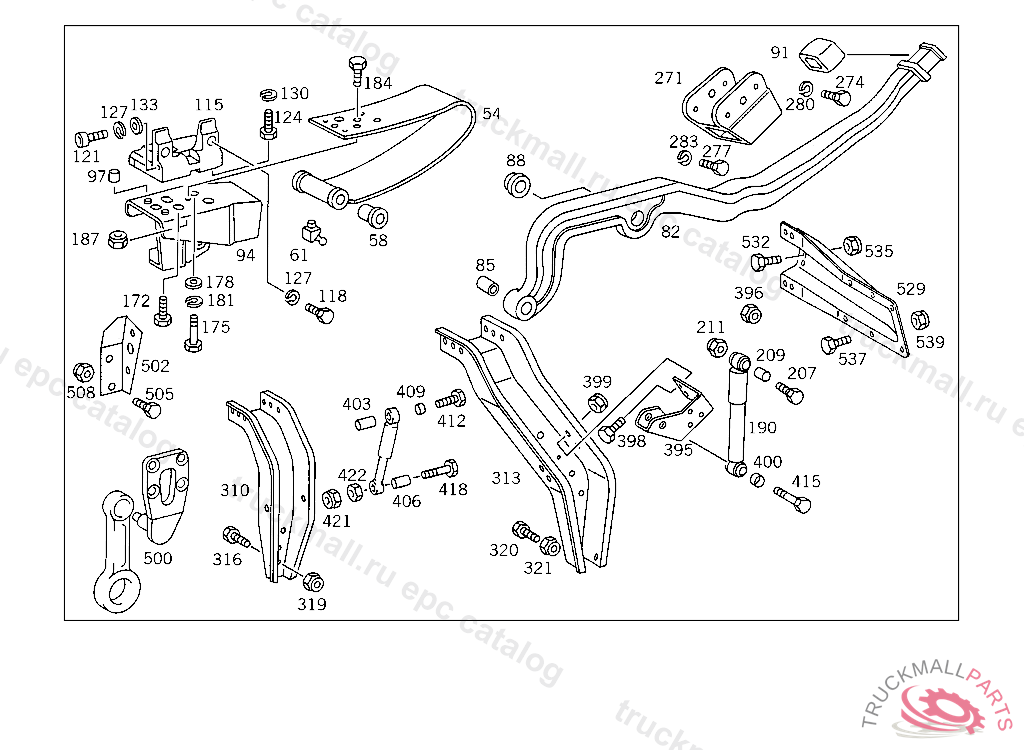

Поз.
Артикул
Описание
54
SPRING , Replaced By: A3878910551, +002A3638910617, +001N071412008200
54
SPRING CAB SUSPENSION,FRONT
58
BUSHING SPRING
61
GREASE NIPPLE FOR SPRING
82
LEVER (TILTING LEVER),CAB
82
LEVER (TILTING LEVER),CAB
82
LEVER (TILTING LEVER),CAB
82
LEVER , Replaced By: A3878912856
85
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
85
BUSHING TILTING LEVER
85
BUSHING TILTING LEVER
88
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
91
BUFFER TILTING LEVER
94
MOUNTING SPRING AND STABILIZER,RIGHT
94
MOUNTING SPRING AND STABILIZER,LEFT
94
MOUNTING ,5 178428, Replaced By: A6218900503, +001A6203100177
94
MOUNTING ,5 178428, Replaced By: A6218900403, +001A6203100177
97
PIN
115
CONSOLE , Replaced By: A6208910731
115
CONSOLE , Replaced By: A6208910631
115
CONSOLE CAB SUSPENSION,FRONT LEFT
115
CONSOLE CAB SUSPENSION,FRONT RIGHT
118
SCREW ,5 903514, Replaced By: N000960012353
118
SCREW TORSION BAR TO SHACKLE,5 903514
121
SCREW LEFT AND RIGHT CONSOLES TO CAB M 12X30
124
SCREW , Replaced By: N308676014020
124
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
127
LOCK WASHER FITTING TO BRACKET
130
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
133
WASHER LEFT AND RIGHT CONSOLES TO CAB
172
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
175
SCREW , Replaced By: N000961014148
175
SCREW , Replaced By: N000961014084
175
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
178
WASHER SPARE WHEEL CARRIER
181
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
184
SCREW , Replaced By: N304017008034
187
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
187
NUT , Replaced By: N913004008001
190
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
190
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
207
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
207
SCREW VIBRATION ABSORBER TO CONNECTOR
207
SCREW SHOCK ABSORBER TO RAIL
207
SCREW , Replaced By: N308676018010
207
SCREW , Replaced By: N000960018142
209
SPACER TUBE SHOCK ABSORBER TO RAIL
211
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
211
NUT , Replaced By: N910113018004
271
MOUNTING , Replaced By: A3878913220
271
MOUNTING , MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 837892, Replaced By: A6208901603
271
MOUNTING CAB TILTING LEVER
271
MOUNTING CAB TILTING LEVER
274
SCREW END PIECE TO EXHAUST PIPE M 10X25
277
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
277
SCREW , Replaced By: N308676012012
280
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
283
LOCK WASHER FITTING TO BRACKET
310
CONSOLE CAB SUSPENSION,REAR
313
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
313
CONSOLE CAB SUSPENSION,REAR LEFT
313
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
313
CONSOLE CAB SUSPENSION,REAR RIGHT
316
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
316
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
316
SCREW , Replaced By: N308676014020
319
NUT , Replaced By: N910113014001
319
NUT BRACKET TO SIDE MEMBER
320
SCREW , Replaced By: N308676014012
320
SCREW , Replaced By: A9429901304
320
SCREW SUPPORT TO SIDE MEMBER M 14X45
320
SCREW APPARATUS SUPPORT TO FRAME
321
NUT STEERING SUPPORT TO FRAME
321
NUT , Replaced By: N910113014000
395
MOUNTING RIGHT VIBRATION ABSORBER
395
MOUNTING LEFT VIBRATION ABSORBER
395
MOUNTING LEFT VIBRATION ABSORBER
395
MOUNTING , Replaced By: A3878918620, +001N000439018210
395
MOUNTING , Replaced By: A3878918520, +001N000439018210
395
MOUNTING RIGHT VIBRATION ABSORBER
396
NUT , Replaced By: N910113018004
396
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
398
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
398
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
398
SCREW , Replaced By: N308676012026
398
SCREW , Replaced By: N308676012012
399
NUT SUPPORT TO SIDE MEMBER
400
SPACER TUBE MOUNTING TO CONSOLE
400
SPACER TUBE SHOCK ABSORBER TO RAIL
403
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
406
SPACER TUBE SHOCK ABSORBER TO RAIL
409
SPACER TUBE SHOCK ABSORBER TO RAIL
409
SPACER TUBE MOUNTING TO CONSOLE
412
SCREW , Replaced By: N000960018072
412
SCREW VIBRATION ABSORBER TO CONSOLE
415
SCREW , Replaced By: N308676018010
415
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
418
SCREW VIBRATION ABSORBER TO CONNECTOR
421
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
421
NUT , Replaced By: N910113018004
422
NUT VIBRATION ABSORBER TO CONSOLE
500
BEARING BRACKET TORSION BAR,LEFT
500
CONSOLE , Replaced By: A6163260663
500
CONSOLE , Replaced By: A6163260563
500
BEARING BRACKET TORSION BAR,RIGHT
502
REINFORCEMENT LEFT SHOCK ABSORBER,4 336574
502
REINFORCEMENT RIGHT SHOCK ABSORBER
505
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
505
SCREW , Replaced By: N308676014020
508
NUT , Replaced By: N910113014001
508
NUT BRACKET TO SIDE MEMBER
529
BRACKET RIGHT FENDER
529
BRACKET LEFT FENDER
532
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
532
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
532
SCREW , Replaced By: N308676012026
532
SCREW , Replaced By: N308676012012
535
NUT SUPPORT TO SIDE MEMBER
537
SCREW BRACKET TO SIDE MEMBER
539
NUT , Replaced By: N910113014001
539
NUT BRACKET TO SIDE MEMBER
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
999
WASHER , Replaced By: A6558910210
999
WASHER HOLLOW RUBBER SPRING
999
STABILIZER , Replaced By: A6528900104
999
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
999
SPACER TUBE
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
BEARING BRACKET LINK,5 172818
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT SIDE MEMBER
999
WASHER STABILIZER TO BEARING
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
BRACKET BUFFER
999
SPACER TUBE MOUNTING TO CONSOLE
999
SHIM , Replaced By: A3878910498
999
RAIL , Replaced By: A6558900122
999
RAIL , Replaced By: A3878901222
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
WASHER BEARING BRACKET
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
FLANGE HOLLOW RUBBER SPRING
999
MOUNTING (RUBBER BUFFER)
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
