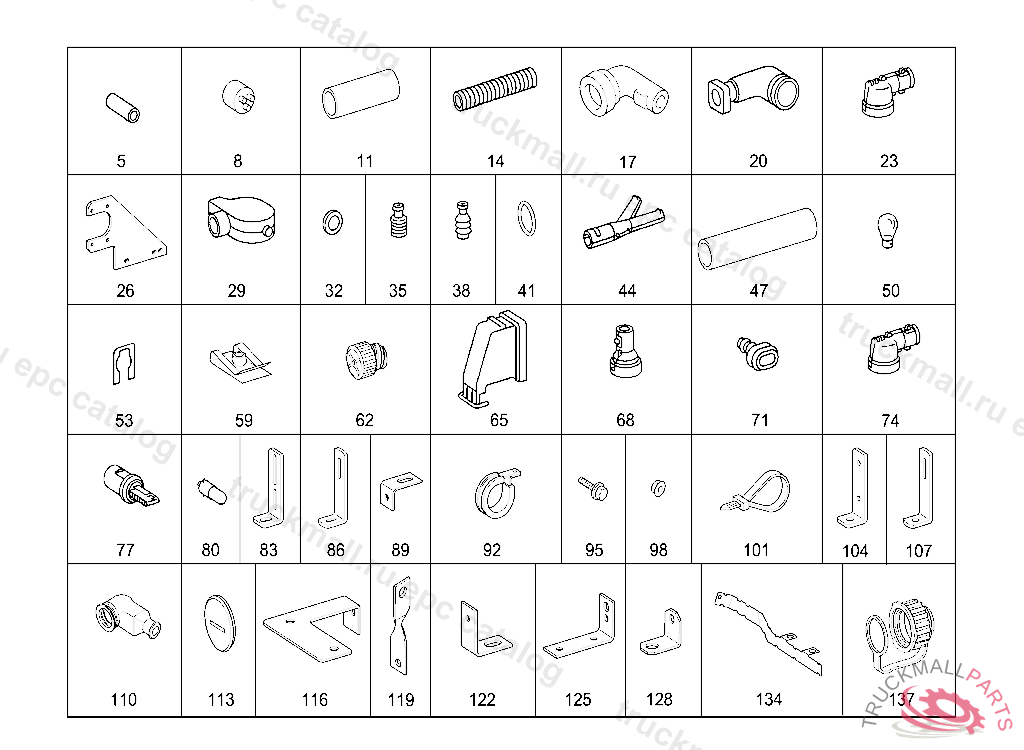

Поз.
Артикул
Описание
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
SHRINK HOSE
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
GROMMET1.75 MM
5
GROMMET
5
GROMMET3.0 MM
5
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
5
GROMMET5.0 MM
8
GROMMET ELECTRIC CABLE
11
HOSE
11
CABLE CONNECTOR1.0-2.6 MM2
11
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
14
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
14
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
14
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
14
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
14
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
14
INSULATING HOSE , Replaced By: A0015460030
14
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
17
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
20
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
23
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
26
BRACKET CHARGING PLUG SOCKET
29
BOOT POS. POLE
32
GASKET
35
WIRE SEAL
35
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
35
GASKET YELLOW 0.75-1.0 MM2, PIN 01 - 56
35
GASKET. BLIND PLUG
35
BLIND PLUG. GASKET WITHE ELB 4
38
GASKETKZ
38
CORE BUNDLE SEALING1.0-2.5 MM2
38
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
38
WIRE SEAL GREY 0.5-1.0 MM2
41
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, BLACK 9.5X1.8, 3PIN
41
SEAL RING ENGINE SPEED SENSOR, ORANGE 9.25X1.8, 2PIN
41
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, ORANGE 10.0X2.0, 3PIN
41
SEAL RING ENGINE SPEED SENSOR, BLACK 10.0X2.0, 2PIN
44
MOLDED PIECE26.0-22.0-17.0
44
MOLDED PIECE26 - 22 - 22
44
MOLDED PIECE22-22-13
44
MOLDED PIECE17-13-13
44
MOLDED PIECE10-10-10
44
MOLDED PIECE17-17-8.5
44
MOLDED PIECE13-10-8.5
44
MOLDED PIECE17-13-10
44
MOLDED PIECE13-13-8.5
44
MOLDED PIECE26-26-8.5
44
MOLDED PIECE10-8.5-8.5
44
MOLDED PIECE26.0-26.0-10.0
44
MOLDED PIECE13-10-10
44
MOLDED PIECE22-22-17
44
MOLDED PIECE8.5-8.5-8.5
44
MOLDED PIECE22-22-8.5
44
MOLDED PIECE22-22-10
44
MOLDED PIECE17-10-10
44
MOLDED PIECE22-17-13
44
MOLDED PIECE17-17-10
44
MOLDED PIECE29 - 29 - 22
47
BRACKET
47
BRACKET CABLE HARNESS RETARDER L1400
47
BRACKET
50
BULB
53
LOCK INSULATING HOSE
59
LOCK. NUT , Replaced By: A0039941745
59
LOCK NUT. SPRING NUT MOUNTING PARTS
59
LOCK NUT. SPRING NUT STEP TO ENTRANCE
62
CAP
65
CAP
68
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
68
CAP TWO-PIN PLUG CONNECTION,126372
71
CAP. BOOT ,126372
74
BOOT 90-DEGREE OUTLET FOR CORRUGATED TUBE 10 MM
77
SOCKET
80
MINIATURE LAMP. BULB24V/1W
83
83
BRACKET
83
BRACKET HOSE ATTACHMENT
86
BRACKET , Replaced By: A0005010070
89
BRACKET
92
CLAMP LINE MOUNTING
92
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
92
CLAMP LINE MOUNTING 15-18 MM,V 207570
92
CLAMP CABLE HARNESS MOUNTING
92
CLAMP LINE MOUNTING
92
CLAMP35/20, Replaced By: N000000007514
92
CLAMP , Replaced By: N916016010211
92
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
92
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
92
CLAMP HOSE TO FLANGE AND TO VALVE
92
CLAMP COOLING WATER HOSES
92
CLAMP , Replaced By: A3829950701
92
CLAMP , Replaced By: A3829950101
92
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
92
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
92
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
95
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
95
SCREW , Replaced By: N914146006102
95
SCREW BRACKET AND CLAMP M6X20
95
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
95
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
95
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
95
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
95
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
95
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
95
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
95
SCREWM 10X20
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
95
SCREW BRACKET TO CAB REAR PANEL M 8X20
95
SCREWM6X25
95
SCREW BATTERY CABLE TO BRACKET M6X45
95
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
95
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
95
SCREW SHIFT LEVER TO BRACKET M8X30
98
NUT IN CASE OF SUBSEQUENT INSTALLATION
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
98
HEXAGON NUT STARTING MOTOR TERMINAL 31
98
HEXAGON NUTM14X1.5
98
NUT , Replaced By: N913023010002
98
NUT SPRING-LOADED PUSH ROD
98
NUT BATTERY CABLE
98
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
98
NUT
98
NUT , Replaced By: N913023006001
98
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
98
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
101
CABLE TIE310X5MM
104
BRACKET ALTERNATOR
107
BRACKET
107
BRACKET ROCKER SWITCH
110
BOOT , Replaced By: A0005463335
113
116
BRACKET LINES UNDER CROSS MEMBER
119
BRACKET
119
BRACKET BRACKET TO HEAT EXCHANGER
122
BRACKET
122
BRACKET , Replaced By: A3014780040
125
BRACKET
128
BRACKET ENGINE CABLE HARNESS
134
BRACKETL491MM
137
137
BOOT ON AIR DRIER
999
999
999
