Mercedes A9415401236 - ЭЛ. ПРОВОД

2124 375.151

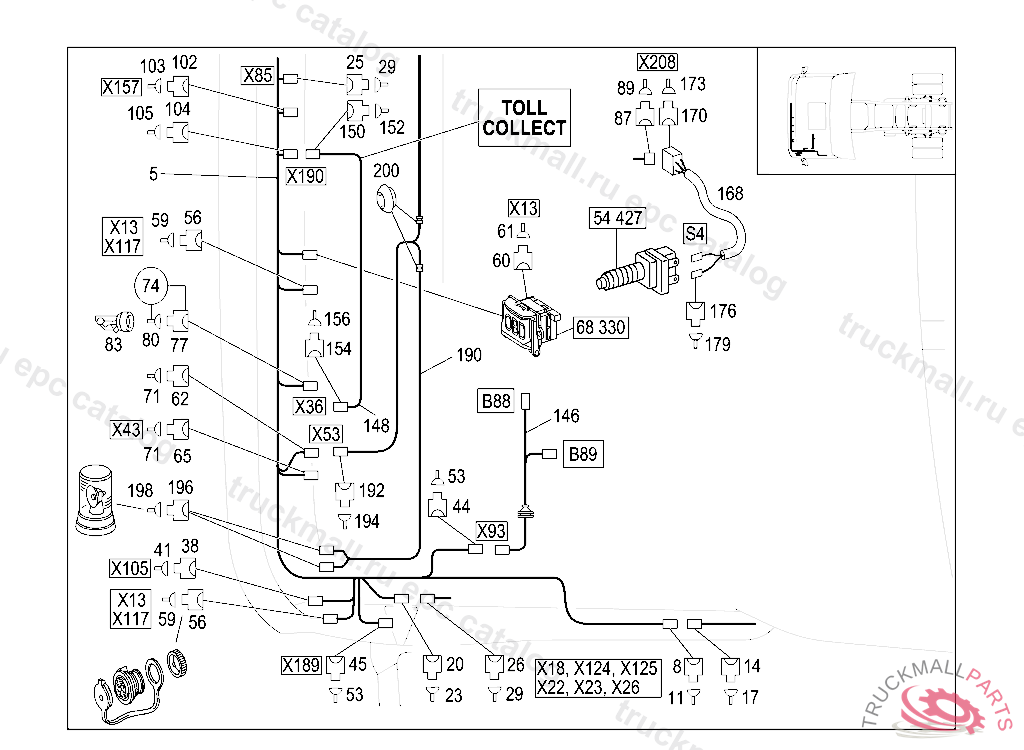

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 245 WAIST RAIL WIRING HARNESS IL. 2
  • Поз.
    Артикул
    Описание
  • 5
    ELECTRICAL WIRING HARNESS . , BM375.850, WHEN ORDERING, SPECIFY THE VARIANT NUMBER XVK.. ...... FROM VEDOC STATE IDENT NO. WHEN ORDERING
  • 8
    RECEPTACLE HOUSING. PIN BUSHING HOUSING21 PIN
  • 8
    RECEPTACLE HOUSING. PIN BUSHING HOUSING 18-POLE,GREY X1,X2,X3, ST1,ST2, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
  • 11
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 11
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 14
    PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR ROOF/INSTRUMENT SUPPORT X124, X125, 21 PIN
  • 14
    PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 18PIN
  • 17
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 17
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 20
    PIN BUSHING HOUSING AUTSIDE REARVIEW MIRROR ADJUSTMENT SWITCH 12 PIN, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
  • 20
    RECEPTACLE HOUSING. PIN BUSHING HOUSING LIGHT SWITCH 15 PIN
  • 20
    RECEPTACLE HOUSING. PIN BUSHING HOUSING 18-POLE,GREY X1,X2,X3, ST1,ST2, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
  • 23
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 23
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 25
    PLUG HOUSING STEERING COLUMN MOUNTED SWITCH 15 PIN
  • 26
    PLUG HOUSING STEERING COLUMN MOUNTED SWITCH 15 PIN
  • 26
    PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 12PIN
  • 26
    PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 18PIN
  • 29
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 29
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 38
    PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 12PIN
  • 41
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 41
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 44
    PIN BUSHING HOUSING VOLTAGE TRANSFORMER 6 PIN
  • 45
    PIN BUSHING HOUSING VOLTAGE TRANSFORMER 6 PIN
  • 53
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 53
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 56
    PLUG HOUSING 14-POLE
  • 59
    ROUND PIN BUSHING
  • 59
    CAP DIAGNOSIS PLUG SOCKET
  • 59
    CLAMPING RING DIAGNOSIS PLUG SOCKET
  • 59
    CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 60
    PLUG SOCKET DIAGNOSIS BOX X13, 16PIN
  • 61
    CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 62
    PIN BUSHING HOUSING BIPOLAR
  • 65
    PIN BUSHING HOUSING UNIPOLAR
  • 71
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 4-6 MM2
  • 71
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 71
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 71
    FEMALE DISCONNECT WITH DETENT AND WITH CATCH FOR HOUSING 2.5-4.0 MM2
  • 71
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5-4.0 MM2, Replaced By: A0009827926
  • 74
    PARTS KIT PLUG CONNECTION,TACHOGRAPH SENSOR X36, 4PIN, TO BE ADAPTED DURING ASSEMBLY
  • 77
    PLUG HOUSING 4-POLE
  • 80
    CORE BUNDLE SEALING1.0-2.5 MM2
  • 80
    WIRE SEAL GREY 0.5-1.0 MM2
  • 80
    GASKET. BLIND PLUG
  • 80
    NUT. CLAMPING RING
  • 80
    CONTACT PIN0.5-1.0 MM2
  • 80
    CONTACT PIN1.0-2.5 MM2
  • 83
    BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
  • 87
    PLUG HOUSING CONNECTOR, UNDERCARRIAGE/WAISTRAIL WIRING HARNESS X86, X118, 9 PIN
  • 89
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 89
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 102
    PLUG SOCKET TOLL CONTROL UNIT PREINSTALLATION 8 PIN, TOLL COLLECT, X157
  • 103
    BUSHING CONTACT TOLL CONTROL UNIT PREINSTALLATION 0.75 - 1.0 MM2
  • 104
    PLUG HOUSING CONNECTOR, UNDERCARRIAGE/WAISTRAIL WIRING HARNESS X86, X118, 9 PIN
  • 105
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 105
    FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 148
    ELECTRIC CABLE ADAPTER LINE FOR TOLL COLLECT
  • 150
    PIN BUSHING HOUSING9 PIN
  • 152
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 154
    PLUG SOCKET TOLL CONTROL UNIT PREINSTALLATION 8 PIN, TOLL COLLECT, X157
  • 156
    BUSHING CONTACT TOLL CONTROL UNIT PREINSTALLATION 0.75 - 1.0 MM2
  • 168
    ELECTRIC CABLE STOP LAMP AND CLUTCH SWITCH GLOBAL COCKPIT EPB2, X208 - S4/S85/S89
  • 170
    PIN BUSHING HOUSING9 PIN
  • 173
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 173
    CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
  • 176
    PIN BUSHING HOUSING PIN BUSHING 5.3 MM
  • 179
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 190
    CABLE HARNESS REVOLVING BEAM SIGNAL LAMP, TO BE SELF-PREPARED
  • 190
    CABLE HARNESS REVOLVING BEAM SIGNAL LAMP, TO BE SELF-PREPARED
  • 192
    PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
  • 194
    PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
  • 196
    PIN BUSHING HOUSING PIN BUSHING 5.3 MM
  • 198
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 200
    GROMMET FOGLAMP
