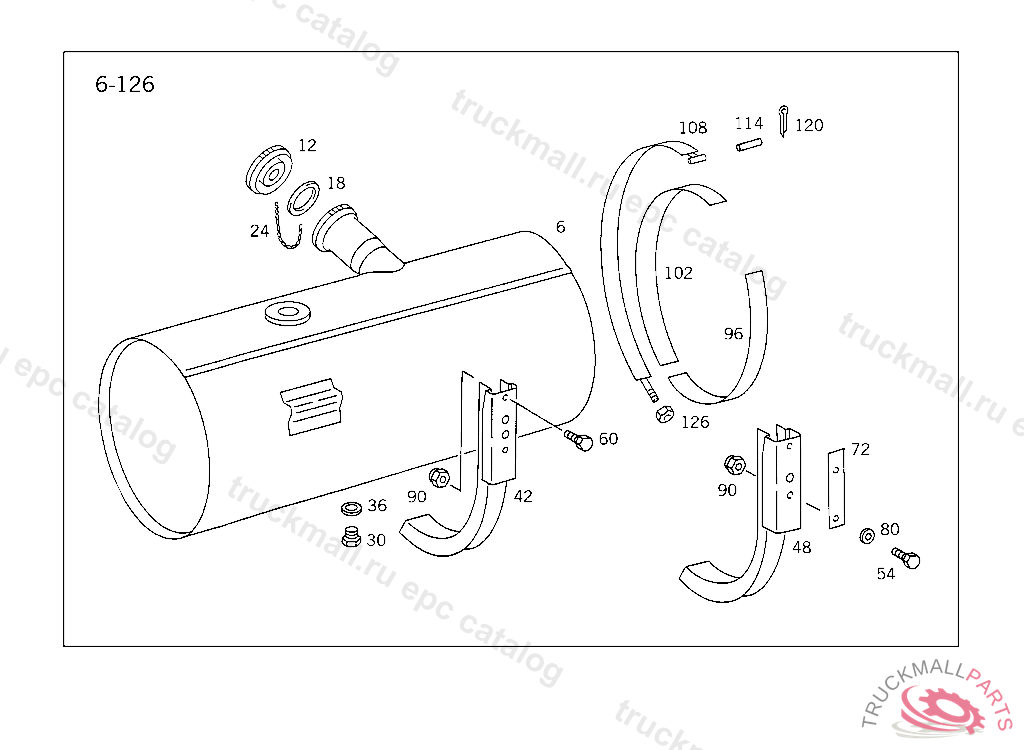

Поз.
Артикул
Описание
6
FUEL TANK , Replaced By: A3554700101
6
FUEL TANK200 L
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP
18
SEAL RING
24
CHAIN FILLER CAP
30
SCREW PLUG , Replaced By: N007604014110
30
SCREW PLUG FUEL TANK
36
SEAL RING FUEL LINE TO FEED PUMP
42
SUPPORT FUEL TANK TO FRAME
54
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
54
SCREW , Replaced By: N308676014020
54
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
72
SHIM SUPPORT TO SIDE MEMBER
90
NUT , Replaced By: N910113014001
90
NUT BRACKET TO SIDE MEMBER
96
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
102
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
108
STRAP FUEL TANK TO CONSOLE,5 149420
126
NUT STRAP TO SUPPORT
