Поз.
Артикул
Описание
5

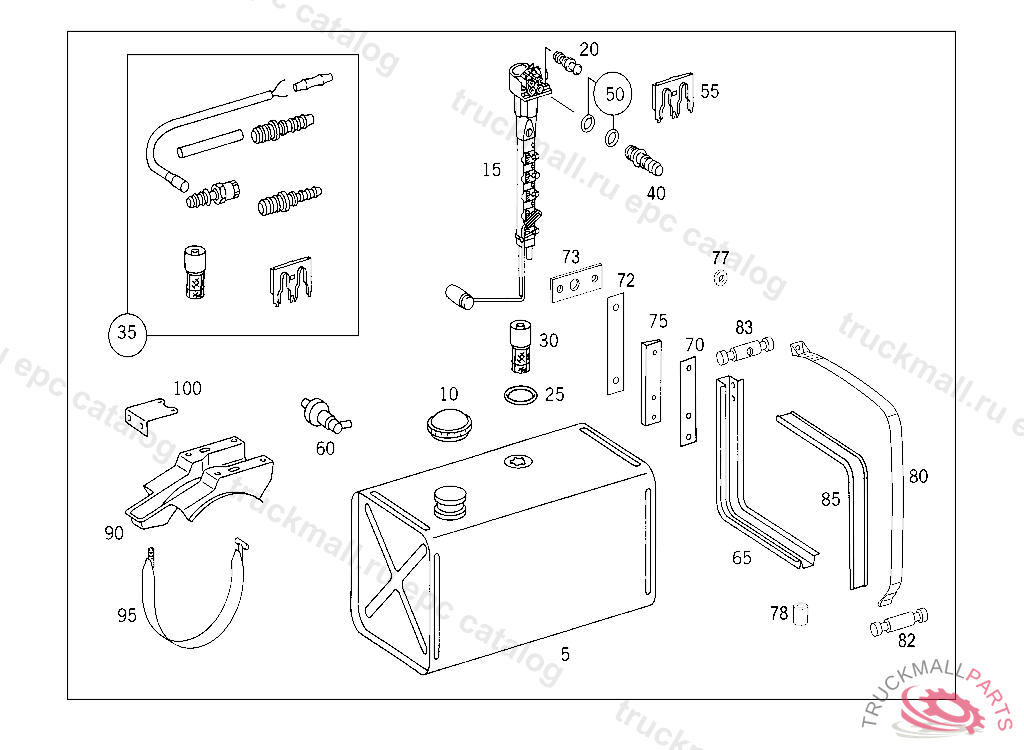

FUEL TANK390 L
5
FUEL TANK390 L
5
FUEL TANK , Replaced By: A6624702101, +001A0115426717
10
FILLER CAP ,K 057755
15
SENDER UNIT FUEL GAUGE,K 169123
15
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426717, +001A0005409917
20
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
25
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
30
FUEL STRAINER FUEL TANK,K 169122
30
FUEL STRAINER FUEL TANK,K 169123
35
INSTALLATION KIT INSTALLATION KIT FOR SUBSEQUENT INSTALLATION
40
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
40
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
40
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
50
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
55
LOCK FUEL GAUGE SENDER UNIT CONNECTION
60
VALVE (VENT VALVE), UP TO 10.96
65
SUPPORT FUEL TANK TO FRAME
65
SUPPORT , Replaced By: A6624701842
70
SHIM SUPPORT TO SIDE MEMBER
72
SHIM MOUNTING PARTS, SIMPLE PART-PLEASE HAVE SHOP MADE
73
SHIM TOOL BOX TO FRAME 8 MM
75
SHIM FUEL TANK TO FRAME
77
WASHER SUPPORT TO FRAME
78
SPACER TUBE CLAMP TO BRACKET
78
SPACER TUBE , Replaced By: A6013250453
80
STRAP , Replaced By: A6624700640
80
STRAP FUEL TANK TO CONSOLE
80
STRAP FUEL TANK TO CONSOLE
82
PIN STRAP TO SUPPORT 16X80 MM
83
PIN STRAP TO SUPPORT 25X80 MM
85
PAD , Replaced By: A3144750020
85
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
90
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
95
STRAP PARTICLE FILTER
100
BRACKET MOUNTING PARTS
100
BRACKET AIR RESERVOIR
