Поз.
Артикул
Описание

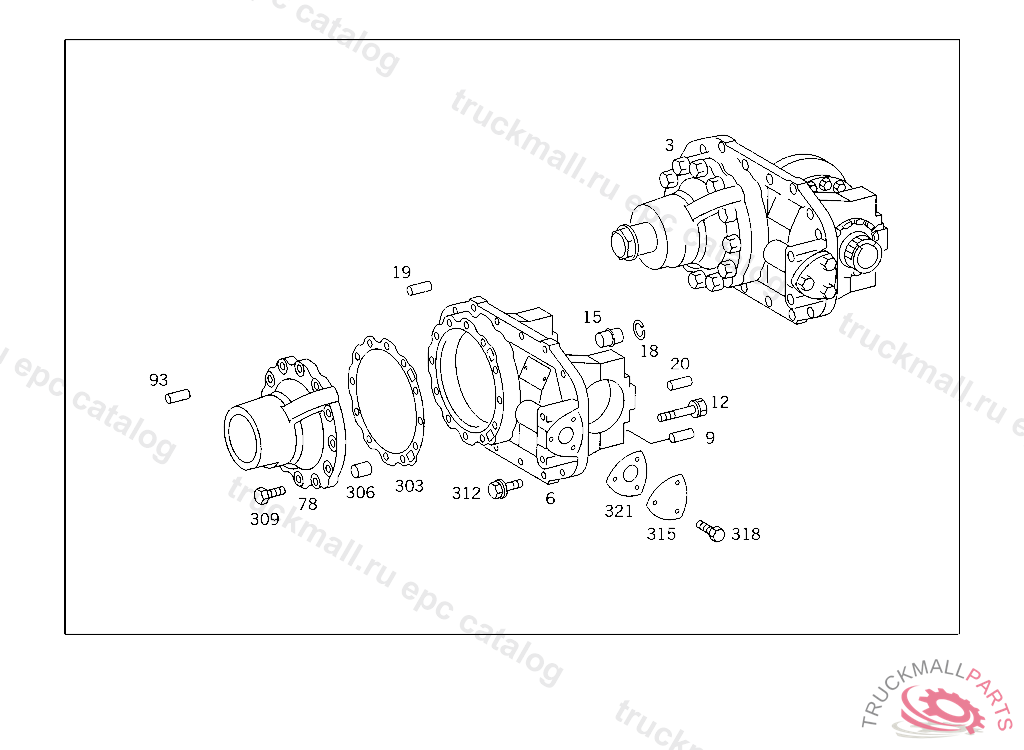

3
DIFFERENTIAL GEAR
6
AXLE HOUSING WITH BEARING CAP
6
AXLE HOUSING , Replaced By: A3883500262
9
CYLINDRICAL PIN , Replaced By: N000007008101
12
SCREW BEARING COVER TO AXLE HOUSING
15
PIN AXLE HOUSING
18
SNAP RING
303
SPACER WASHER AS REQUIRED 0.10 MM
303
SPACER WASHER AS REQUIRED 0.15 MM
303
SPACER WASHER PINION HOUSING, AS REQUIRED 0.20 MM
303
SPACER WASHER PINION HOUSING, AS REQUIRED 0.35 MM
303
SPACER WASHER AS REQUIRED 0.50 MM
303
SPACER WASHER AS REQUIRED 1.00 MM
303
SPACER WASHER PINION HOUSING, AS REQUIRED 1.50 MM
306
SEAL RING PINION HOUSING TO AXLE HOUSING
309
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
312
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
312
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
312
SCREW BRACKET TO BRACKET
312
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
315
COVER
318
SCREW , Replaced By: N304017008021
318
SCREW PIPE CLAMP
321
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
