Поз.
Артикул
Описание

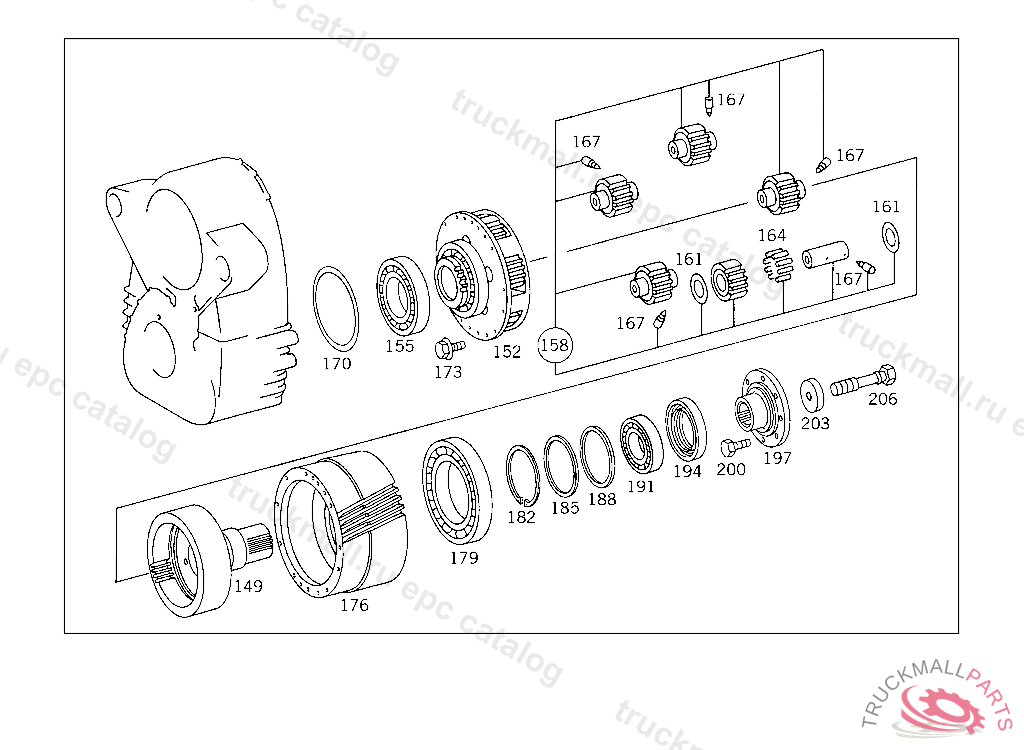

149
ANNULUS PLANETARY GEAR TRAIN
152
PLANETARY CARRIER REAR
152
PLANETARY CARRIER , Replaced By: A3892800038
155
TAPERED ROLLER BEARING FRONT PLANETARY CARRIER
155
TAPERED ROLLER BEARING PLANETARY CARRIER
155
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
155
TAPERED ROLLER BEARING ANNULUS, UP TO TRANSFER CASE 005833
158
PLANET GEAR PARTS KIT
161
WASHER PLANET GEAR
161
WASHER REAR PLANETARY CARRIER
164
NEEDLE PLANET GEAR
164
NEEDLE PLANET GEAR
167
SCREW PLANETARY CARRIER, FROM TRANSFER CASE 005834
170
SPACER WASHER COUPLING FLANGE TO P.T.O. 0.15 MM
173
SCREW PLANETARY CARRIER TO GEAR
173
SCREW , Replaced By: A3839900701
176
GEAR DRIVE
179
TAPERED ROLLER BEARING FRONT GEAR
179
TAPERED ROLLER BEARING FRONT GEAR
182
LOCK RING DISC SUPPORT
185
SPACER RING ANNULUS TO ANNULUS SUPPORT
188
SPACER WASHER COUNTERSHAFT,AS REQUIRED 0.10 MM
191
TAPERED ROLLER BEARING ANNULUS,FRONT
191
TAPERED ROLLER BEARING FRONT
191
TAPERED ROLLER BEARING BOTTOM REAR COVER
191
TAPERED ROLLER BEARING BOTTOM REAR COVER
194
SEAL RING FOLLOWER FLANGE
194
SEAL RING TRANSFER CASE OUTPUT TO REAR AXLE
194
SEAL RING , Replaced By: A0159976947
194
SEAL RING , Replaced By: A0159976947
197
COUPLING FLANGE
200
SCREW PROPELLER SHAFT TO FLANGE M 16X50
203
THRUST WASHER FOLLOWER FLANGE TO PROPELLER SHAFT
206
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
999
COUPLING FLANGE PLANETARY GEAR TRAIN
