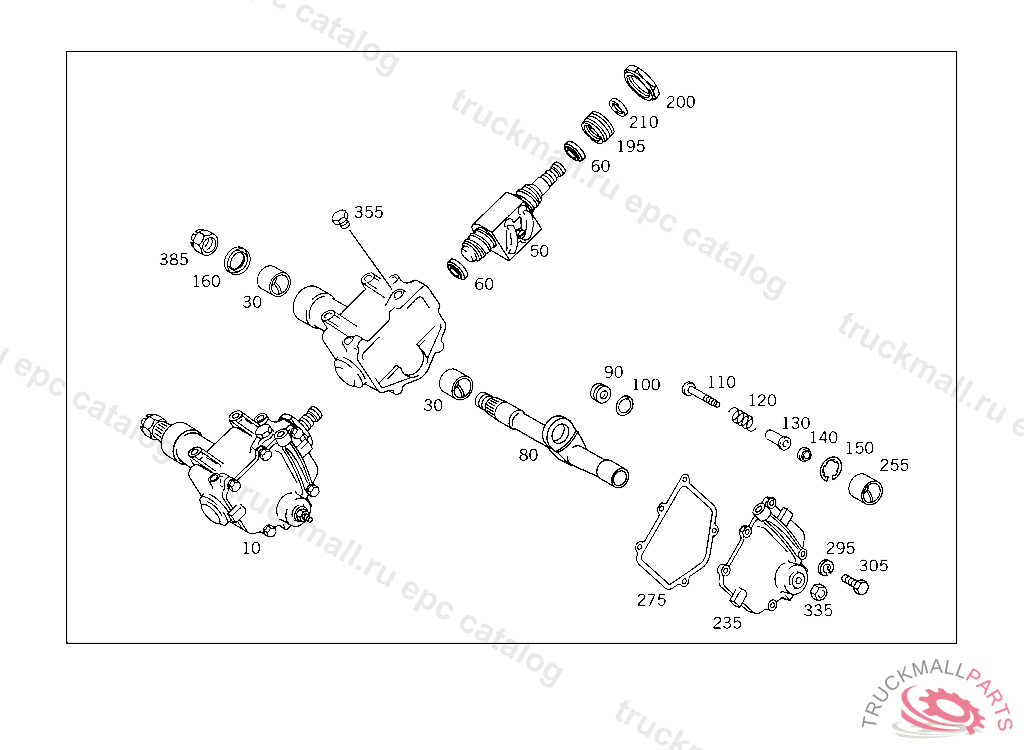

Поз.
Артикул
Описание
10
STEERING BOX ASSEMBLY LESS PITMAN ARM,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
30
BUSHING STEERING SHAFT BEARING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
50
STEERING WORM WITH STEERING NUT,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
60
TAPERED ROLLER BEARING. ROLLER BEARING STEERING NUT BEARING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
60
TAPERED ROLLER BEARING STEERING NUT BEARING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
80
STEERG. WORM SECTOR SHAFT ,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
90
BALL CUP
100
SNAP RING
110
SCREW
120
SPRING
130
THRUST PIECE
140
THRUST WASHER , UP TO CHASSIS: 023 009058
150
LOCK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049949241
160
SEAL RING STEERING WORM SECTOR SHAFT SEALING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
160
SEAL RING , UP TO CHASSIS: 011: 10/50,12/52 111381 011: 20/60,22/62 111334 007,008,015,017: 10/50,12/52 264453 007,008,015,017: 20/60,22/62 264100 060: 10/50,12/52 124096 060: 20/60,22/62 123757 062: 10/50,12/52 109096 062: 20/60,22/62 109078 FROM CHASSIS SEE UNIT SPARE PARTS LIST
160
SEAL RING STEERING WORM SECTOR SHAFT SEALING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
160
SEAL RING STEERING SHAFT TO BOX
195
SET COLLAR STEERING NUT BEARING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
200
NUT
210
SEAL RING
210
SEAL RING ,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
210
SEAL RING
210
SEAL RING ,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
210
SEAL RING
235
STEERING BOX COVER STEERING BOX,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
255
BUSHING STEERING SHAFT BEARING IN COVER,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
275
GASKET COVER TO STEERING BOX,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
295
LOCK WASHER DELIVERY AND SUCTION LINES TO PIPE CLAMP,1401150112256208
305
SCREW , Replaced By: N304017008034
335
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
355
SCREW PLUG AT BRAKE BOOSTER
385
NUT , 000 10/50,12/52 135448 083 10/50,12/52 002851 20/60,22/62 005848 102 10/50,12/52 121765 183 10/50,12/52 004858 20/60,22/62 009690
