Поз.
Артикул
Описание
5

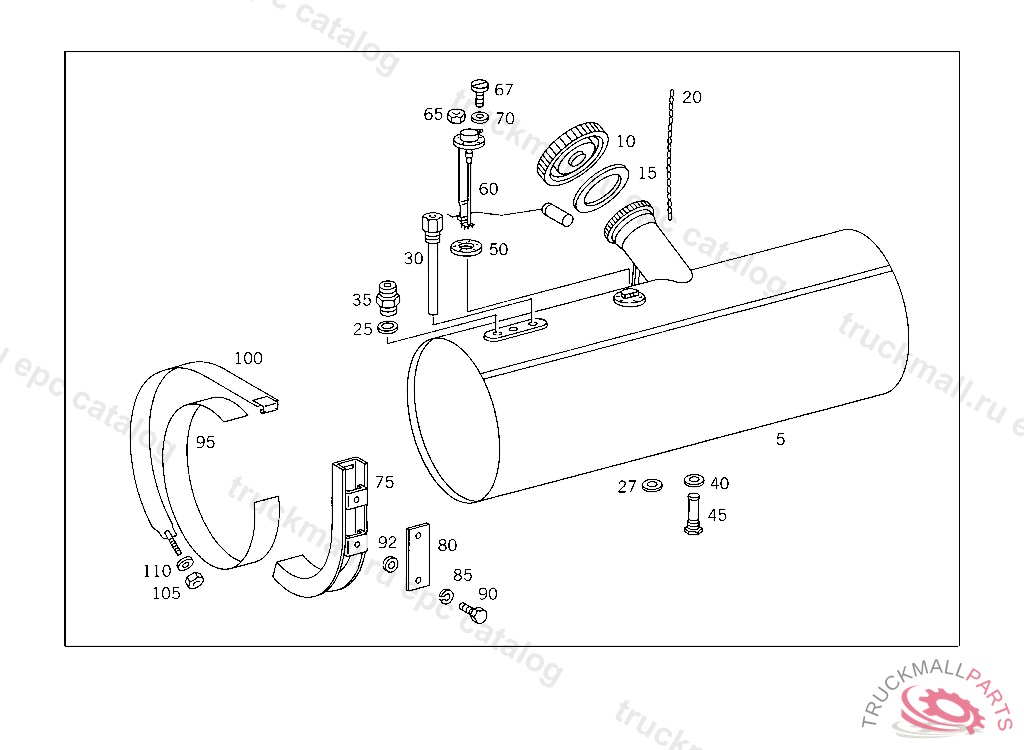

FUEL TANK WITH SENDER UNIT
5
FUEL TANK ,A 069205
10
FILLER CAP
10
FILLER CAP
10
FILLER CAP
15
SEAL RINGTO 351 470 00 05
15
DICHTUNG. SEAL RINGTO 312 470 12 05
15
SEAL RING
20
CHAIN FILLER CAP
25
SEAL RING CONNECTION: 1,4 719029
30
RISING PIPE ,A 069205
30
RISING PIPE
35
FITTING
40
SEAL RING
45
FUEL STRAINER AT TANK
45
FUEL STRAINER
45
FUEL STRAINER AT TANK
50
GASKET SENDER UNIT AND COVER TO FUEL TANK
50
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
60
SENDER UNIT , FROM CHASSIS A 002288
65
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
67
SCREW
70
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
75
SUPPORT WITH SEAL CONE
80
BASE SUPPORT TO SIDE MEMBER
80
SHIM CONSOLE TO SIDE MEMBER,KB860814
85
LOCK WASHER SUPPORT TO SIDE MEMBER
85
LOCK WASHER RAIL TO SUBSTRUCTURE
90
SCREW CABLE GUIDE TO SIDE MEMBER
92
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
95
RUBBER STRIP , Replaced By: A3459837391
100
STRAP , Replaced By: A3224700140
100
STRAP FUEL TANK TO SUPPORT
105
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
105
NUT STRAP TO SUPPORT
110
WASHER
999
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
999
FUEL TANK , Replaced By: A3414707401
999
FUEL TANK , Replaced By: A3414707401
999
LINE , Replaced By: A3414701464
999
BRACKET FUEL LINE
999
SENDER UNIT , Replaced By: A0005426317
