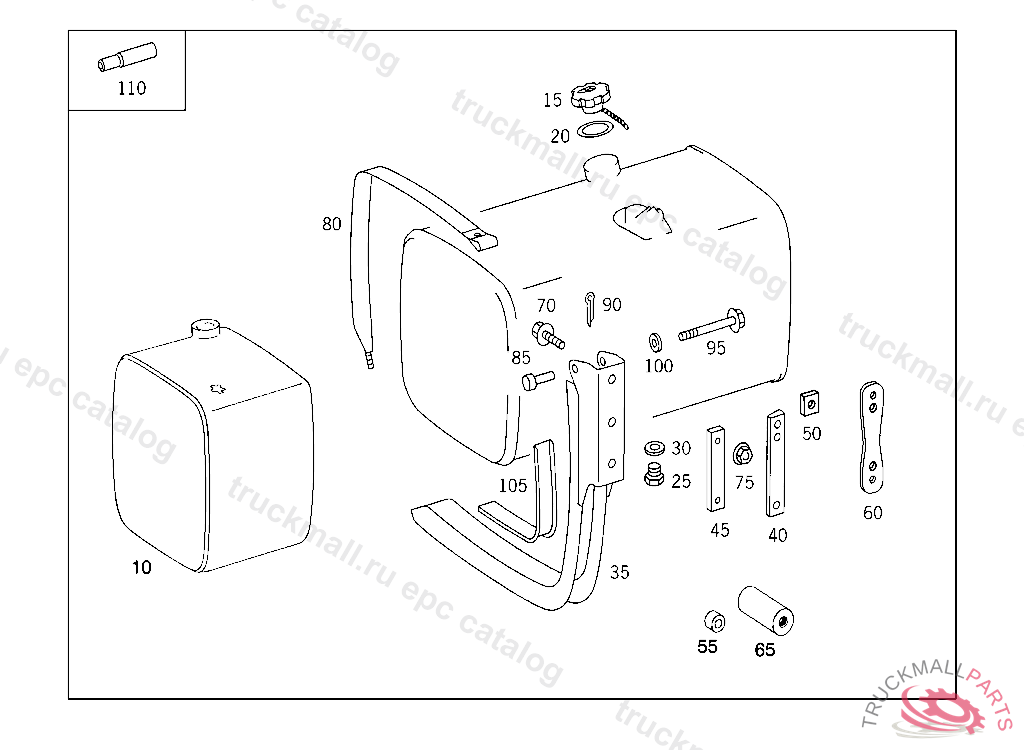

Поз.
Артикул
Описание
10
FUEL TANK RIGHT 290L
10
FUEL TANK RIGHT 295 L
10
FUEL TANK RIGHT 285L
10
FUEL TANK TO BE MOUNTED ON THE LEFT 300 L
15
FILLER CAP ,K 057755
20
SEAL RING
25
SCREW PLUG FUEL TANK
30
SEAL RING CLUTCH BOOSTER
35
SUPPORT FUEL TANK TO FRAME
35
SUPPORT FUEL TANK TO FRAME
35
SUPPORT FUEL TANK TO FRAME
40
SHIM MOUNTING PARTS
45
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
45
SHIM MOUNTING PARTS 25MM
45
SHIM MOUNTING PARTS 15MM
45
SHIM MOUNTING PARTS 8 MM
45
SHIM FUEL TANK TO FRAME 3MM
50
SHIM MOUNTING PARTS 7MM
55
BUSHING , Replaced By: A4403220150
55
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
60
PAD LATERAL UNDERRUN PROTECTION
65
BUSHING MOUNTING PARTS
70
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
70
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
70
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
70
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
70
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
70
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
70
SCREW SUPPORT TO FRAME M 14X1.5X160
70
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
70
SCREW BELL HOUSING TO TRANSMISSION M 18X1,5X170
70
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
70
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
70
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
70
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
75
NUT RETARDER HOUSING TO TRANSMISSION CASE
75
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
STRAP FUEL TANK TO CONSOLE
80
STRAP FUEL TANK TO CONSOLE
85
PIN STRAP TO SUPPORT 25X80 MM
85
PIN STRAP TO SUPPORT 16X80 MM
90
COTTER PIN STRAP TO SUPPORT
95
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
100
WASHER
105
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
110
HOSE RETURN LINE 8/13 MM,K 169122
