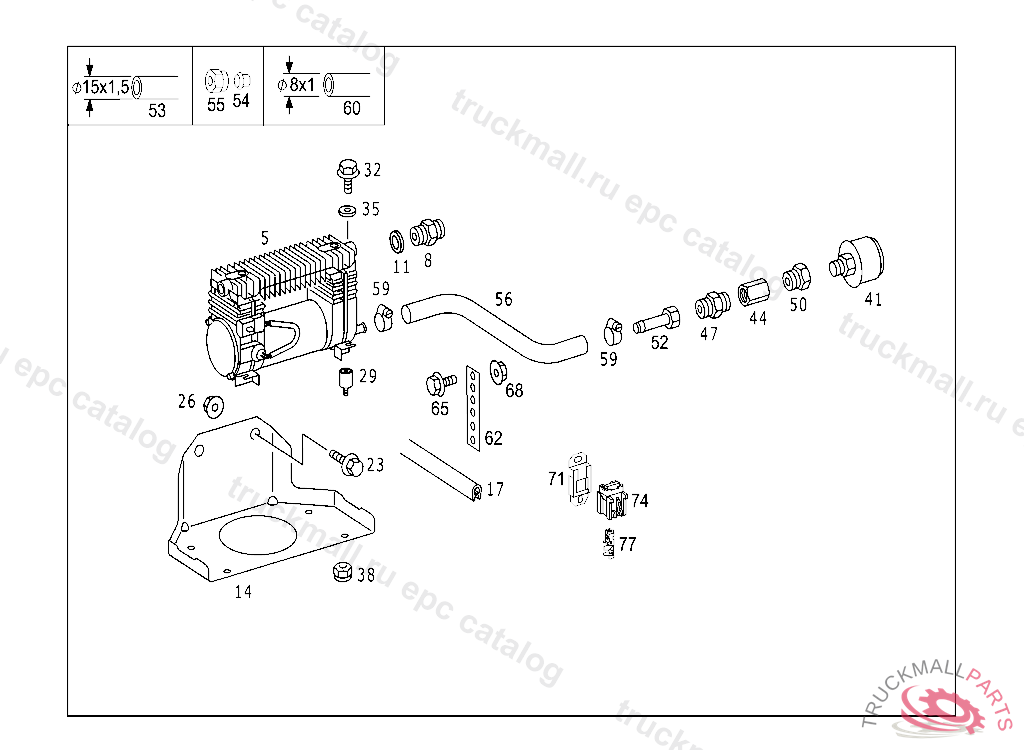

Поз.
Артикул
Описание
5
AIR COMPRESSOR ELECTRIC BOSCH24V
8
FITTING LINE CONNECTION, Replaced By: N000000006446
8
FITTING LINE CONNECTION
11
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
14
BRACKET AIR COMPRESSOR
17
EDGE GUARD SECTION AT TANK 1000 MM, ORDER BY THE METER5 3506525 495522
23
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
23
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
26
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
29
BUFFER AIR COMPRESSOR TO BRACKET
32
SCREW COVER PLATE TO COVER PLATE M 6 X 12
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
NUT SPRING-LOADED PUSH ROD
41
FILTER AIR COMPRESSOR
44
T-FITTING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
47
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
50
FITTING TWO-WAY VALVE "12",4 4121264 691315
52
LINE , Replaced By: A0004291401
53
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
54
GLAND LINE MOUNTING,5 9363655 812730
54
GLAND LINE CONNECTION
55
UNION NUT LINE CONNECTION
55
NUT COMPRESSED AIR LINES M22X1.5
56
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
59
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
60
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
62
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
65
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
68
NUT HORN TO BRACKET M8
71
BRACKET TO FUSE
74
FUSE WHITE 25 A
74
FUSE BEIGE 5 A
77
CONTACT SPRING REINFORCED 0.5-1.5MM
77
CONTACT SPRING REINFORCED 4.0 - 6.0 MM
77
CONTACT SPRING REINFORCED 2.0 - 3.0 MM
