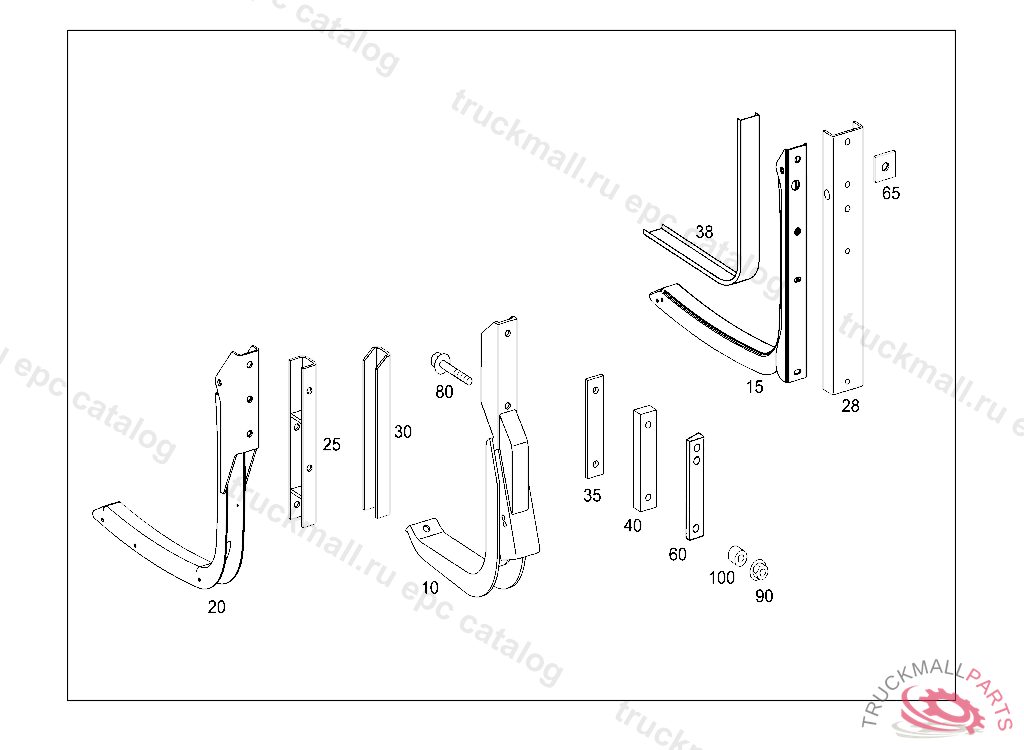

Поз.
Артикул
Описание
10
SUPPORT FUEL TANK TO FRAME
15
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT REAR TANK
25
BRACKET BATTERY/IMPLEMENT CARRIER TO FRAME LONGITUDINAL CARRIER, REAR
25
BRACKET BATTERY/IMPLEMENT CARRIER TO FRAME LONGITUDINAL CARRIER, FRONT
28
BRACKET LEFT CONSOLE TO FRAME
30
BRACKET FUEL TANK TO FRAME
35
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
35
PAD MOUNTING PARTS 5MM
35
SHIM SUPPORT TO FRAME 6MM
35
SHIM MOUNTING PARTS 20MM
38
PAD BRAKE ANCHOR 53 MM
40
SHIM MOUNTING PARTS 30MM
60
SHIM MOUNTING PARTS
65
BASE MOUNTING PARTS
80
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
80
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
80
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
80
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
80
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
80
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
90
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
100
BUSHING PLATE TO SUPPORT 10.00 MM
