Поз.
Артикул
Описание
5

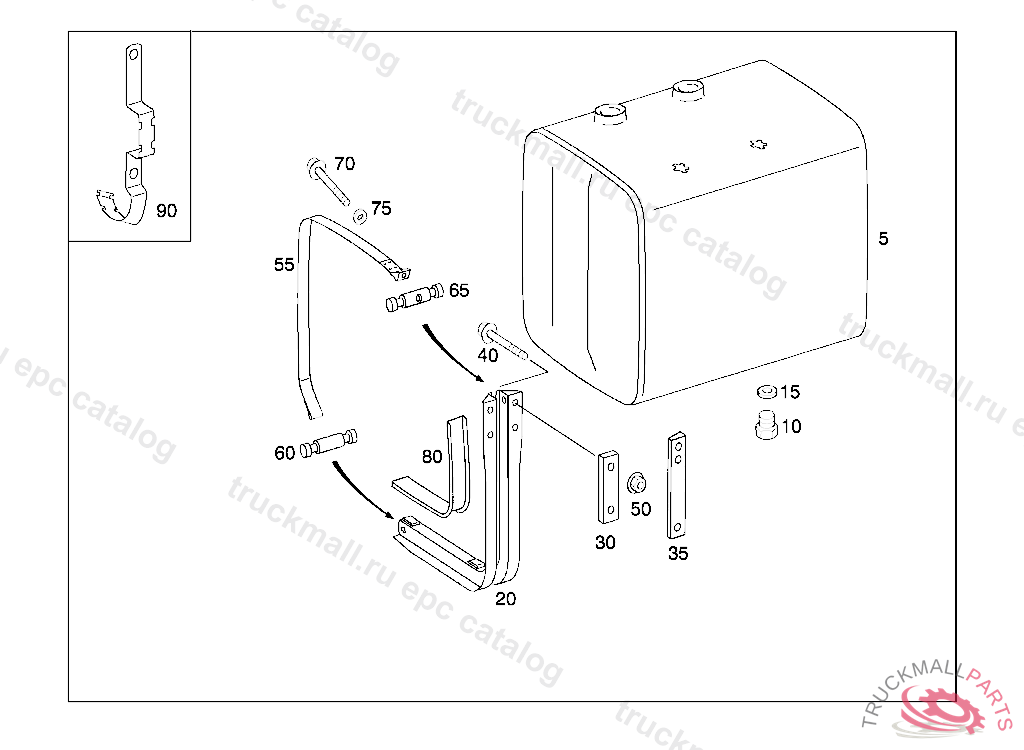

FUEL TANK TO BE MOUNTED ON THE RIGHT 190 L + 190 L
10
SCREW PLUG FUEL TANK
15
SEAL RING CLUTCH BOOSTER
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
30
SHIM SUPPORT TO FRAME 6MM
30
SHIM MOUNTING PARTS 20MM
30
SHIM FUEL TANK TO FRAME 3MM
30
SHIM MOUNTING PARTS 30MM
35
SHIM MOUNTING PARTS
40
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
40
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
40
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
40
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
40
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
40
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
55
STRAP FUEL TANK TO CONSOLE
60
PIN STRAP TO SUPPORT 16X80 MM
65
PIN STRAP TO SUPPORT 25X80 MM
70
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
70
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
75
WASHER
80
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
90
BRACKET MOUNTING PARTS
