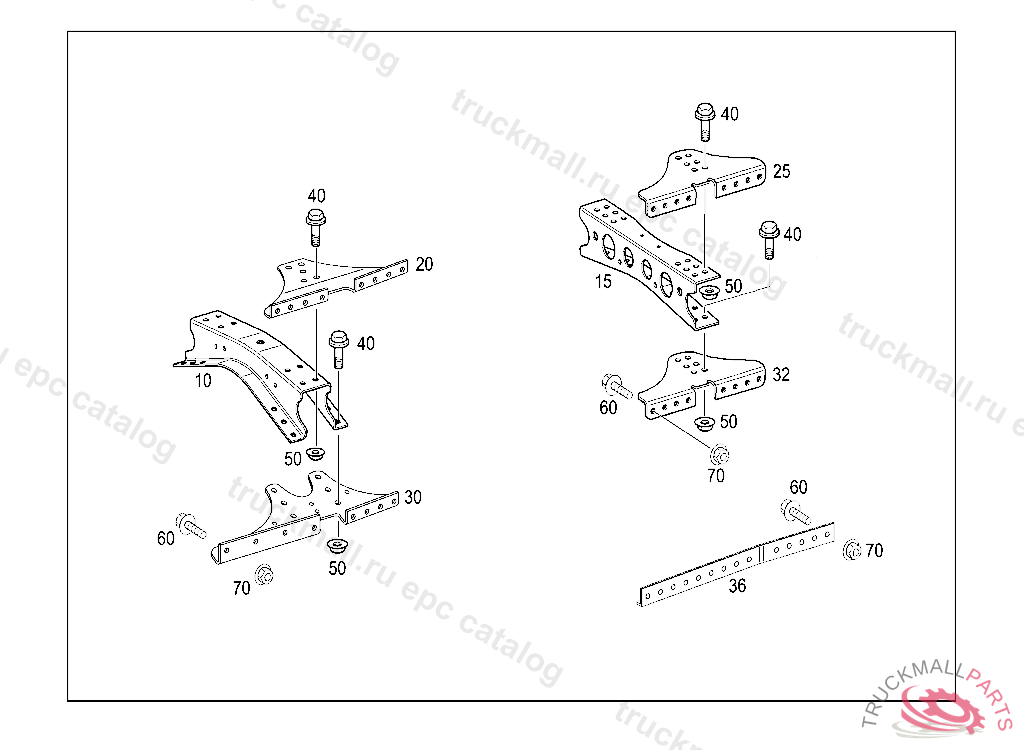

Поз.
Артикул
Описание
10
CROSS MEMBER SUBSEQUENT INSTALLATION
15
CROSS MEMBER SUBSEQUENT INSTALLATION
20
GUSSET PLATE LEFT TOP
20
GUSSET PLATE RIGHT TOP
25
GUSSET PLATE RIGHT TOP
25
GUSSET PLATE LEFT TOP
30
GUSSET PLATE RIGHT BOTTOM
30
GUSSET PLATE LEFT BOTTOM
32
GUSSET PLATE RIGHT BOTTOM
32
GUSSET PLATE LEFT BOTTOM
36
ANGLE BOTTOM LEFT
36
ANGLE BOTTOM RIGHT
40
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
40
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
50
NUT BRACKET TO SIDE MEMBER M12X1.5
50
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
60
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
60
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
60
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
60
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
60
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 60
70
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
