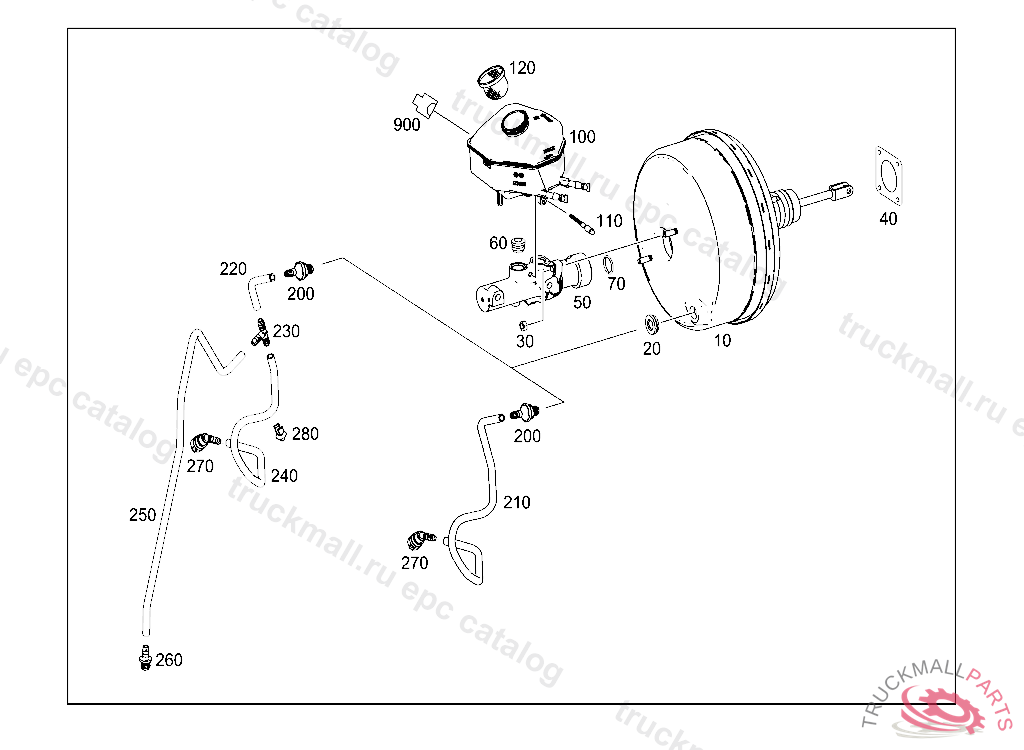

Поз.
Артикул
Описание
10
BRAKE BOOSTER BRAKE BOOSTER
20
SEALING GROMMET VACUUM LINE TO BRAKE BOOSTER, N 43098520090930 E 05718420110729 20140228
30
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
40
GASKET BRAKE BOOSTER TO PEDAL BEARING BRACKET
50
MASTER BRAKE CYLINDER
60
FEED-THROUGH GROMMET EXPANSION RESERVOIR TO MASTER CYLINDER
70
SEAL RING MASTER CYLINDER TO BRAKE BOOSTER
100
EXPANSION RESERVOIR , 20140228
110
TRUNNION SCREW RESERVOIR TO MASTER CYLINDER
120
STRAINER BRAKE FLUID RESERVOIR
200
VALVE AT VACUUM LINE
220
VACUUM LINE
230
T-FITTING
240
VACUUM LINE
250
VACUUM LINE
260
CONNECTOR BRAKE BOOSTER ASSEMBLY
270
CLUTCH. COUPLING VACUUM LINE ON ENGINE END
280
CLIP AT BRACKET
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
