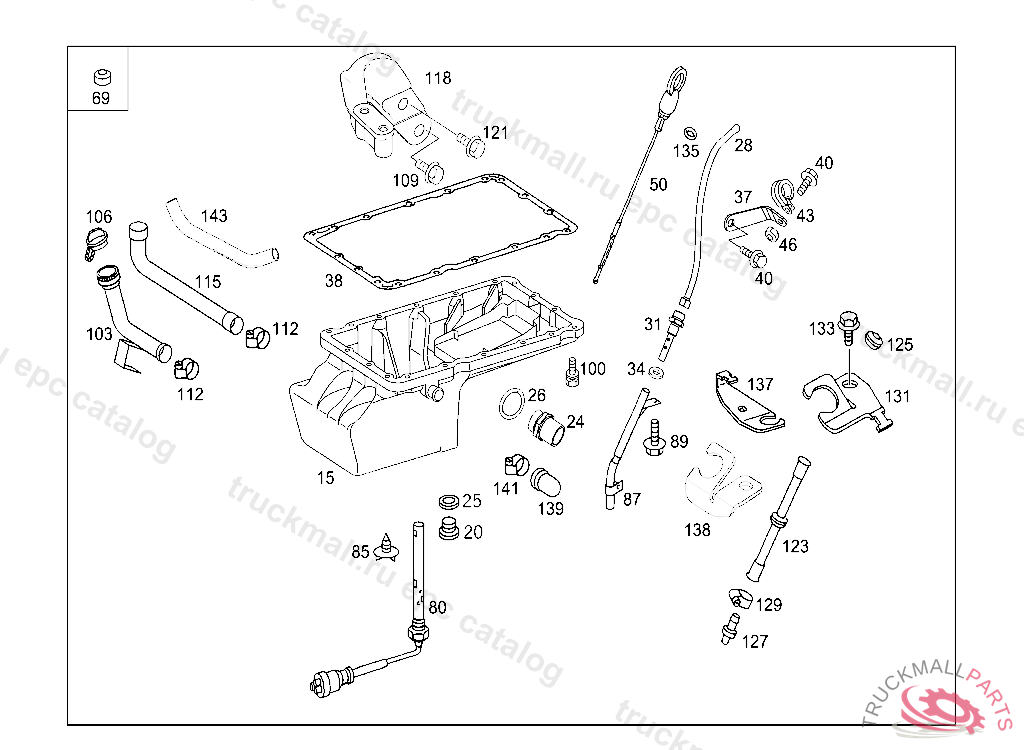

Поз.
Артикул
Описание
20
SCREW PLUG, FILLING CHARGE AIR PRESSURE M20X1.5
20
SCREW PLUG, FILLINGM36X1,5, Replaced By: N000908036001
20
SCREW PLUG, FILLINGM36X1,5
24
CONNECTION FITTING
25
SEALING RINGTO A957 490 05 14
26
SEAL RING SPEEDOMETER DRIVE
28
GUIDE TUBE CONNECTION OIL FILLER NECK
38
GASKET OIL PAN TO CYLINDER CRANKCASE TO A 904 010 08 13 / 31 13
50
OIL DIPSTICK
50
OIL DIPSTICK
80
SENDER UNIT OIL LEVEL SENDER UNIT
85
STOP PLUG. PLUG OIL LEVEL SENDER UNIT TO OIL PAN
87
GUIDE TUBE INSIDE ON CRANKCASE
89
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
100
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
103
OIL FILLER NECK CONNECTION OIL FILLER NECK
103
OIL FILLER NECK CONNECTION OIL FILLER NECK
112
CLAMP
115
HOSE CONNECTION OIL FILLER NECK
123
GUIDE TUBE OIL DIPSTICK,OUTSIDE
125
GROMMET
127
FITTING GUIDE TUBE TO CYLINDER CRANKCASE
129
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
131
BRACKET
133
SCREW , Replaced By: N000000000436
135
SEAL RING
