Поз.
Артикул
Описание

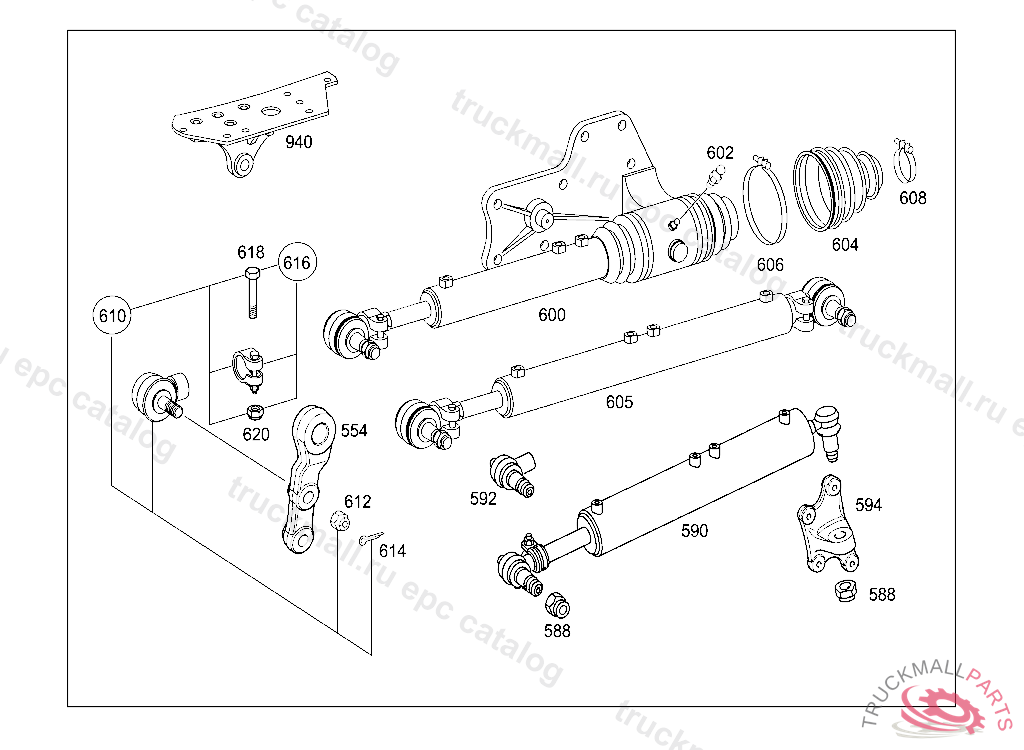

554
PITMAN ARM , TO BE ORDERED ONLY FROM MESSRS FA.PAUL-NUTZFAHRZEUGE GMBH&CO.KGD-94036 PASSAU DANZIGERSTRASSE 49
554
PITMAN ARM
554
PITMAN ARM , Replaced By: A9454630101
554
INTERMEDIATE ARM , Replaced By: A6624630201
554
PITMAN ARM
588
NUT DRAG LINK END M 24X1.5
590
CYLINDER (POWER CYLINDER),POWER STEERING
592
DRAG LINK ENDTO 000 466 27 92, 32 92, Replaced By: A0024600648
592
DRAG LINK END R.H. THREAD
594
BEARING BRACKET POWER STEERING CYLINDER
594
BEARING BRACKET POWER CYLINDER
600
CYLINDER SCOPE OF SUPPLY FOR COMPLETE REPLACEMENT
600
CYLINDER SCOPE OF SUPPLY FOR COMPLETE REPLACEMENT
602
GREASE NIPPLE
604
BOOT (POWER CYLINDER),POWER STEERING
605
CYLINDER (POWER CYLINDER),POWER STEERING
606
CLAMP COVERING TO CAB
608
CLAMP BOOT
610
DRAG LINK END SHORT 80 MM
612
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
614
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
616
CLAMP DRAG LINK END
618
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
620
NUT BATTERY CABLE
940
BRACKET POWER STEERING CYLINDER
940
BRACKET POWER STEERING CYLINDER
999
LINE , INCLUDED IN RANGE OF DELIVERY OF: A 000 460 10 00
999
BRACKET FILTER
999
FITTING LINE CONNECTIONS M18 X 1.5
999
FITTING LINE CONNECTIONS M16 X 1.5
999
HOSE RIGHT
999
HOSE RIGHT
999
BRACKET MOUNTING PARTS
999
BRACKET POWER STEERING CYLINDER
