Поз.
Артикул
Описание
65
68
CONNECTOR
71
BUSHING
77
PIN
80
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
81
83
HANDLE
86
PROTECTIVE CAP , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
89
PIN , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
92
PROTECTIVE CAP , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
95
COVER
98
SCREWM 10X20
101
104
SCREW SHIFT LEVER TO BRACKET M8X30
104
SCREW BRACKET TO CAB REAR PANEL M 8X20
107
NUT HORN TO BRACKET M8
110
SWITCH HAND BRAKE CONTROL
113
116
BRACKET POS. CABLE,XB209706
119
119
122
125
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
128
SCREW BRACKET TO CAB REAR PANEL M 8X20
128
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
131
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
134
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
137
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
140
CLAMP , Replaced By: N916016010211
141
LOOM TIE ELECTRIC CABLE MOUNTING
143
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
146
NUT BRACKET TO FIRE WALL
149
152
153
155
158
PIN
161
WASHER CLEARANCE LAMP ON BRACKET
164
CONNECTOR
167
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
170
SCREW BRACKET TO CAB REAR PANEL M 8X20
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
BRACKET BATTERY CABLE MOUNTING
999
BRACKET , Replaced By: A3812950440
999
999

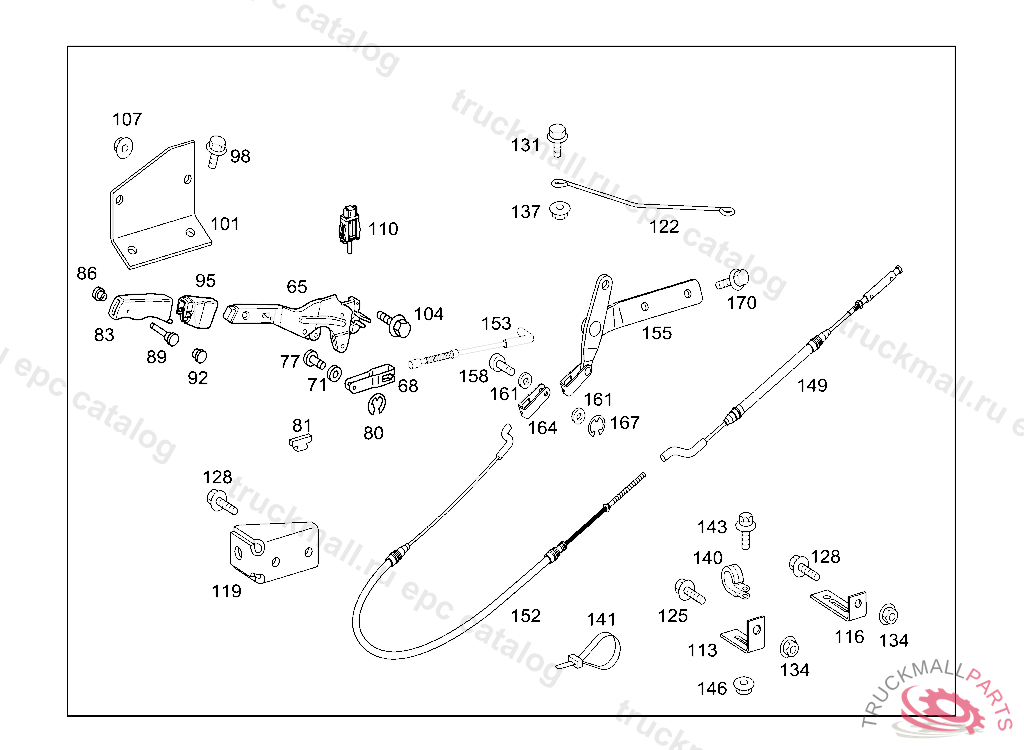

PARKING BRAKE
