Поз.
Артикул
Описание
5

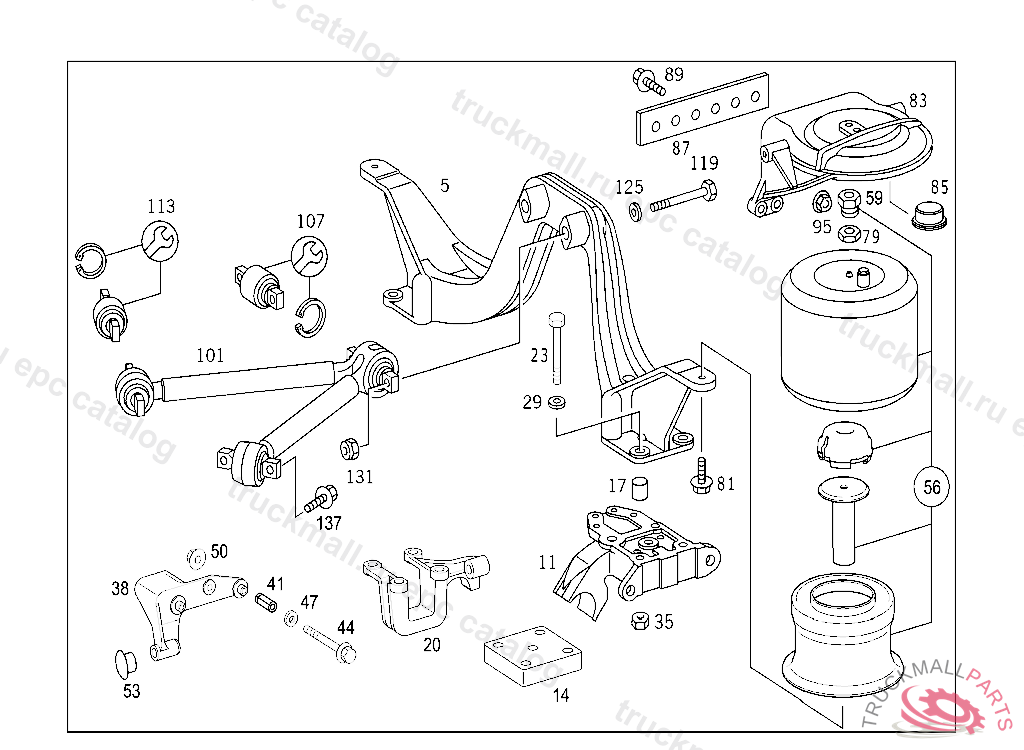

SUPPORT STEERED AXLE AND TRAILING AXLE
5
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9573270841, +008A0079906601, +004A6529900040
5
BEAM STEERED AXLE AND TRAILING AXLE,V 226382
11
SUPPORT LEFT,FOR TORSION BAR
11
BEARING BRACKET LEFT,FOR TORSION BAR,V 226382
11
BEARING BRACKET RIGHT,FOR TORSION BAR,V 226382
11
SUPPORT RIGHT,FOR TORSION BAR
17
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
17
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
20
BEARING BRACKET TORSION BAR AND SHOCK ABSORBER,RIGHT
20
BEARING BRACKET TORSION BAR AND SHOCK ABSORBER,LEFT
23
HEXAGON HEAD BOLT SUPPORT TO AXLE M22X1.5X180
23
SCREW SUPPORT TO AXLE M 22X1.5X250
23
HEXAGON HEAD BOLT. SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET
23
SCREW , Replaced By: N308765022008
29
WASHER SUPPORTING ARM TO CYLINDER CRANKCASE
35
HEXAGON NUT SUPPORT TO AXLE
38
BRACKET TORSION BAR AND SHOCK ABSORBER,RIGHT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
38
BRACKET TORSION BAR AND SHOCK ABSORBER,LEFT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
38
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9573200443
38
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9573200543
41
ROLL PIN BRACKET TO BEARING BRACKET
44
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
44
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
47
WASHER SUPPORT TO SIDE MEMBER
47
WASHER , Replaced By: N007349015002
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
53
PLUG BRACKET TO STRUT
56
AIR SPRING BELLOWS STEERED AXLE AND TRAILING AXLE
56
AIR SPRING BELLOWS STEERED AXLE AND TRAILING AXLE
56
AIR SPRING BELLOWS STEERED AXLE AND TRAILING AXLE
56
AIR SPRING BELLOWS STEERED AXLE AND TRAILING AXLE
59
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
59
SCREW. UNION SCREW LINE CONNECTION
79
NUT POWER CYLINDER TO BRACKET
81
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
81
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X55, IN CONJUNCTION WITH CODE: KQJ5 IN CONJUNCTION WITH CODE: 9J5Q
83
SUPPORT TOP,AIR SPRING BELLOWS
85
BOOT AIR SPRING BELLOWS SUPPORT
87
SHIM SUPPORT TO FRAME
89
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
89
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
89
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
89
HEXAGON HEAD BOLT MOUNTING PLATE TO SIDE MEMBER AND TO AUXILIARY FRAME M16X1.5X70
89
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
95
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
95
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
101
WISHBONE STEERED AXLE AND TRAILING AXLE, FOR COMPONENT PARTS SEE SPARE PARTS LIST
101
CONTROL ARM TRAILING AXLE, Replaced By: A9423501105
101
CONTROL ARM TRAILING AXLE
107
REPAIR KIT WITH BALL PIVOT,AXLE SIDE TO 942 350 11 05
107
REPAIR KIT WITH BALL PIVOT,AXLE SIDE TO 942 350 01 05
113
REPAIR KIT WITH BALL PIVOT,FRAME SIDE TO 942 350 11 05
113
REPAIR KIT WITH BALL PIVOT,FRAME SIDE TO 942 350 01 05
119
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
125
WASHER TRIANGULAR CONTROL ARM TO AXLE SUBFRAME,TOP
125
WASHER SPRING SUPPORT TO REAR AXLE TUBE
131
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
137
HEXAGON HEAD BOLT SUPPORTING ARM TO ENGINE REAR MOUNTING M18X1.5X50
137
HEXAGON HEAD BOLT TOWING EYE TO FRAME M18X1.5X80
