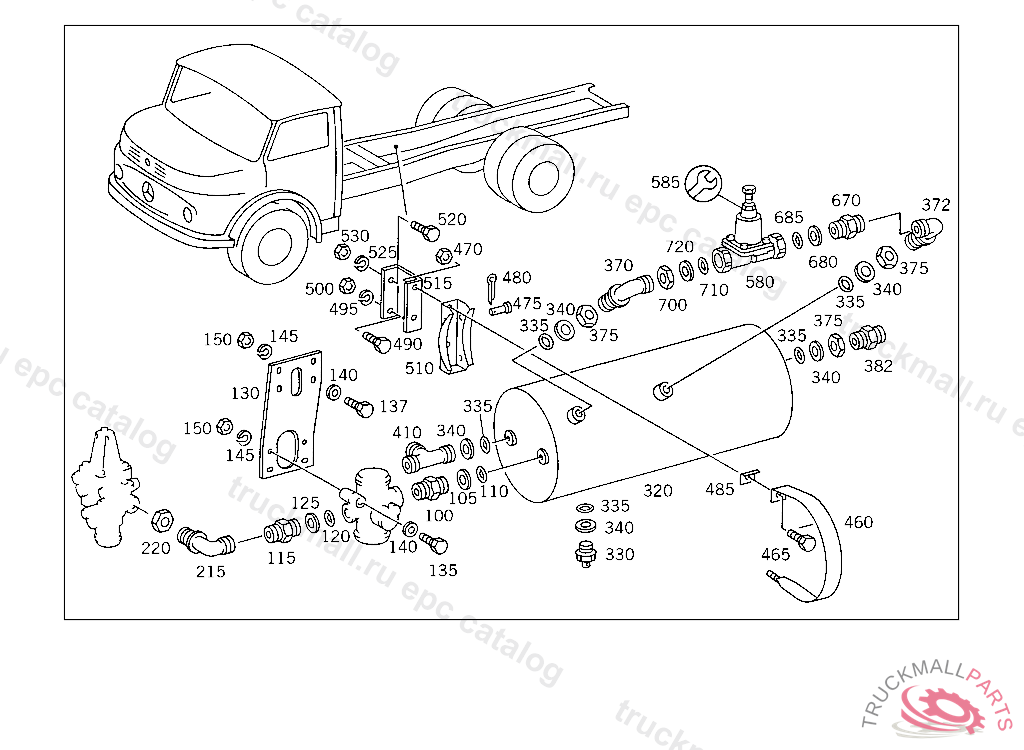

Поз.
Артикул
Описание
100
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
105
THRUST RING BUTT SCREW CONNECTION
110
SEAL RING , Replaced By: N007603012121
110
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
115
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
120
O-RING CHECK VALVE TO AIR RESERVOIR
125
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
125
THRUST RING CHECK VALVE TO AIR RESERVOIR
130
BRACKET PROTECTIVE VALVE
135
SCREW STRAP TO BRACKET
137
SCREW , Replaced By: N000933008337
137
SCREW , Replaced By: A0099900101
137
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
140
WASHER , Replaced By: N000125008443
140
WASHER EXHAUST MUFFLER TO STRAP
145
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
NUT
215
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
220
NUT CHECK VALVE TO AIR RESERVOIR
320
RESERVOIR OUTSIDE AIR RESERVOIR
330
VALVE DRAIN, Replaced By: A0004322407
330
VALVE DRAIN, Replaced By: A0004322407
330
VALVE. DRAIN VALVE DRAIN
330
VALVE. DRAIN VALVE DRAIN
330
VALVE DRAIN, Replaced By: A0004322107
330
VALVE DRAIN, Replaced By: A0004322107
330
VALVE DRAIN, Replaced By: A0004322107
330
VALVE DRAIN, Replaced By: A0004322407
330
VALVE. DRAIN VALVE DRAIN
330
VALVE DRAIN, Replaced By: A0004322107
330
VALVE DRAIN, Replaced By: A0004322107
335
O-RING CHECK VALVE TO AIR RESERVOIR
335
O-RING CHECK VALVE TO AIR RESERVOIR
340
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
340
THRUST RING CHECK VALVE TO AIR RESERVOIR
370
ELBOW FITTING , Replaced By: A0004294638
370
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
372
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
375
NUT CHECK VALVE TO AIR RESERVOIR
382
FITTING SHUTTLE VALVE,CONNECTION: "20"
410
T-FITTING COMPRESSED AIR VALVE CONNECTION
460
STRAP AIR RESERVOIR TO CONSOLE
460
STRAP , Replaced By: A3464305140
460
STRAP , Replaced By: A4375500142
465
SCREW BRACKET TO FRAME SIDE MEMBER
470
NUT BRACKET TO SUPPORT AND TO END PIECE
475
PIN STRAP TO CONSOLE
480
COTTER PIN STRAP TO CONSOLE 20 L
485
BASE STRAP
490
SCREW , Replaced By: N308676012012
490
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
495
LOCK WASHER FITTING TO BRACKET
500
NUT STRAP TO SUPPORT
510
CONSOLE AIR RESERVOIR
515
BASE AIR RESERVOIR
520
SCREW , Replaced By: N308676012012
520
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
525
LOCK WASHER FITTING TO BRACKET
530
NUT STRAP TO SUPPORT
580
VALVE (OVERFLOW VALVE),4 9119185 116581
580
VALVE (OVERFLOW VALVE),4 9119185 116581
585
REPAIR KITTO 001 429 52 44
585
REPAIR KITBOSCH
585
REPAIR KITTO 001 429 52 44
670
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
670
FITTING SHUTTLE VALVE,CONNECTION: "20"
680
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
680
THRUST RING CHECK VALVE TO AIR RESERVOIR
685
O-RING CHECK VALVE TO AIR RESERVOIR
700
NUT CHECK VALVE TO AIR RESERVOIR
710
O-RING CHECK VALVE TO AIR RESERVOIR
720
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
720
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SLEEVE LEAK LINE
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
UNION NUT
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT STRAP TO BRACKET
999
RING , Replaced By: A0005830296
999
SCREW PIPE CLAMP
999
FITTING , Replaced By: A0019972372
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING , Replaced By: A0019909871
999
FITTING AT LEFT SIDE MEMBER,4 347260
999
GLAND , Replaced By: A0019901667
999
NUT BALL PIVOT TO LEVER
999
SCREW STRAP TO SUPPORT,5 433389
999
SCREW , Replaced By: N304017008021
999
WASHER
999
SCREW PROTECTION PLATE TO BRACKET
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A6739950001
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BRACKET AIR RESERVOIR
999
BRACKET AIR DEHYDRATOR
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BASE AIR RESERVOIR TO CONSOLE
999
PLATE CONSOLE TO SIDE MEMBER
999
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
RESERVOIR , Replaced By: A3454308205
999
BRACKET LINE MOUNTING
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
T-FITTING AIR RESERVOIR,CONNECTION: "13"
999
SEAL CONE
999
SPRING
999
VALVE , Replaced By: A0024297244
999
VALVE , Replaced By: A0024297244
999
VALVE , Replaced By: A0014296144
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
SLEEVE , Replaced By: A0007630553
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0014294144
999
VALVE
999
LINE , Replaced By: A0005516456
999
VALVE
999
LINE , Replaced By: A0005516256
