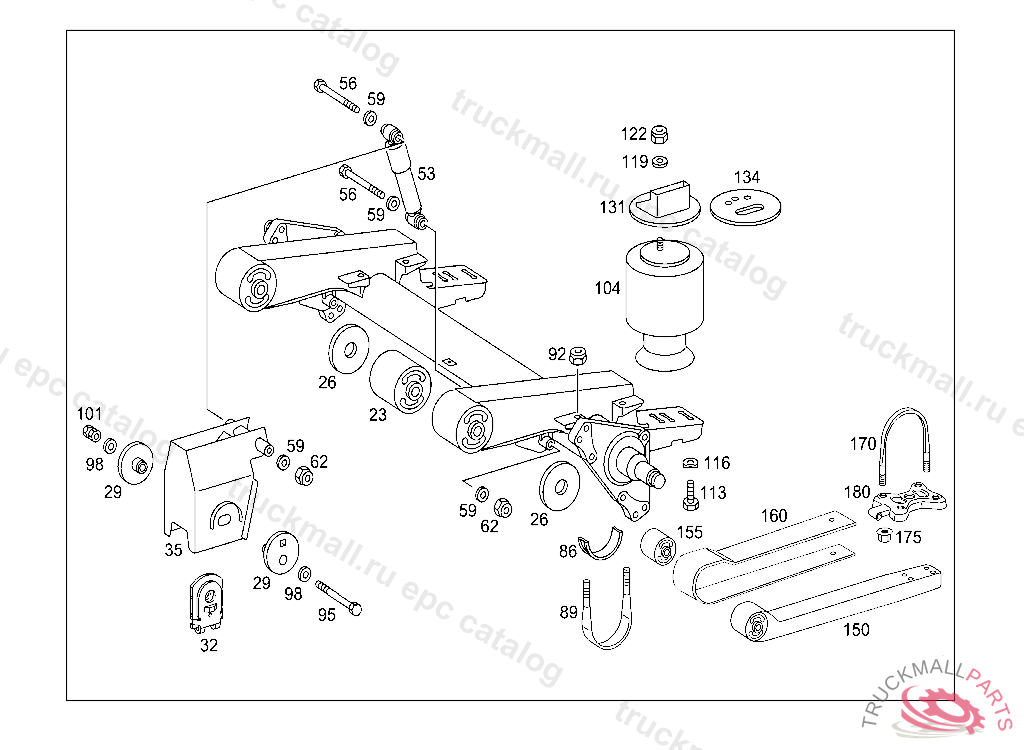

Поз.
Артикул
Описание
32
SCREENING PLATE LEFT AND RIGHT AXLE TUBES
35
BEARING BRACKET AXLE TUBE ON THE LEFT HENDRICKSON
35
CONSOLE
35
BEARING BRACKET AXLE TUBE ON THE LEFT HENDRICKSON
35
CONSOLE AXLE TUBE H285
35
CONSOLE AXLE TUBE ON THE LEFT HENDRICKSON
35
CONSOLE AXLE TUBE H280
35
BEARING BRACKET AXLE TUBE ON THE RIGHT HENDRICKSON
35
CONSOLE AXLE TUBE H230
35
BEARING BRACKET AXLE TUBE ON THE RIGHT HENDRICKSON
35
CONSOLE AXLE TUBE H225
35
CONSOLE AXLE TUBE ON THE RIGHT HENDRICKSON
35
BEARING BRACKET , Replaced By: A9463203178
35
CONSOLE AXLE TUBE
35
CONSOLE AXLE TUBE ON THE LEFT HENDRICKSON
35
CONSOLE AXLE TUBE ON THE RIGHT
53
SHOCK ABSORBERHENDRICKSON, Replaced By: A0063264300
53
SHOCK ABSORBER REAR AXLE HENDRICKSON, COMPONENT PARTS NOT AVAILABLE, Replaced By: A0063264200
53
SHOCK ABSORBER
53
SHOCK ABSORBERHENDRICKSON
53
SHOCK ABSORBER REAR AXLE WEWELER
53
SHOCK ABSORBERWEWELER
53
SHOCK ABSORBER REAR AXLE TENNECO, COMPONENT PARTS NOT AVAILABLE
56
HEXAGON HEAD BOLT STRUT TO BEARING BRACKET M20X2X200
56
SCREW SHOCK ABSORBER TO LOWER CONTROL ARM
56
SCREW STABILIZER TO BEARING BRACKET
56
HEXAGON HEAD BOLT. SCREWM 20X1,5X110
56
SCREW SHOCK ABSORBER TO BEARING BRACKET
59
WASHER SHOCK ABSORBER TO LOWER CONTROL ARM
62
NUT SHOCK ABSORBER TO BEARING BRACKET
62
NUT STEERING STOP
89
U-BOLT CONTROL ARM TO AXLE M22
92
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
95
SCREW BEARING BUSHING TO AXLE HOUSING
95
SCREW BEARING BUSHING TO AXLE HOUSING
101
NUT AXLE LIFTING ARM M27X2
101
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION HENDRICKSON
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION HENDRICKSON
104
AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION HENDRICKSON
113
HEXAGON HEAD BOLT. SCREW SUPPORT TO BASE FRAME
113
SCREW END PIECE TO EXHAUST PIPE M 12X30
113
SCREW RELEASE LEVER TO SHAFT
113
HEXAGON HEAD BOLT CONTROL ARM BRACKET ON AXLE M20X1.5X280
113
SCREWM10X160,H 410800
113
SCREW , Replaced By: N304017012020
116
LOCK WASHER , Replaced By: N912004012100
116
LOCK WASHER FITTING TO BRACKET
119
WASHER AIR SPRING BELLOWS AT BEARING BRACKET
119
WASHER SHIFTING SHAFT,BOTTOM
119
WASHER AIR SPRING BELLOWS AT BEARING BRACKET
119
WASHER , Replaced By: A0039904840
122
NUT , Replaced By: N304032020000
122
NUT
122
NUT AIR SPRING BELLOWS AT BEARING BRACKET
122
NUT TRAILER COUPLING TO REAR CROSS MEMBER
131
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H125MM
131
PLATE AIR SPRING BELLOWS AT BEARING BRACKET H50MM
131
PLATE AIR SPRING BELLOWS AT BEARING BRACKET 56, HENDRICKSON
131
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H100MM
131
PLATE AIR SPRING BELLOWS AT BEARING BRACKET 106, HENDRICKSON
131
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H200MM
131
PLATE AXLE LIFTING ARM
131
PLATE AIR SPRING BELLOWS AT BEARING BRACKET 156, HENDRICKSON
131
PLATE AIR SPRING BELLOWS AT BEARING BRACKET H70
131
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H70MM
131
STOP PLATE F BELLOWSH50
131
PLATE , Replaced By: A9463200335
131
PLATE , Replaced By: A9463200635
131
PLATE , Replaced By: A9463200835
131
PLATE , Replaced By: A9463200435
134
PLATE AIR SPRING BELLOWS AT BEARING BRACKET 6, HENDRICKSON
134
PLATE AIR SPRING BELLOWS AT BEARING BRACKET HENDRICKSON
134
PLATE AIR SPRING BELLOWS AT BEARING BRACKET H10
134
PLATEH5
150
CONTROL ARM
150
CONTROL ARM
150
CONTROL ARM
150
CONTROL ARM
150
CONTROL ARM
150
CONTROL ARM
150
CONTROL ARM
155
SPRING CONTROL ARM SSP.
160
CHECK STRAP
170
U-BOLT CONTROL ARM TO AXLE M22
175
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
180
PLATE CONTROL ARM TO AXLE
180
PLATE CONTROL ARM AT AXLE, RIGHT
180
PLATE CONTROL ARM TO AXLE
180
PLATE CONTROL ARM AT AXLE, RIGHT
180
PLATE CONTROL ARM TO AXLE
