Поз.
Артикул
Описание

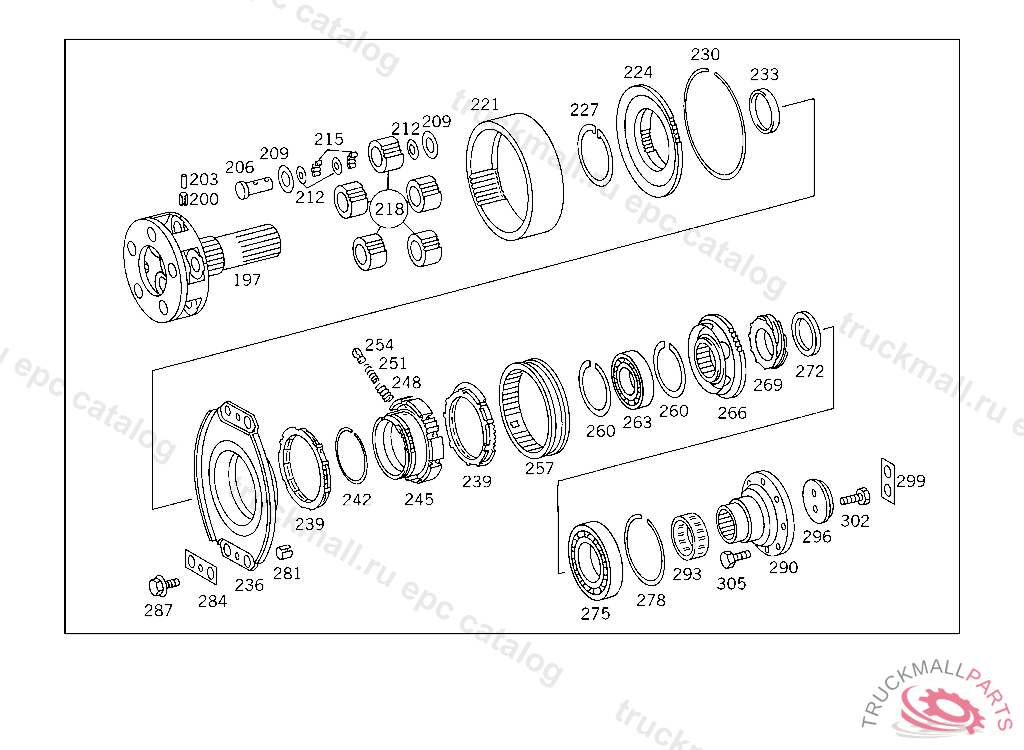

197
PLANETARY CARRIER ADDITIONAL GEAR CLUSTER
200
CLAMPING SLEEVE INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
203
CLAMPING SLEEVE (SHIFT LEVER VALVE)
206
SHAFT (PIVOT PIN)
209
SPACER WASHER
212
SPACER WASHER
215
NEEDLE PLANET GEAR
218
GEAR (SPUR GEAR), FROM TRANSMISSION 004950 WITH ZF P.T.O.`S A 684 260 40 05, ZF-NO.: 0501 006 279
218
GEAR SET , Replaced By: A0002620006
218
PLANET GEAR PARTS KIT
221
GEAR (ANNULUS)
224
WASHER ANNULUS TO PLANETARY CARRIER
227
SNAP RING ANNULUS TO PLANETARY CARRIER
230
SNAP RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019944135
230
SNAP RING ANNULUS TO PLANETARY CARRIER
233
SPACER RING PLANETARY CARRIER
236
SYNCHRONIZER CONE PLANETARY CARRIER
236
SYNCHRONIZER CONE PLANETARY GEAR CLUSTER
236
SYNCHRONIZER CONE , Replaced By: A0002621937
236
SYNCHRONIZER CONE , Replaced By: A0002621237
239
SYNCHRONIZER RING PLANETARY CARRIER
242
SNAP RING ANNULUS TO PLANETARY CARRIER
245
SYNCHRONIZER BODY PLANETARY GEAR CLUSTER
248
SPRING SPLITTER BOX
251
SPRING SPLITTER BOX
254
END PIECE SPLITTER BOX
254
FOLLOWER , Replaced By: A3362640239
257
SLIDING COLLAR SYNCHRONIZER BODY
257
SLIDING COLLAR , Replaced By: A0002623923
260
SNAP RING , Replaced By: A0019940335
260
SNAP RING AS REQUIRED 2.10 MM
260
SNAP RING AS REQUIRED 2.00 MM
260
SNAP RING AS REQUIRED 2.40 MM
260
SNAP RING AS REQUIRED 2.30 MM
260
SNAP RING AS REQUIRED 2.20 MM
260
SNAP RING AS REQUIRED 2.50
263
BALL BEARING REAR PLANETARY CARRIER
266
SYNCHRONIZER CONE PLANETARY GEAR CLUSTER
266
SYNCHRONIZER CONE , Replaced By: A0002621637
266
SYNCHRONIZER CONE , Replaced By: A0002621137
269
DRIVE GEAR SPEEDOMETER
272
SPACER WASHER PLANETARY CARRIER, AS REQUIRED 6.20 MM
272
SPACER WASHER ADDITIONAL GEAR CLUSTER, AS REQUIRED 6.60 MM
272
SPACER WASHER PLANETARY CARRIER, AS REQUIRED 6.00 MM
272
SPACER WASHER PLANET GEAR
272
SPACER WASHER PLANETARY CARRIER, AS REQUIRED 5.40 MM
272
SPACER WASHER PLANETARY CARRIER, AS REQUIRED 5.00 MM
275
BALL BEARING REAR PLANETARY CARRIER
278
SNAP RING ADDITIONAL GEAR CHLUSTER DRIVE SHAFT
281
CLAMPING SLEEVE SYNCHRONIZER CONE TO TRANSMISSION CASE COVER
284
LOCK SYNCHRONIZER CONE TO TRANSMISSION CASE COVER
287
SCREW SYNCHRONIZER CONE TO TRANSMISSION CASE COVER
290
COUPLING FLANGE P.T.O.
293
RING OUTPUT FLANGE,INSIDE,001875,5 K 90 GP003320,5 S 90 GP
296
THRUST WASHER. SEAL RING DRIVEN FLANGE TO DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
299
LOCK SCREW
299
LOCK , Replaced By: A3859941032
302
SCREW , Replaced By: N304017012020
302
SCREW END PIECE TO EXHAUST PIPE M 12X30
305
SCREWM 16X16X20X45
305
SCREW , Replaced By: A3959900501
