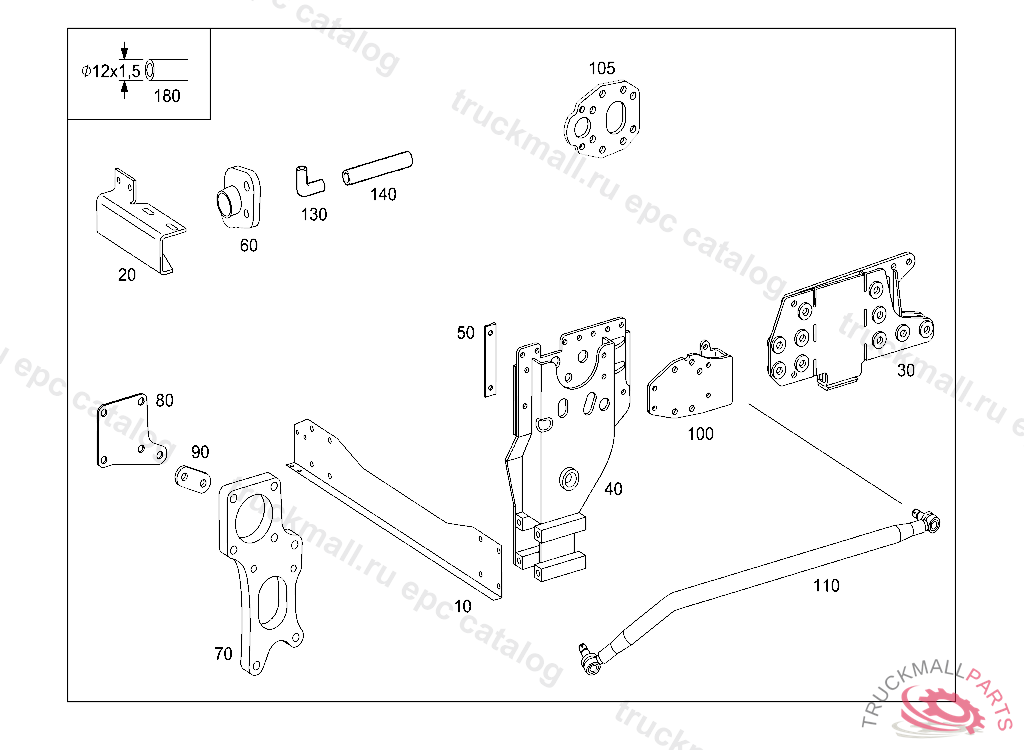

Поз.
Артикул
Описание
10
CROSS MEMBER FRONT AXLE
20
SUPPORT BOTTOM
30
PLATE RIGHT
30
PLATE LEFT
40
CONSOLE LONGITUDINAL CONTROL ARM TO FRAME, LEFT
40
CONSOLE LONGITUDINAL CONTROL ARM TO FRAME, RIGHT
40
CONSOLE. BEARING BRACKET LONGITUDINAL CONTROL ARM TO FRAME, RIGHT
50
PLATE LONGITUDINAL CONTROL ARM
60
BRACKET LEFT,FOR SHOCK ABSORBERS
70
SHIM MOUNTING PARTS
80
SHIM MOUNTING PARTS
90
SHIM MOUNTING PARTS
100
BRACKET LEFT
100
BRACKET RIGHT
105
BRACKET REVERSING LEVER TO FRAME
110
DRAG LINK FROM STEERING INTERMEDIATE BRACKET II TO STEERING INTERMEDIATE BRACKET III 1945MM, COMPONENT PARTS NOT AVAILABLE
130
HOSE FROM OIL TANK TO SUCTION LINE
140
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
140
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
180
TUBE FROM HIGH PRESSURE HOSE TO STEERING
180
LINE , Replaced By: A0005516156
180
LINE , Replaced By: A0005516156
180
LINE , Replaced By: A0005516156
180
LINE , Replaced By: A0005516156
