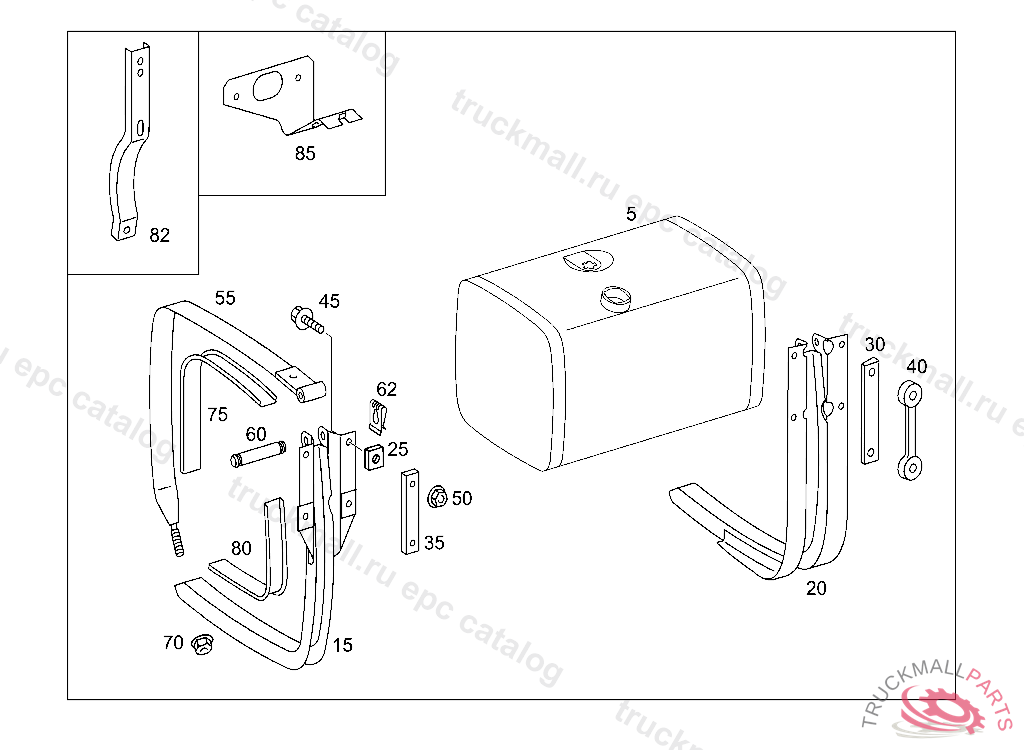

Поз.
Артикул
Описание
5
FUEL TANK RIGHT 990L
5
FUEL TANK LEFT 990L, Replaced By: A9344701101
15
SUPPORT FRONT RIGHT TANK
20
SUPPORT FUEL TANK TO FRAME
25
SHIM MOUNTING PARTS 7MM
30
SHIM MOUNTING PARTS
35
SHIM FUEL TANK TO FRAME 3MM
35
SHIM MOUNTING PARTS 30MM
35
SHIM MOUNTING PARTS 10 MM
40
SHIM APPARATUS SUPPORT TO FRAME SIDE MEMBER 31MM
40
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
45
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
45
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
45
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
55
STRAP FUEL TANK TO CONSOLE
60
PIN , Replaced By: A9444750074
60
PIN STRAP TO SUPPORT
62
CLIP RESERVOIR TO CAB FRONT PANEL
70
NUT STRAP TO SUPPORT M12X1.5
75
PAD STRAP 61 MM
80
PAD BRAKE ANCHOR 53 MM
82
BRACKET , Replaced By: A9454320440
82
BRACKET AIR RESERVOIR
85
BRACKET SIDE MARKER LAMP
