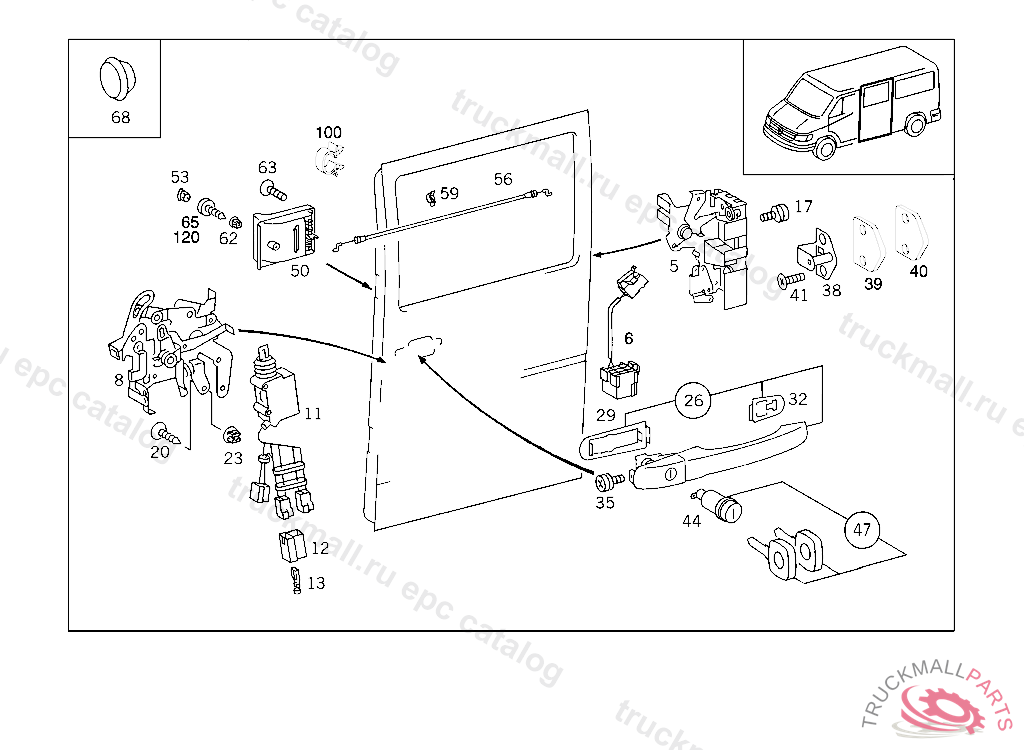

Поз.
Артикул
Описание
5
DOOR LOCK RIGHT LOADING COMPARTMENT SLIDING DOOR
5
DOOR LOCK SLIDING DOOR, STANDARD VERSION
6
SWITCH USED WITH CENTRAL LOCKING MECHANISM, RIGHT
6
SWITCH USED WITH CENTRAL LOCKING MECHANISM, LEFT
8
DOOR LOCK RIGHT
8
DOOR LOCK WITH ANTI-CHILD DEVICE,RIGHT
8
DOOR LOCK WITH ANTI-CHILD DEVICE,LEFT
8
DOOR LOCK LEFT
11
ELEMENT CENTRAL LOCKING MECHANISM
12
PIN BUSHING HOUSING BIPOLAR
13
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
13
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
17
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
20
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
23
LOCK LOCK TO DOOR
26
DOOR HANDLE
29
PAD
32
PAD
35
SCREW DOOR HANDLE TO DOOR
35
BOLT OIL LINE ATTACHMENT 7X16
38
LATCH B-PILLAR, Replaced By: A9737200031
38
STRIKER PIN. LATCH
40
PLATE STRIKER
41
SCREW B-PILLAR
44
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
47
TUMBLER WITH KEY, ANY LOCK,K 057755
50
INTERIOR HANDLE ASSEMBLY
53
CAP , NO.9051I I I
56
PULL INTERIOR HANDLE ASSEMBLY
59
CLAMP BOWDEN CABLE TO CAB
62
LOCK LOCK TO DOOR
63
SCREW INTERIOR HANDLE ASSEMBLY TO DOOR
65
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
68
EXPANSION PLUG SLIDING-TYPE LOADING DOOR
100
CLAMP BOWDEN CABLE TO CAB
120
SHEET METAL SCREW ANTINOISE CAPSULE TO CAB M 5.5X16
