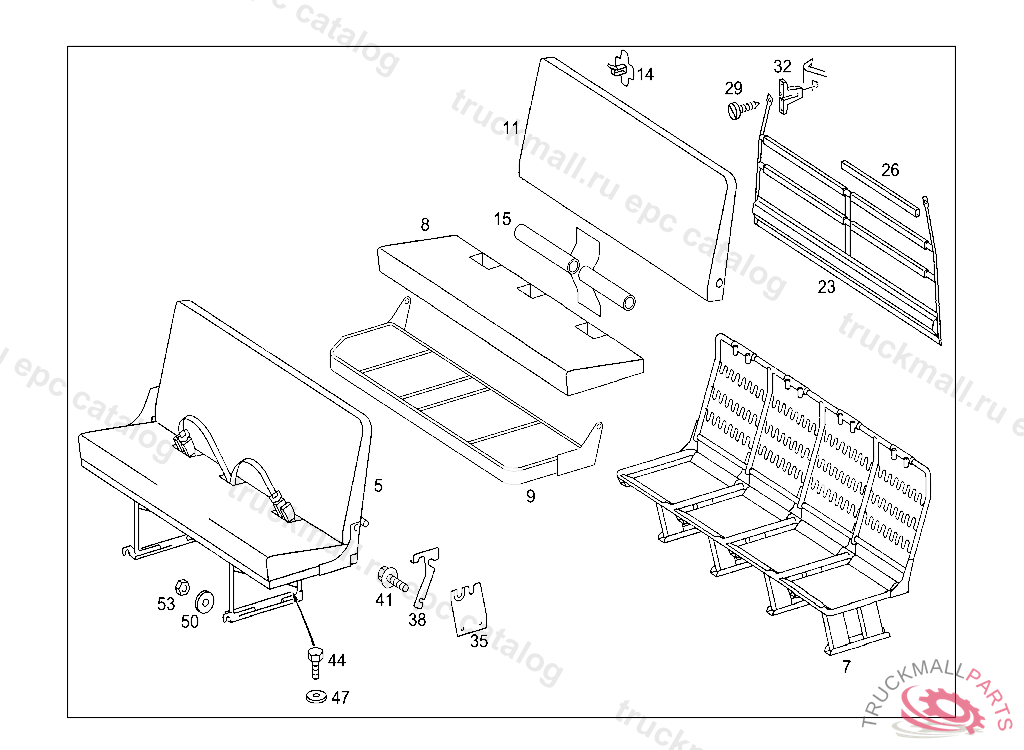

Поз.
Артикул
Описание
5
QUADRUPLE IMITATION LEATHER, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
5
QUADRUPLE FABRIC "SANTOS", NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
5
QUADRUPLE OCCUPANCY SEAT. QUADRUPLE IMITATION LEATHER
5
QUADRUPLE FABRIC "SANTOS", R 55142420030630
5
QUADRUPLE OCCUPANCY SEAT "VENICE" FABRIC
7
SEAT FRAMEWORK
8
SEAT CUSHION "VENICE" FABRIC, R 42378420020628542378420020628
8
SEAT CUSHION IMITATION LEATHER
8
SEAT CUSHION "SANTOS" FABRIC, R 42378520020628
9
FRAME SEGMENT BELOW SEAT CUSHION
11
BACKREST IMITATION LEATHER
11
BACKREST "SANTOS" FABRIC, R 42378520020628
11
BACKREST "VENICE" FABRIC, R 42378420020628542378420020628
14
BRACKET LONG 36 MM
14
BRACKET16 MM
15
REINFORCEMENT AT BACKREST
23
PAD
26
CASING
29
SCREW AIR DISTRIBUTOR TO AIR FILTER
32
LOCK. FUSE
35
BRACKET
38
LOCKING DEVICE
41
SCREW BRACKET MOUNTING M6 X 20
44
HEXAGON HEAD BOLT. SCREW COVER TO CASE M 10X35
47
WASHER BRACKET TO COVERING
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
WASHER BRACKET TO CAB REAR PANEL
53
HEXAGON NUT. NUT L.H. THREAD
