Поз.
Артикул
Описание

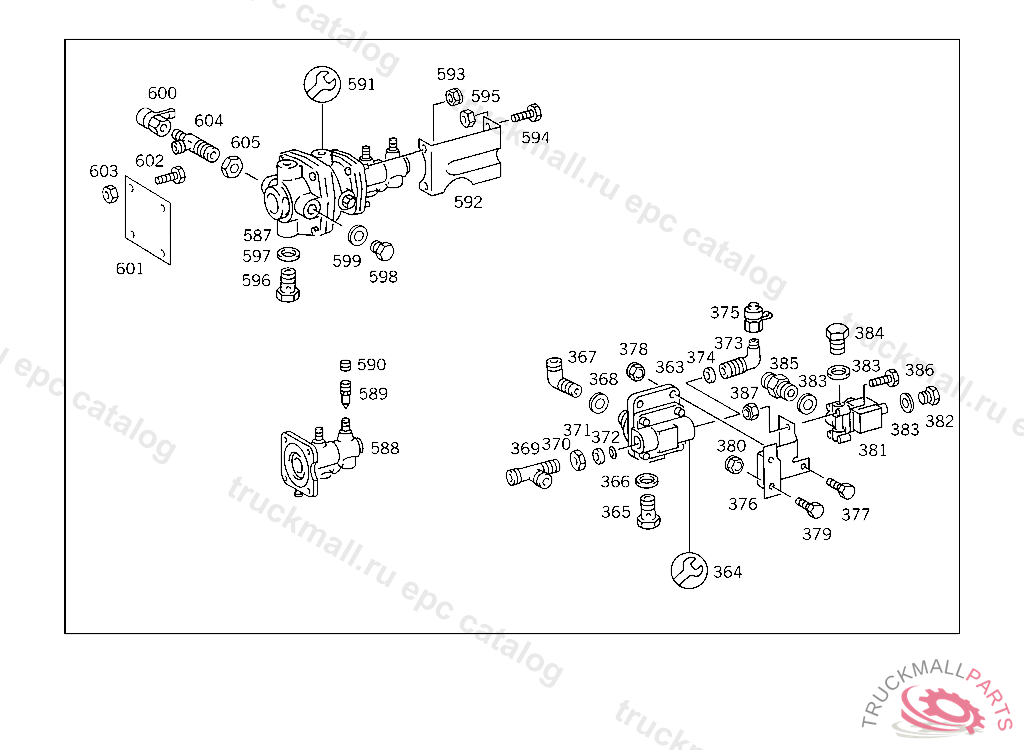

363
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
364
REPAIR KIT LOAD/NO-LOAD TO 000 431 33 18,000 431 58 13
365
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
366
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
367
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
368
SEAL RING LINE CONNECTION
369
T-FITTING RELAY VALVE,CONNECTION: "20"
370
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
371
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
372
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
372
SEAL RING
373
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
375
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
375
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
375
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
375
TEST CONNECTION
376
BRACKET LOAD/NO-LOAD VALVE
377
SCREW BRACKET TO CROSS CONNECTION STRUT
377
SCREW , Replaced By: N304017008034
378
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
378
NUT , Replaced By: N913004008001
379
SCREW BRACKET TO CROSS CONNECTION STRUT
379
SCREW , Replaced By: N304017008034
380
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
380
NUT , Replaced By: N913004008001
381
BLEEDER VALVE , 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
381
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004202755
381
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 411810 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004202755
382
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
383
SEAL RING LINE CONNECTION
384
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
384
SCREW PLUG , Replaced By: N000908012009
385
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
386
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
387
NUT PUMP TO BRACKET
387
NUT , Replaced By: N913004006001
587
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE BOSCH-SCHAEFER, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
587
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE WABCO-SCHAEFER, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
587
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE WABCO-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
587
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
588
WHEEL BRAKE CYLINDER SLAVE CYLINDER SCHAEFER,TO001 431 94 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
588
WHEEL BRAKE CYLINDER SLAVE CYLINDER TEVES,TO 001 431 35 05,001 431 43 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
589
VALVE CLUTCH SLAVE CYLINDER
589
VALVE , Replaced By: A3075530107
590
PROTECTIVE CAP , Replaced By: A0004217187
590
PROTECTIVE CAP ,5 962906
590
PROTECTIVE CAP , Replaced By: A0004217187
590
PROTECTIVE CAP , Replaced By: A0004210887
591
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
591
REPAIR KIT , Replaced By: A0004301109
591
REPAIR KIT VALVE DISC TO 001 431 43 05,002 431 05 05,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
591
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 35 05,001 431 94 05,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
591
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18
591
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18, UP TO SCHAEFER CHARACTERISTIC NO.489
591
REPAIR KIT SLAVE CYLINDER TO 007 420 21 18,TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
591
REPAIR KIT SLAVE CYLINDER TO 000 296 01 07
592
BRACKET BRAKE VALVE
593
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
593
NUT , Replaced By: N913004008001
594
SCREW BRACKET TO SIDE MEMBER
595
NUT STRAP TO BRACKET
595
NUT , Replaced By: N910113010000
596
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
597
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
600
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
600
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
600
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
600
TEST CONNECTION
601
BRACKET TEST CONNECTION
602
SCREW PIPE CLAMP
602
SCREW , Replaced By: N304017008021
603
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
603
NUT , Replaced By: N913004008001
604
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
605
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SLAVE CYLINDER , Replaced By: A0074202118
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
PROTECTIVE CAP , Replaced By: A0004210887
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
ELBOW FITTING
999
SPACER RING ,4 428462
999
RUBBER RINGTO 001 431 43 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SCREW
999
SWITCH SUPPLY PRESSURE,5 966147
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
BANJO UNION , Replaced By: N915052004006
999
BANJO UNION , Replaced By: N915052004019
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
NUT RETAINER , Replaced By: A3229900091
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
ELBOW FITTING COMPRESSED AIR LINE THRU FRAME, Replaced By: N000000006195
999
PLUG
999
VALVE , Replaced By: A0034291644
999
PROTECTIVE CAP
999
SEAL RING , Replaced By: A0009971548
999
SPRING
999
SWITCH TRAILING AXLE CONTROL
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
FITTING , Replaced By: N915059006000
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING RELAY VALVE,CONNECTION: "40",5 359430
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 001 431 43 05
999
SEAL RINGTO 000 431 46 13,4 478330
999
NUT RETAINER BRACKET MOUNTING
999
ANGLE LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
HUB , NOT USED
999
PIN , NOT USED
999
BRACKET BATTERY CABLE MOUNTING,5 193595
999
BRACKET LEFT FRONT BRAKE HOSE,4 677168
999
BRACKET RIGHT FRONT BRAKE HOSE,4 677168
999
ROD , Replaced By: N900331008420, +001A0004310667, +001N000934008010
999
ROD , Replaced By: N900331008420, +001A0004310667, +001N000934008010
999
BRACKET AIR RESERVOIR,4 418245
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
ADHESIVE FOIL GUIDE SIGN
999
ANGLE , Replaced By: A3604280243
999
THREADED UNION PRESSURE REGULATOR,CONNECTION: "3",4 2812115 148813
999
BRACKET , NOT USED
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW BRACKET TO BELL HOUSING
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N308676012040
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW ACCELERATOR PEDAL TO CAB M 6X25
999
FITTING , Replaced By: A0009907871
999
FITTING , Replaced By: A0019909871
999
SEAL RING CONTROL VALVE,5 093991
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SCREW PLUG 4/2-WAY VALVE
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW CLAMP TO BRACKET
999
INSULATING HOSE RED, ORDER BY THE METER
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0029979572
999
FITTING , Replaced By: A0019972372
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
CLIP , NOT USED
999
UNION NUT
999
HOLLOW SCREW LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
FITTING
999
CLAMP ,K 147121, Replaced By: N000000000319
