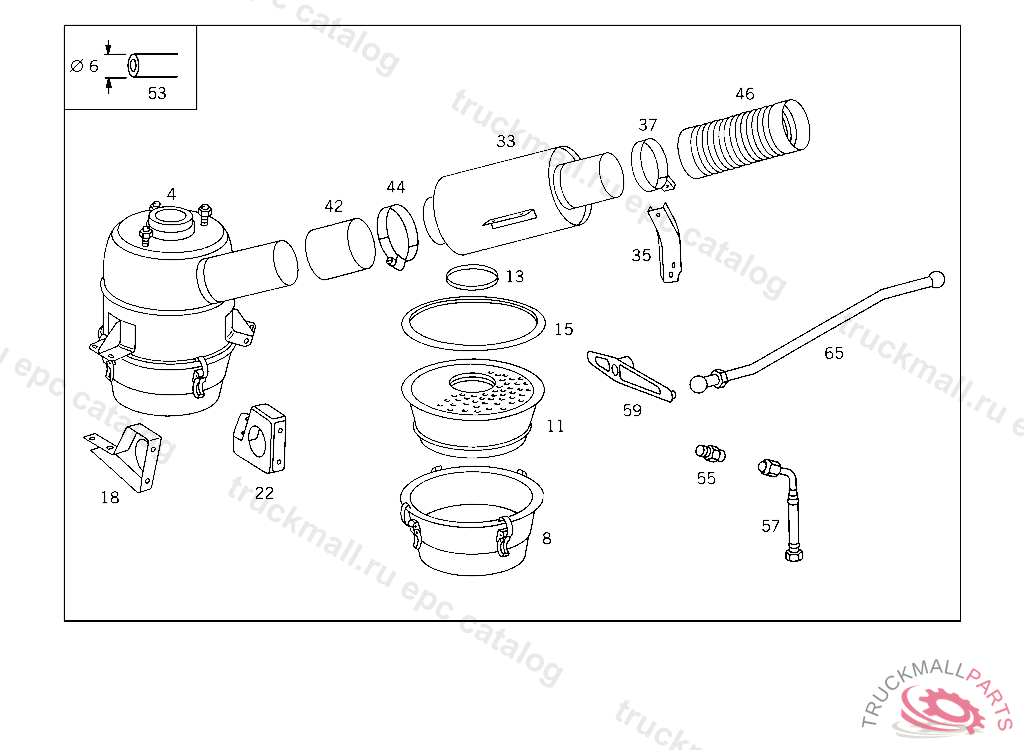

Поз.
Артикул
Описание
4
AIR CLEANER
8
FILTER BOWL
11
ELEMENT
13
GASKET INSIDE
15
GASKET OUTSIDE
18
BRACKET FRONT
22
BRACKET REAR
33
AIR CLEANER , Replaced By: A0080944902
33
MUFFLER ,4 716109
35
BRACKET ON AIR CLEANER FITTING
37
CLAMP AIR INTAKE PIPE TO BRACKET
42
HOSE , Replaced By: A3529972882
42
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE 100 MM
42
HOSE ON AIR CLEANER FITTING
44
LOOM TIE , Replaced By: A0009979990
44
LOOM TIE , Replaced By: N916018110000
44
CLAMP , Replaced By: A0059971490
44
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
44
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
46
HOSE , Replaced By: A0000947382
46
HOSE FROM AIR INTAKE PIPE TO ENGINE
53
LINE , Replaced By: A0004296201
53
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
55
CONNECTION FITTING , Replaced By: A0039979172
55
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
57
HOSE PRESSURE GAUGE
59
LEVER ,4 117724
59
LEVER ,4 117724
65
ROD SPRING TO CAB
999
CLAMP , Replaced By: N000000000674
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT
999
SCREW CONSOLE TO SIDE MEMBER
999
NUT STRAP TO SUPPORT
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW BRACKET TO BELL HOUSING
999
CLAMP HOSE 70-90X13 MM
999
SPACER RING
999
SHIM CAB LEAF SPRING TO CAB
999
LEVER CONTROL
999
WASHER BATTERY CASE TO SIDE MEMBER
999
AIR CLEANER
999
AIR CLEANER
999
LOOM TIE , Replaced By: N916018070000
999
LOOM TIE , Replaced By: N916017070000
999
SNAP RING
