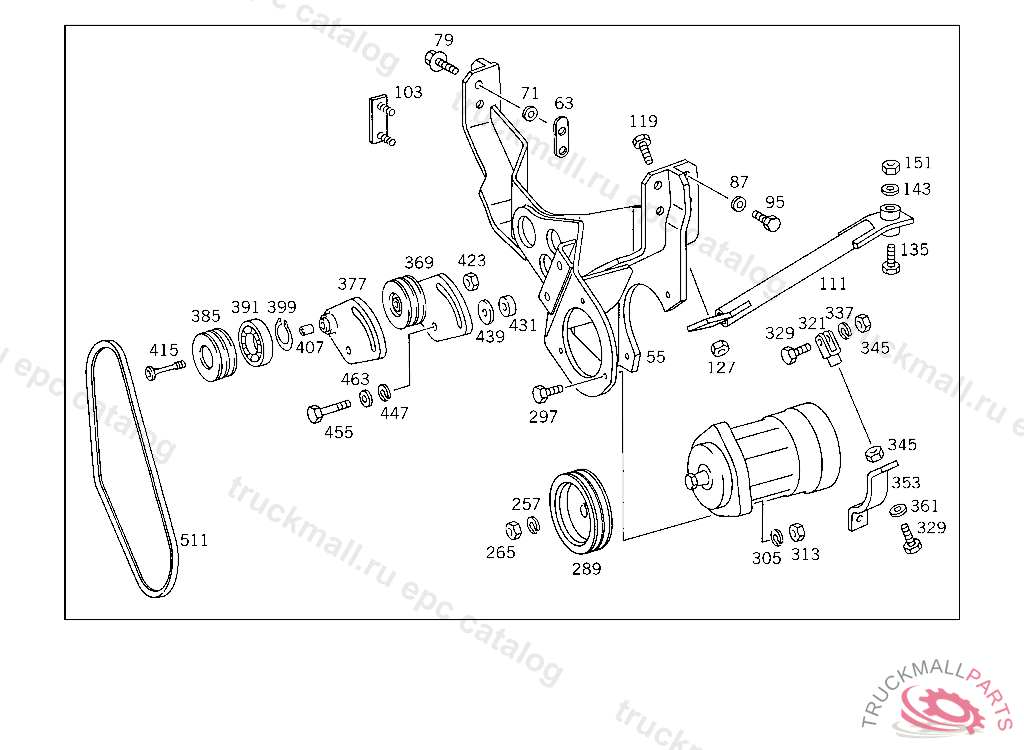

Поз.
Артикул
Описание
55
CONSOLE HYDRAULIC PUMP
63
SHIM SUPPORT TO FRAME 0.40 MM
63
SHIM SUPPORT TO FRAME 1.50 MM
71
WASHER
79
SCREW SUPPORT TO FRAME
87
WASHER
95
SCREW SUPPORT TO FRAME
103
PLATE ,282636 TO BE ADAPTED DURING ASSEMBLY
103
PLATE ,282636 TO BE ADAPTED DURING ASSEMBLY
111
BRACKET HYDRAULIC PUMP CONSOLE
119
SCREW , Replaced By: N304017010002
119
SCREW BRACKET TO SIDE MEMBER
127
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
135
SCREW , Replaced By: N308765014006
135
SCREW SUPPORT TO SIDE MEMBER M 14X90
143
WASHER , Replaced By: N000125015019
143
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
151
NUT BRACKET TO ENGINE
257
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
265
NUT SPARE WHEEL CARRIER
289
PULLEY HYDRAULIC PUMP
297
SCREW HYDRAULIC PUMP CONSOLE
305
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
313
NUT
321
YOKE , Replaced By: A0009961401
321
YOKE R.H. THREAD
329
SCREW REAR EXHAUST PIPE TO MUFFLER
337
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
345
NUT , Replaced By: N304032010002
345
NUT
353
BRACKET HYDRAULIC PUMP CONSOLE
361
WASHER , Replaced By: N000125010532
361
WASHER RADIATOR TO RUBBER MOUNTING
369
PULLEY BELT TENSION READJUSTMENT
377
BRACKET TIGHTENER PULLEY
385
PULLEY TIGHTENER PULLEY
391
BALL BEARING PULLEY
399
LOCK RING SHIFT LEVER BEARING
407
SPACER TUBE BELT TENSION READJUSTMENT
415
SCREW BELT TENSION READJUSTMENT
423
NUT COVER PLATE
431
SPACER TUBE BRACKET TO TRANSMISSION,5 724671
439
SPACER WASHER AS REQUIRED 1.00 MM
439
SPACER WASHER AS REQUIRED 2.00 MM
439
SPACER WASHER AS REQUIRED 3.00 MM
447
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
455
SCREW RADIATOR M 10X45
463
WASHER STRUT TO CROSS MEMBER
511
V-BELT HYDRAULIC PUMP
999
SPACER TUBE DELIVERY AND SUCTION LINES TO BRACKET
999
SCREW , Replaced By: N900170012027
999
SCREW , Replaced By: N900170012026
999
SCREW , Replaced By: N900170012022
999
PIPE HYDRAULIC PUMP SUCTION PIPE 22 MM
999
PIPE HYDRAULIC PUMP DELIVERY PIPE 15 MM
999
FAN SHROUD RADIATOR
999
RUBBER MOUNTING FRONT, 156153
999
BRACKET AT CROSS MEMBER,D 030553
999
FAN SHROUD , FROM CHASSIS 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
999
BRACKET RIGHT, 156152
999
BRACKET LEFT, 156152
999
FAN HOUSING
999
ENGINE CROSS MEMBER , Replaced By: A3093100126
999
CROSS MEMBER RADIATOR, FROM IDENT NO. 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SPRING FOR VALVE DISC, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SPRING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
ROLLER BEARING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
LINE , Replaced By: A0005516256
999
HOUSING HYDRAULIC PUMP, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
WASHER CASE,REAR, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
