Поз.
Артикул
Описание
2

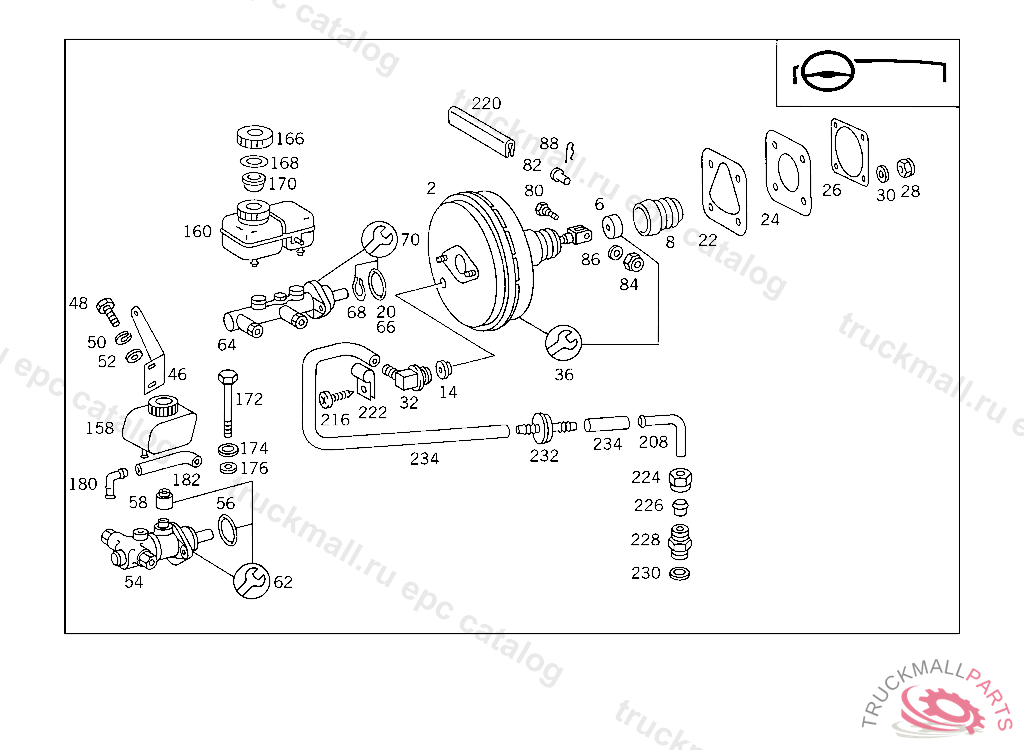

BRAKE BOOSTER ASSEMBLY ,533351
2
BRAKE BOOSTER ASSEMBLY ,145737 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.530029 DELIVER ADDITIONALLY:1X 001 990 03 71
2
BRAKE BOOSTER ASSEMBLY , Replaced By: A0024304830, +001A0019900371
6
DAMPING RING , FROM CHASSIS005298
8
PROTECTIVE CAPTO 001 430 21 30
8
PROTECTIVE CAPTO 001 430 36 30,002 430 27 30
14
SEAL RING ,145737 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
20
SEAL RING
22
GASKET BRACKET TO FIRE WALL,707221
24
GASKET BRACKET TO FIRE WALL,707221
26
GASKET
28
NUT , Replaced By: N913004008001
30
WASHER EXHAUST MUFFLER TO STRAP
30
WASHER , Replaced By: N000125008443
32
ELBOW FITTING SHIFTING CYLINDER
36
REPAIR KIT
36
REPAIR KIT
46
BRACKET BRAKE BOOSTER ASSEMBLY
48
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
48
SCREW , Replaced By: N304017008016
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
52
WASHER EXHAUST MUFFLER TO STRAP
52
WASHER , Replaced By: N000125008443
54
BRAKE MASTER CYLINDER ,145737-162733 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
56
SEAL RING
58
PLUG
62
REPAIR KITTO 002 430 97 01 , 002 430 98 01,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
64
BRAKE MASTER CYLINDER
64
BRAKE MASTER CYLINDER , 10/50 FROM CHAS.145737-162733 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660, 145697,145701 CONTINUED SEE FOOTNOTE 20
66
SEAL RING
68
LOCK RING CONVERTER PRESSURE MAINTAINING
68
LOCK RING
70
REPAIR KIT BRAKE MASTER CYLINDER
70
REPAIR KITTO 002 430 64 01,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
80
SCREW PUSH ROD TO BRAKE PEDAL,197183534563
82
STRAINER
82
STRAINER
82
PIN BRAKE PEDAL TO BRAKE BOOSTER
84
NUT PUMP TO BRACKET
84
NUT , Replaced By: N913004006001
84
NUT , Replaced By: N913004008001
86
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
88
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
158
RESERVOIR BRAKE FLUID
160
RESERVOIR , 10/50 FROM CHAS.145737-162733 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660, 145697,145701 CONTINUED SEE FOOTNOTE 20
166
FILLER CAP BUTTRESS THREAD
168
SEAL RING42X21.5 MM
168
SEAL RING
170
STRAINER
172
SCREW BRAKE MASTER CYLINDER,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
174
PROTECTIVE CAP BRAKE MASTER CYLINDER,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
176
SEAL RING BRAKE MASTER CYLINDER,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
180
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
182
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
208
LINE FROM VACUUM PUMP TO CHECK VALVE,360786
208
PIPE FROM VACUUM PUMP TO CHECK VALVE,360785
216
SHEET METAL SCREW BRACKET TO CAB
220
EDGE GUARD SECTION FRONT PANEL,339827 ORDER BY THE METER
222
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
224
NUT. UNION NUT LINE CONNECTION
224
UNION NUT LINE CONNECTION, Replaced By: N000000006239
226
CUTTING RING. GLAND LINE CONNECTION
226
SEAL CONE LINE CONNECTION
226
GLAND , Replaced By: A0019901967
228
FITTING DELIVERY LINE TO PUMP
228
FITTING AT BRAKE CYLINDER, 674067
228
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
230
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
230
SEAL RING LINE CONNECTION
232
VALVE (CHECK VALVE)
232
VALVE , Replaced By: A0004316107
232
VALVE (CHECK VALVE)
234
LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY,360786
234
LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY, ORDER BY THE METER360785
234
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
999
PIN , Replaced By: A4252920074
999
SCREW
999
REPAIR KIT , Replaced By: A3144200092
999
PLATE , Replaced By: A3145860142
999
PAWL , Replaced By: A3145860142
999
HOSE , Replaced By: A6039970482
999
BRACKET , Replaced By: A3184923641
999
BRACKET , FROM CHASSIS005298
999
ROD , Replaced By: A3104260430
999
BRAKE CABLE , Replaced By: A3104200985, +002A3094270544
999
ROD , 556499 EXCEPT FOR 553210,556146
999
SUPPORT , Replaced By: A3104200568
999
NUT TWO-WAY VALVE "12",4 4121264 691315
999
LINE WITH BEAD,10 MM
999
LINE , Replaced By: A3104320038
999
SHIM CONSOLE TO CAB,246594-556499
999
COVER COVERING TO CAB
999
SHIM , Replaced By: A3094270284
999
SCREW , FROM CHASSIS 145737-197182 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701., Replaced By: A3094260171, +001N000125006421
999
ROD ,246594 556499 EXCEPT FOR 553210,556146
999
PROTECTIVE PLATE
999
BRACKET
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
LOCK , Replaced By: A1072950173
999
EDGE GUARD SECTION , Replaced By: A0009871972
999
RESERVOIR , Replaced By: A0004314702
999
BRAKE BOOSTER ASSEMBLY , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
BRAKE BOOSTER ASSEMBLY , FROM CHASSIS 018154 ALSO INSTALLED ON 017661,017829 EXCEPT FOR 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,018355. EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 533350, Replaced By: A0024305630, +001A1262920074, +001N912011008000
999
BRAKE HOSE , Replaced By: A3084287635
999
CLAMP , Replaced By: N916016022203
999
REPAIR KIT , Replaced By: A0004302183
999
FILTER RING , Replaced By: A0015864143
999
FILLER CAP , Replaced By: A0004315433
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004313607
999
FILLER CAP , Replaced By: A0004315133
999
STRAINERTO 002 430 31 01
999
VALVETO 003 430 07 01, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BRAKE HOSE , Replaced By: A0004280535
999
BRACKET. LOCK , Replaced By: A6525040038
999
SCREW PLUG , Replaced By: A0004315433
