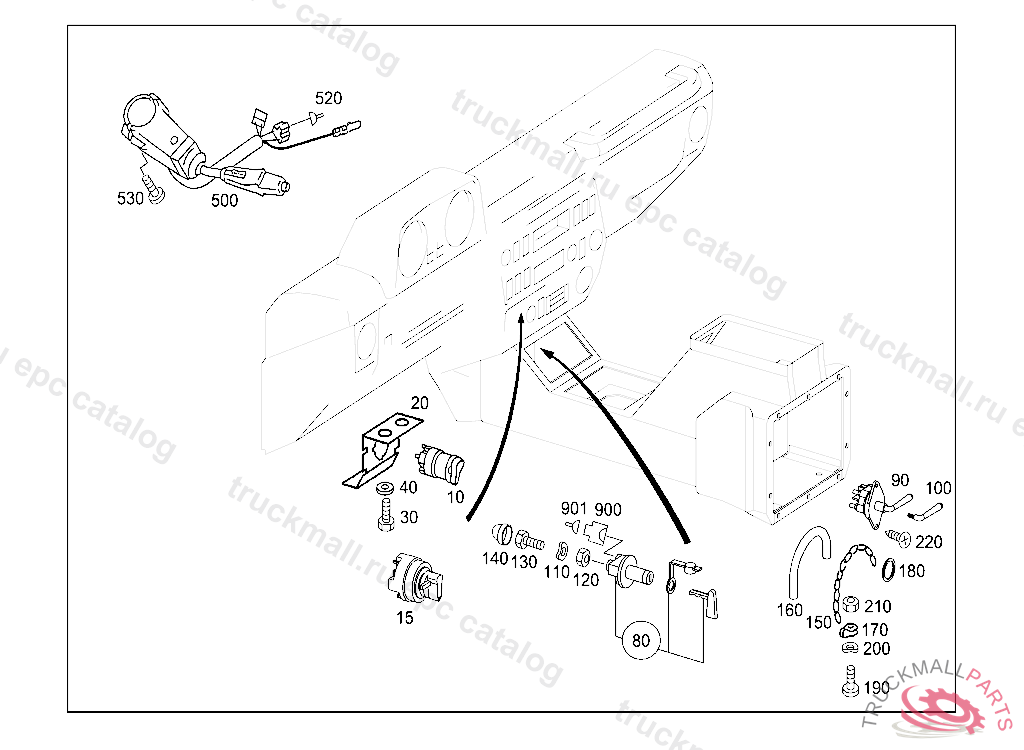

Поз.
Артикул
Описание
10
SWITCH (LIGHT SWITCH) 24 V
15
SWITCH (LIGHT SWITCH)
20
BRACKET MASKED LIGHT SWITCH
20
BRACKET LIGHT AND FAN SWITCH
30
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
40
WASHER BOOT TO CAB FLOOR
80
SWITCH BATTERY CUT-OUT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
80
SWITCH BATTERY MASTER SWITCH TO TRAY
90
SWITCH BATTERY MASTER SWITCH TO TRAY
100
OPERATING LEVER SWITCH TO A 001 545 10 08
110
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
WASHER COMPRESSED AIR LINE TO BRACKET
120
NUT SPRING-LOADED PUSH ROD
130
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
130
SCREW , Replaced By: N304017005002
140
BOOT BATTERY MASTER SWITCH
150
CHAIN
160
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
170
CLAMP MOUNTING CHAIN TO WATER TANK
180
CHAIN DUMMY SOCKET AND SOCKET TO FRAME LEFT
190
SCREW STEP SWITCH
200
SPRING WASHER ALTERNATOR CONNECTION D+
210
NUT RELAY TO BRACKET M5
220
TAPPING SCREW4.5X13
220
SHEET METAL SCREW
500
TURN SIGNAL SWITCH
500
SWITCH (BLINKER SWITCH)
520
PLUG PIN0.5-2.0 MM2
530
SCREW BELT TO LATERAL SEAT BENCH M 4X16
900
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
901
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
