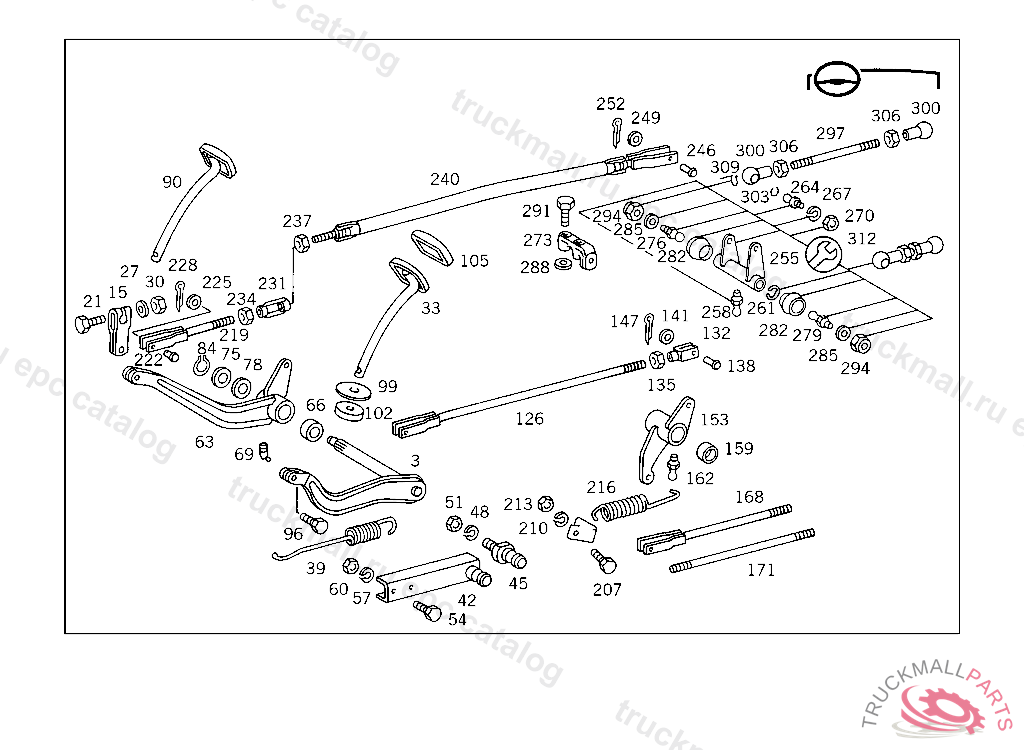

Поз.
Артикул
Описание
3
PEDAL CLUTCH,6149578 0000014 2827078 000001
15
LEVER CLUTCH LINKAGE,001525600001-600024
15
LEVER CLUTCH LINKAGE,001526-6000006000254 2827078 000001
21
SCREWM 8X40
27
WASHER , Replaced By: N000125008443
27
WASHER EXHAUST MUFFLER TO STRAP
30
NUT
33
PEDAL PLATE CLUTCH, 614956
33
PEDAL PLATE CLUTCH,6149578 0000014 2827078 000001
39
SPRING CLUTCH PEDAL RESET,4 2827078 000001
42
BRACKET PEDAL BEARING,4 2827078 000001
45
PIN PEDAL BEARING, 687048
48
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
51
NUT , Replaced By: N308673014001
51
NUT BRACKET TO SIDE MEMBER,K 035196
54
SCREW STRAP TO BRACKET
57
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
60
NUT BRACKET TO SUPPORT AND TO END PIECE
63
PEDAL BRAKE,4 2827078 000001
66
BUSHING , 615068
66
BUSHING BRAKE PEDAL
69
GREASE NIPPLE
75
WASHER LEVER TO SHAFT,4 2827078 000001
78
FITTED WASHER BRAKE PEDAL TO SHAFT
84
LOCK RING PLANETARY GEAR TRAIN
90
PEDAL PLATE BRAKE,4 2827078 000001
96
SCREW END PIECE TO EXHAUST PIPE M 10X25
99
WASHER CLUTCH PEDAL AND BRAKE PEDAL
102
SEAL RING CLUTCH PEDAL AND BRAKE PEDAL
105
PAD BRAKE AND CLUTCH LEVERS
126
ROD
126
ROD BRAKE PEDAL TO SHAFT, 695198
132
YOKE PULL ROD TO LEVER
135
NUT BRACKET TO SUPPORT AND TO END PIECE
138
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
141
WASHER , Replaced By: N000433010510
141
WASHER VIBRATION ABSORBER TO BRACKET
147
COTTER PIN CYLINDER TO BRACKET
153
LEVER BRAKE LINKAGE, 695198
153
LEVER BRAKE LINKAGE,6951998 0000014 2827078 000001
159
BUSHING , 615068
162
GREASE NIPPLE PROTECTIVE TUBE
171
PULL ROD , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
207
SCREW BRACKET TO SIDE MEMBER
207
SCREW PIPE CLAMP
207
SCREW , Replaced By: N304017010002
207
SCREW , Replaced By: N304017008021
210
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
213
NUT
213
NUT BRACKET TO SUPPORT AND TO END PIECE
216
SPRING , Replaced By: A3649937010
219
ROD CLUTCH OPERATION,4 2827078 000001
222
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
225
WASHER , Replaced By: N000433010510
225
WASHER VIBRATION ABSORBER TO BRACKET
228
COTTER PIN CYLINDER TO BRACKET
231
TURNBUCKLE CLUTCH ADJUSTMENT,4 2827078 000001
234
NUT PULL ROD
237
NUT STRAP TO SUPPORT,5 149419
240
ROD CLUTCH OPERATION,001526-6000006000254 2827078 000001
240
ROD CLUTCH OPERATION,001525600001-600024
246
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
249
WASHER , Replaced By: N000433010510
249
WASHER VIBRATION ABSORBER TO BRACKET
252
COTTER PIN CYLINDER TO BRACKET
255
LEVER CLUTCH COMPENSATION DOUBLE LEVER,856855-4 2827078 000001
255
LEVER CLUTCH COMPENSATION DOUBLE LEVER,001526-600000600025-608703
255
LEVER CLUTCH COMPENSATION DOUBLE LEVER,608704-856854
258
GREASE NIPPLE PROTECTIVE TUBE
261
SNAP RING DOUBLE LEVER TO BRACKET
264
BALL PIVOT CLUTCH LINKAGE,001526-6000006000254 2827078 000001
267
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
270
NUT BRACKET TO SUPPORT AND TO END PIECE
273
BRACKET CLUTCH LINKAGE COMPENSATION,856855-4 2827078 000001
273
BRACKET CLUTCH LINKAGE COMPENSATION,608704-856854
276
BALL PIVOT CLUTCH OPERATION,001526-600000600025-608703608704-856854
279
BALL PIVOT CLUTCH OPERATION,856854
279
BALL PIVOT CLUTCH OPERATION,856855-4 2827078 000001
282
SEAL RING DOUBLE LEVER TO BRACKET
285
WASHER
288
WASHER , Replaced By: A1403521376
291
SCREW BRACKET TO FRAME SIDE MEMBER
294
NUT PLATFORM MOUNTING
294
NUT END PIECE TO EXHAUST PIPE
297
PULL ROD CLUTCH ACTUATION M10X200/40, TO BE ADAPTED DURING ASSEMBLY
300
BALL SOCKET BELT TIGHTENER
303
SNAP RING DOUBLE LEVER TO BRACKET
306
NUT BRACKET TO SUPPORT AND TO END PIECE
309
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
312
LEVER CLUTCH ACTUATING PARTS,001526-600000600025-608703
312
REPAIR KIT , Replaced By: A3142901128, +001A3522930060, +001A3149910115, +001A3149910215, +001N071805016300
312
REPAIR KIT CLUTCH ACTUATING PARTS,856855-4 2827078 000001
312
REPAIR KIT CLUTCH ACTUATING PARTS,608704-856854
999
YOKE , Replaced By: A0009961501
999
YOKE , Replaced By: A0009961401
999
ROD OVER-CENTER ACTING SPRING
999
ROD OVER-CENTER ACTING SPRING
999
PIN , Replaced By: A3142910074
999
WASHER PEDAL TO PEDAL LEVER
999
BOOT , Replaced By: A3182950483
999
SPACER TUBE REVERSING LEVER TO CAB,4 390171
999
BUSHING ,4 282708-4 390170, Replaced By: A3182920250, +001A3182920153, +001N000931010153, +003N009021010202, +001N913004010008
999
LINE , Replaced By: A3404202629
999
PEDAL PLATE , Replaced By: A3162900024
999
PROTECTIVE CAP , Replaced By: A0004210887
999
SHACKLE
999
PIN , Replaced By: A3529910007
999
REPAIR KIT , Replaced By: A3142903239
999
REPAIR KIT , Replaced By: A3142903139
999
REPAIR KIT , Replaced By: A3142903039
999
CONSOLE , 10/20 695199 50/60 695577 8 0000014 2827078 000001-8 001702
999
ROD , Replaced By: A3142902639
999
LEVER CLUTCH LINKAGE, 695198
999
BRACKET RELEASE SPRING,6951998 0000014 2827078 000001
999
BRACKET RELEASE SPRING,6951998 0000014 2827078 000001
999
BRACKET RELEASE SPRING, 695198
999
BRACKET RELEASE SPRING, 695198
999
LEVER ,856855-4 2827078 000001 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3145860129
999
LEVER , Replaced By: A3145860029
999
PEDAL ,600000, Replaced By: A3142901516, +001A3142901224
999
PEDAL PLATE , Replaced By: A3162900024
999
PEDAL , Replaced By: A3162900018
999
BRACKET , Replaced By: A3142900486
999
LEVER , Replaced By: A3142930610
999
SEAL WASHER
999
SCHEIBE. WASHER , Replaced By: A3193260076
999
NUT RETAINER , Replaced By: A1239901291
999
PAD , Replaced By: A1072910182
999
SEAL RING , Replaced By: A0069979147
999
NEEDLE BEARING , Replaced By: A0119813410
999
HOSE , Replaced By: A0009978952
999
RESERVOIR , Replaced By: A0004318302, +001A0004313733, +001A0004313134
999
MASTER CYLINDER , Replaced By: A0002957706
999
NEEDLE BEARING , Replaced By: A0119813410
999
STRAINER , Replaced By: A0004313134
999
STRAINER , Replaced By: A0004314334
999
FILLER CAPTO 000 431 16 02
999
VALVE , Replaced By: A3075530107
999
STRAINERTO 002 430 31 01
999
PROTECTIVE CAP , Replaced By: A0004217187
