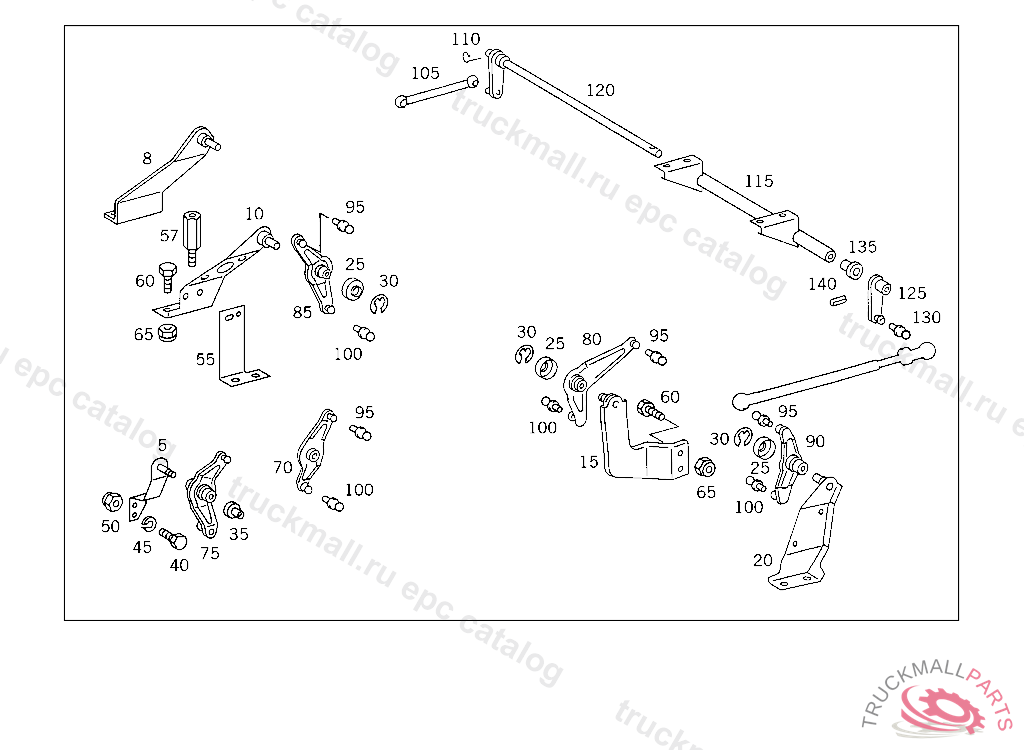

Поз.
Артикул
Описание
5
BEARING BRACKET INTERMEDIATE BEARING
8
BEARING BRACKET INTERMEDIATE LEVER,5 943507
8
BEARING BRACKET INTERMEDIATE LEVER,5 943507
8
BEARING BRACKET INTERMEDIATE LEVER,5 943507
10
BEARING BRACKET INTERMEDIATE BEARING
10
BEARING BRACKET INTERMEDIATE LEVER
10
BEARING BRACKET INTERMEDIATE LEVER
15
BEARING BRACKET INTERMEDIATE BEARING
20
BEARING BRACKET INTERMEDIATE LEVER
25
COVERING INTERMEDIATE BEARING
25
COVERING INTERMEDIATE BEARING
30
LOCK PLATE INTERMEDIATE BEARING
30
LOCK PLATE INTERMEDIATE BEARING
35
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
35
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
40
SCREW , Replaced By: N304017008034
40
SCREW , Replaced By: N304017008016
40
SCREW BRACKET TO CROSS CONNECTION STRUT
40
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
BRACKET BEARING BRACKET TO GUSSET PLATE
57
EXTENSION INTERMEDIATE BEARING TO BRACKET
60
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
60
SCREW , Replaced By: N304017008034
60
SCREW BRACKET TO CROSS CONNECTION STRUT
60
SCREW BRACKET TO CROSS CONNECTION STRUT
65
NUT , Replaced By: N910113010000
65
NUT STRAP TO BRACKET
65
NUT , Replaced By: N913004008001
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
LEVER , Replaced By: A6203000628, +001N071803013208
70
LEVER , Replaced By: A6153000628
70
LEVER INTERMEDIATE BEARING
70
LEVER INTERMEDIATE BEARING
75
LEVER INTERMEDIATE BEARING
80
LEVER (INTERMEDIATE LEVER)
80
LEVER (INTERMEDIATE LEVER)
85
LEVER (INTERMEDIATE LEVER),5 943507
85
LEVER (INTERMEDIATE LEVER)
90
LEVER (INTERMEDIATE LEVER)
90
LEVER (INTERMEDIATE LEVER)
90
LEVER (INTERMEDIATE LEVER),5 943507
95
BALL STUD. BALL PIVOT TOP B10X4,5 MM
95
BALL STUD. BALL PIVOT TOP B10X4,5 MM
100
BALL PIVOT BOTTOM B13X5 MM
105
BALL SOCKET ROD TO ACCELERATOR PEDAL
110
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
115
BEARING TUBE CONTROL SHAFT
120
SHAFT (CONTROL SHAFT)
125
LEVER (CONTROL LEVER)
130
BALL PIVOT
135
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
140
CLAMPING SLEEVE , Replaced By: N308752004001
140
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
NUT
999
SECURING CLIP. CIRCLIP
999
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
999
NUT , Replaced By: N304032008006
999
BEARING BRACKET INTERMEDIATE LEVER
999
BALL SOCKET ROD TO BALL PIVOT
