Поз.
Артикул
Описание

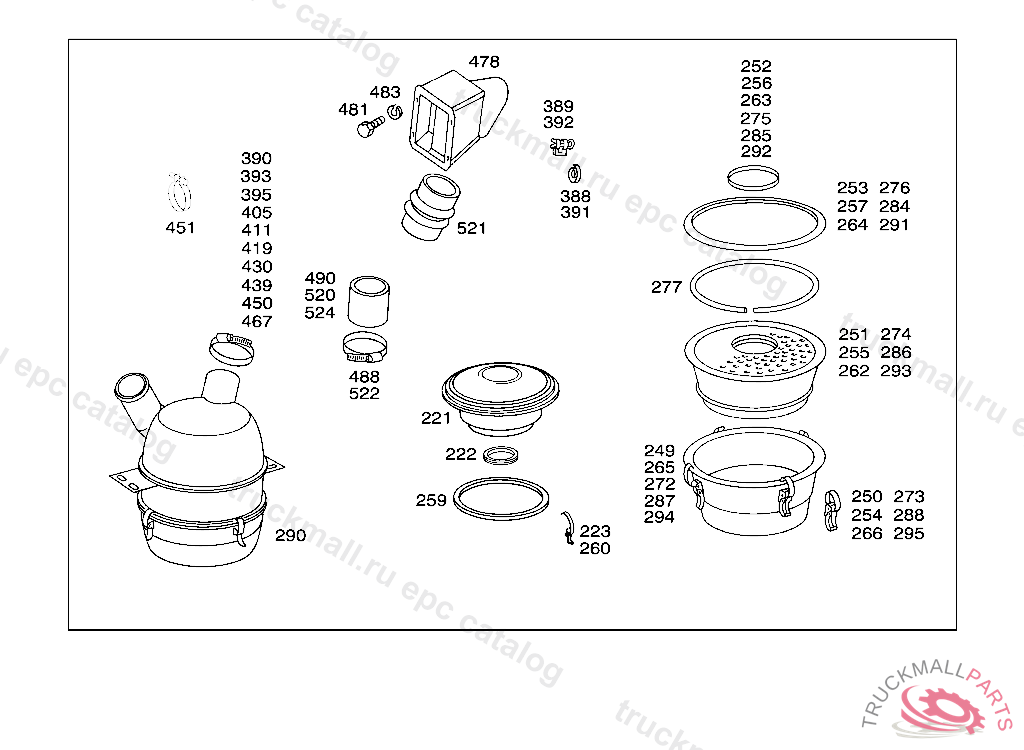

221
FILTER ELEMENT
222
GASKET INSIDE
223
FASTENER
249
FILTER BOWL
250
FASTENER
251
FILTER ELEMENT
252
GASKET INSIDE
253
GASKET OUTSIDE
254
FASTENER
255
FILTER ELEMENT
256
GASKET INSIDE
257
GASKET OUTSIDE
388
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
389
LOOM TIE ALTERNATOR BREATHING
390
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
390
CLAMP , Replaced By: A0059971490
390
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
391
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
392
LOOM TIE ALTERNATOR BREATHING
393
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
393
CLAMP , Replaced By: A0059971490
393
CLAMP , Replaced By: N000000000675
393
CLAMP , Replaced By: A0059972990
393
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
393
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
395
CLAMP , Replaced By: A0059971490
395
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
395
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
405
CLAMP , Replaced By: N000000000675
405
CLAMP , Replaced By: A0059972990
405
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
411
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
411
CLAMP , Replaced By: N000000000675
411
CLAMP , Replaced By: A0059972990
419
CLAMP , Replaced By: A0059971490
419
CLAMP , Replaced By: N000000000675
419
CLAMP , Replaced By: A0059972990
419
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
419
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
419
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
999
CLAMP , WITH LA 329 FROM CHASSIS 000307-000404,WITH L 332 FROM CHASSIS 001143-001699YWITH LA 332 FROM CHASSIS 000175-000299,WITH L 334FROM CHASSIS 000506-001470
999
INTAKE PIPE100MM, FOR USE WITH CYCLONE AIR CLEANER
999
BOOT
999
INTAKE PIPE , WITH LA 329 FROM CHASSIS 000307-000404,WITH L 332 FROM CHASSIS 001143-001699YWITH LA 332 FROM CHASSIS 000175-000299,WITH L 334FROM CHASSIS 000506-001470, Replaced By: A3260942308, +002A0019972790, +001N900271100009
999
INTAKE PIPE
999
AIR INTAKE PIPE , 912,973,975 WITH L 332 UP TO CHASSIS 8500416,WITH LA 332 UP TO CHASSIS 8500416,910 FROM ENGINE 8500283-8503091, Replaced By: A3290945708, +002A3120941191, +004A0019972790
999
AIR INTAKE PIPE , Replaced By: A3260945108
999
AIR CLEANER , WITH LA 329 FROM CHASSIS 000307,WITH L 332 FROM CHASSIS 001143,WITH LA 332 FROM CHASSIS 000175,WITH L 334 FROM CHASSIS 000506
999
AIR CLEANER OIL BATH AIR FILTER, ONLY AS A REPLACEMENT FOR 002 094 08 02 PAPER AIR CLEANER
999
AIR CLEANER , Replaced By: A0020940802
999
AIR CLEANER , WITH L 329 UP TO CHASSIS 000306,WITH L 332 UP TO CHASSIS 001142,WITH LA 332 UP TO CHASSIS 000174,WITH L 334 UP TO CHASSIS 0005 05 MAKE MANN & HUMMEL WITH L/LA 331 AND L 334 ONLY FOR 20/60
999
AIR CLEANER , WITH L 329 UP TO CHASSIS 000306,WITH L 332 UP TO CHASSIS 001142,WITH LA 332 UP TO CHASSIS 000174,WITH L 334 UP TO CHASSIS 0005 05
999
PRESSURE SPRING. SPRING , Replaced By: A0029932801, +001A0004770176
999
BANJO UNION FUEL LINES AND BREATHING
999
FUEL FILTER
999
FUEL FILTER
999
FUEL FILTER , 910,912,918,973,975 8500951 914 8500015 915 8500100 974 8500365, Replaced By: A0014770401, +001A0089975482
999
FUEL FILTER , 910,912,918,973,975 8500951 914 8500015 915 8500100 974 8500365, Replaced By: A0014770301, +001A0089975482
999
NUTTO 000 477 66 01 / 80 01
999
SCREWTO 000 477 66 01 / 80 01
999
COVER , 910,912,918,973,975 8500952 914 8500016 915 8500101 974 8500366, Replaced By: A0004700438, +002A0004773180
999
COVER , 910,912,918,973,975 8500951 914 8500015 915 8500100 974 8500365, Replaced By: A0004700438, +002A0004773180, +001A0089975482
999
GASKET OUTSIDE
999
COVER
999
GASKET
999
FILTER ELEMENT
999
CLAMP
999
SCREWTO 005 094 58 02
999
FILTER BOWL , WITH L 329 UP TO CHASSIS 000306,WITH L 332 UP TO CHASSIS 001142,WITH LA 332 UP TO CHASSIS 000174,WITH L 334 UP TO CHASSIS 0005 05 MAKE KNECHT WITH L/LA 331 AND L 334 ONLY FOR 20/60
999
FILTER BOWL , WITH L 329 UP TO CHASSIS 000306,WITH L 332 UP TO CHASSIS 001142,WITH LA 332 UP TO CHASSIS 000174,WITH L 334 UP TO CHASSIS 0005 05 MAKE MANN & HUMMEL WITH L/LA 331 AND L 334 ONLY FOR 20/60
999
FASTENER ,FB248084
