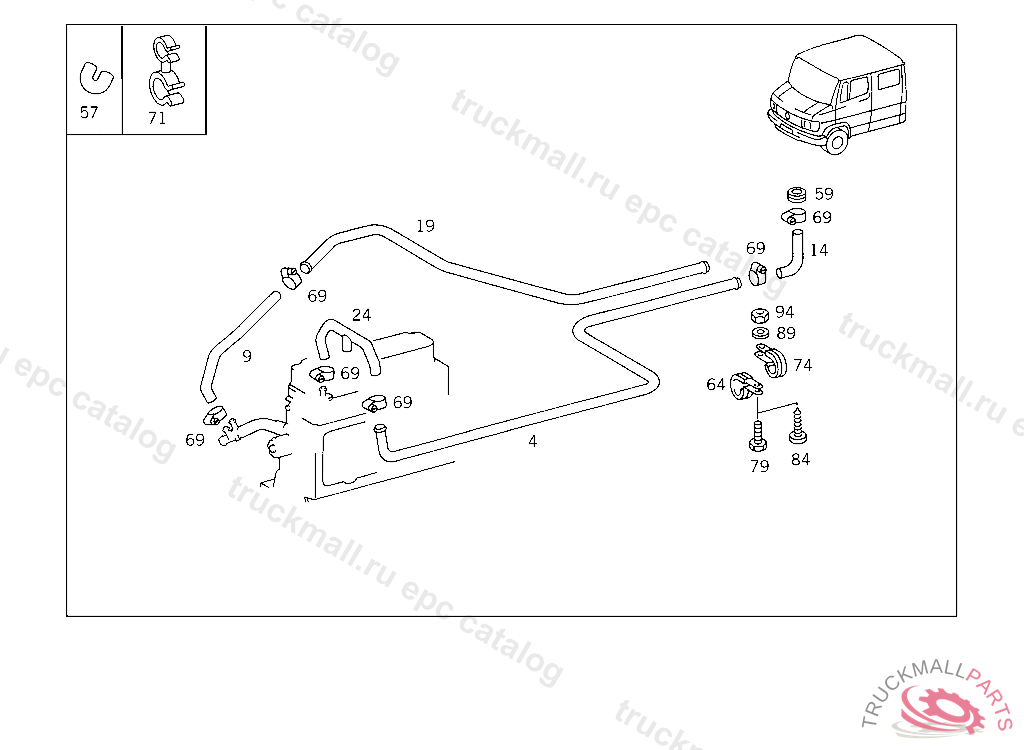

Поз.
Артикул
Описание
4
PIPE , Replaced By: A0004291501
4
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
4
PIPE
9
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
9
HOSE HEAT EXCHANGER II FEED
14
HOSE PIPE LINE TO CONNECTION FITTING AND TO PRESSURE REGULATOR
14
HOSE (HEATING LINE) FROM ENGINE TO HEATER,FEED, 962133 N 000001 P 000001
14
HOSE FROM PUMP TO HEATING WATER PIPE,504534
14
HOSE HEAT EXCHANGER II RETURN
19
PIPE , Replaced By: A0004291501
24
HOSE HEAT EXCHANGER II RETURN
57
HOSE FROM HEATING PIPE TO HEATER, RETURN
59
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
59
GROMMET , UP TO CHASSIS 603580 ON SPECIAL REQUEST, SEPARATE BRAKE FLUID RESERVOIR FOR HYDRAULIC BRAKE
64
CLAMP HOSE TO SUPPORT,5 385342
69
CLAMP , Replaced By: N000000000667
69
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
71
CLAMP LINE MOUNTING
74
CLAMP BRAKE HOSE BRACKET
79
SCREW COVER PLATE TO BRACKET
84
SHEET METAL SCREW BRACKET TO FLOOR PLATE
84
SHEET METAL SCREW OIL LINE MOUNTING
84
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
89
WASHER , Replaced By: N000433005304
89
WASHER BOOT TO CAB FLOOR
94
NUT TACHOGRAPH TO BRACKET
999
HOSE RETURN LINE THRU SUBSTRUCTURE
