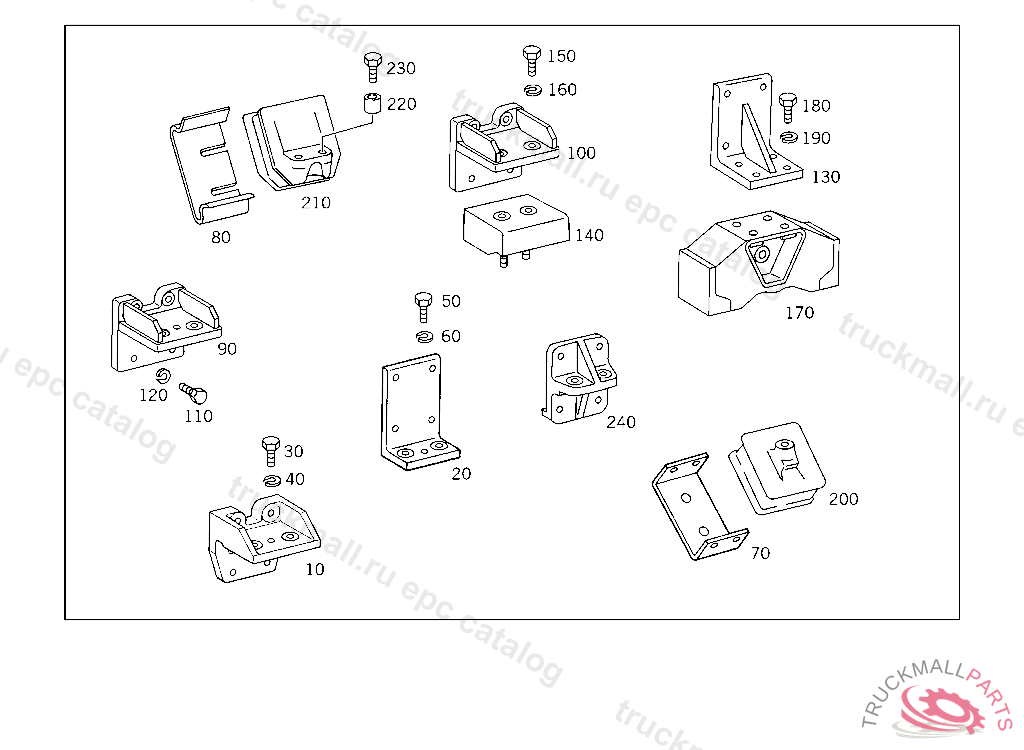

Поз.
Артикул
Описание
10
ENGINE SUPPORT FRONT
20
ENGINE SUPPORT REAR
30
SCREW
30
SCREW
40
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
50
SCREW BRACKET TO FRAME M 12X35
60
LOCK WASHER FITTING TO BRACKET
70
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
80
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
90
ENGINE SUPPORT
100
ENGINE SUPPORT
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017014010
110
SCREW BRACKET TO RIGHT SIDE MEMBER
120
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
130
ENGINE SUPPORT
140
RUBBER MOUNTING ENGINE FRONT SUSPENSION
150
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
160
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
170
RUBBER MOUNTING
180
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
190
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
200
RUBBER MOUNTING VIBRATION DAMPER END
200
RUBBER MOUNTING , 695022, Replaced By: A3522400517, +002A3529902440, +002N000960016237
200
RUBBER MOUNTING , Replaced By: A3732400217
200
RUBBER MOUNTING , Replaced By: A3022401117
210
RUBBER MOUNTING ,4 118568, Replaced By: A3522400518, +004A3602420253, +004N000960016206
210
RUBBER MOUNTING ENGINE REAR SUSPENSION,4 118569
220
SPACER TUBE CLAMP TO BRACKET
230
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
240
ENGINE STAY
999
INTERMEDIATE PIECE
999
ENGINE SUPPORT FRONT
