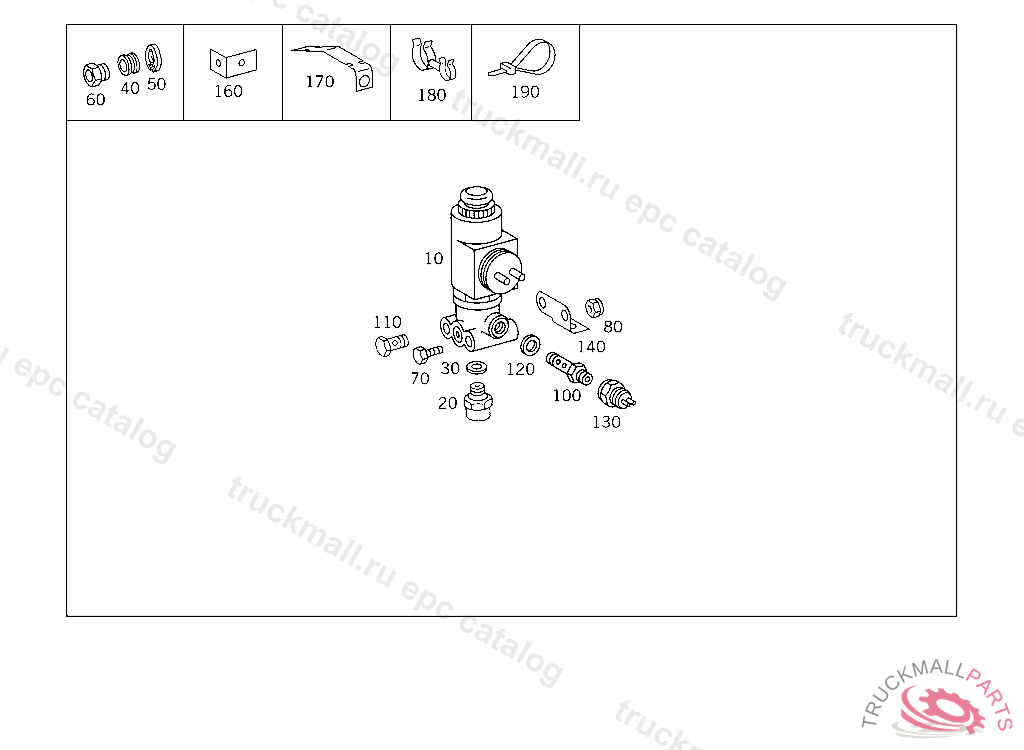

Поз.
Артикул
Описание
10
VALVE (3/2-WAY SOLENOID VALVE) EKS
20
FITTING LINE CONNECTION
30
SEAL RING LINE CONNECTION
40
SEAL RING , Replaced By: A0009940747
40
LOCK RING LINE CONNECTION
50
LOCK , Replaced By: A0009945448
50
LOCK LINE CONNECTION
60
SCREW. UNION SCREW LINE CONNECTION
60
SCREW. UNION SCREW , Replaced By: A0009973734
70
SCREW , Replaced By: N304017008043
70
SCREW VALVE TO BRACKET M 8X55
80
NUT , Replaced By: A0009906350
100
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
110
HOLLOW SCREW HEATING CONNECTION
120
SEAL RING LINE CONNECTION
130
SWITCH EXHAUST BRAKE,K 251255
140
BRACKET COMPRESSED AIR LINE, NOT USED
160
ANGLE LINE MOUNTING
170
BRACKET BRACKET TO TRANSMISSION
180
HOSE BRACKET LINE MOUNTING
180
CLAMP , Replaced By: A1239950265, +001A0009951765
180
CLAMP6/14-15 MM
190
LOOM TIE LINE MOUNTING 280 MM
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
