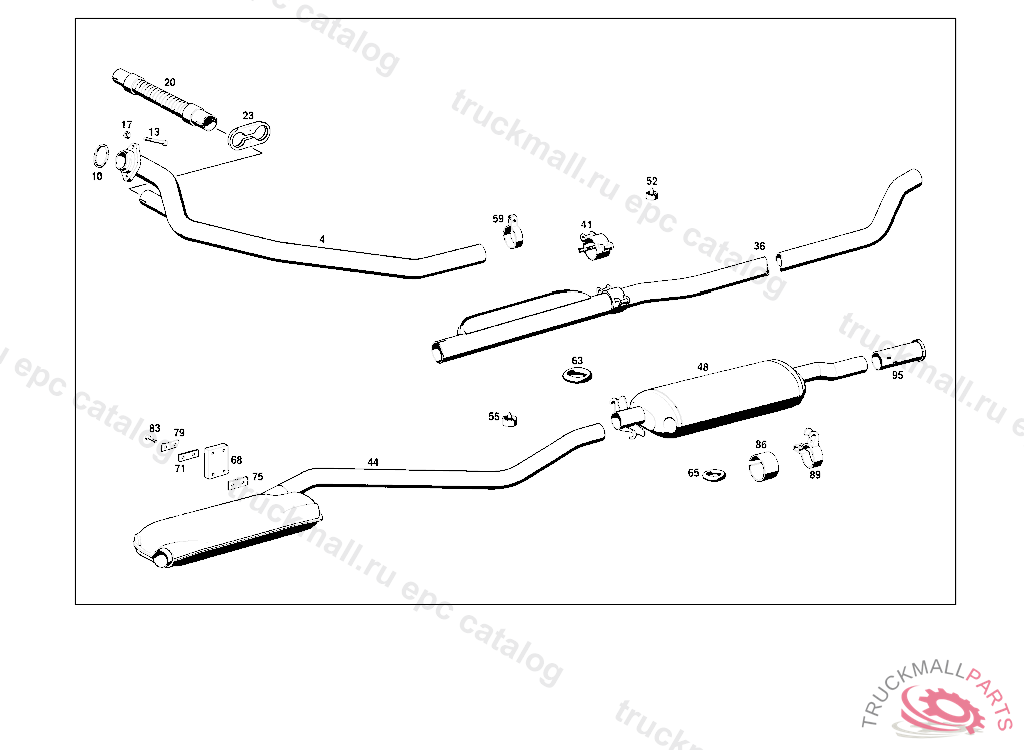

Поз.
Артикул
Описание
4
EXHAUST PIPE FRONT LEFT
10
SEAL RING FRONT LEFT
10
SEAL RING
13
SCREW , Replaced By: N304017008043
13
SCREW VALVE TO BRACKET M 8X55
17
NUT POWER CYLINDER TO BRACKET
17
NUT , Replaced By: A0009903250
20
FLEXIBLE METAL TUBE EXHAUST PIPE CONNECTION
23
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE, 000,001,010 UP TO CHASSIS 130557
41
CLAMP
44
EXHAUST PIPE LEFT
48
MUFFLER LEFT
52
RUBBER BUFFER
52
RUBBER BUFFER , Replaced By: A1009870140
55
RUBBER BUFFER
59
CLAMP
63
DAMPING PAD ,042 001961
65
DAMPING PAD EXHAUST PIPE SUSPENSION
68
DAMPING PAD
71
BASE PLATE EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
75
INSULATION
75
INSULATION , Replaced By: A0004921383
79
LOCK
83
SCREW AT SIDE MEMBER,OUTSIDE
86
INSULATION
86
INSULATION , Replaced By: A0004921483
89
BRACKET
95
END PIECE
999
EXHAUST PIPE LEFT
999
EXHAUST PIPE RIGHT (100 491 16 01)
999
EXHAUST PIPE RIGHT
999
EXHAUST PIPE FRONT RIGHT
999
MUFFLER RIGHT
999
WASHER , Replaced By: N000125008443
999
LOCK WASHER , Replaced By: N912004010102
999
SCREW , Replaced By: N304017008053
999
SCREW , Replaced By: N304017008034
999
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
