Mercedes N000933006102 -

M 115 115.972

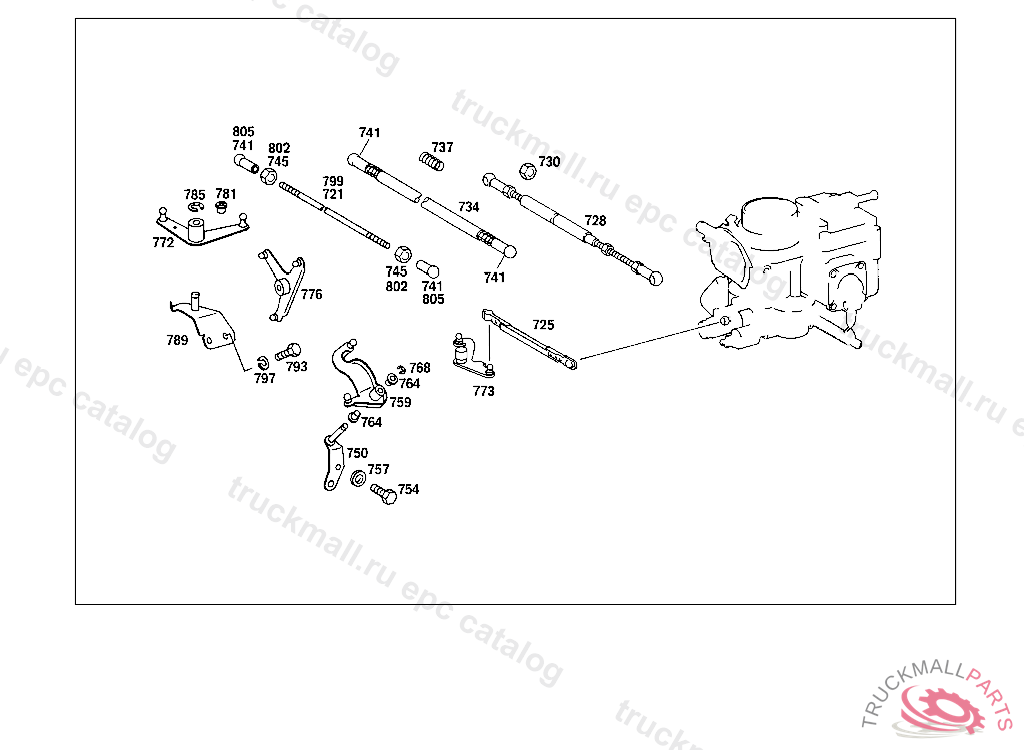

07 CARBURETOR - 001 INJECTION PUMP IL. 5
  • Поз.
    Артикул
    Описание
  • 721
    ROD FROM CONTROL LEVER TO THROTTLE VALVE LEVER
  • 725
    ROD FROM THROTTLE LEVER TO ANGULAR LEVER, 952 10/50,20/60 005226 952 12/52,22/62 000320 955 007988 972 012490
  • 730
    NUT CABLE TO ALTERNATOR,4 477130
  • 741
    BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
  • 741
    BALL SOCKET
  • 741
    BALL SOCKET , Replaced By: A0009918922
  • 741
    BALL SOCKET , Replaced By: A0009919022
  • 745
    NUT , Replaced By: N304032005005
  • 745
    NUT IN CASE OF SUBSEQUENT INSTALLATION
  • 768
    LOCK PLATE RELEASE LEVER TO SHAFT
  • 772
    LEVER , 952 10/50,20/60 005225 952 12/52,22/62 000319 955 007987 972 012489
  • 773
    LEVER , 952 10/50,20/60 005226 952 12/52,22/62 000320 955 007988 972 012490
  • 773
    LEVER , Replaced By: A1150701622
  • 773
    LEVER , 952 10/50,20/60 005226 952 12/52,22/62 000320 955 007988 972 012490 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 95510/50,20/60 008655 97210/50,20/60 014333, Replaced By: A1150701622
  • 781
    BUSHING
  • 785
    LOCK PLATE RELEASE LEVER TO SHAFT
  • 789
    BEARING BRACKET
  • 793
    SCREW COVER PLATE TO BRACKET
  • 797
    LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
  • 999
    COVER , Replaced By: A0000717104
  • 999
    COVER , Replaced By: A0000730902
  • 999
    CARBURETOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 955006245 972008754, Replaced By: A0010705904
  • 999
    HOSE8X12 MM, ORDER BY THE METER
