Поз.
Артикул
Описание

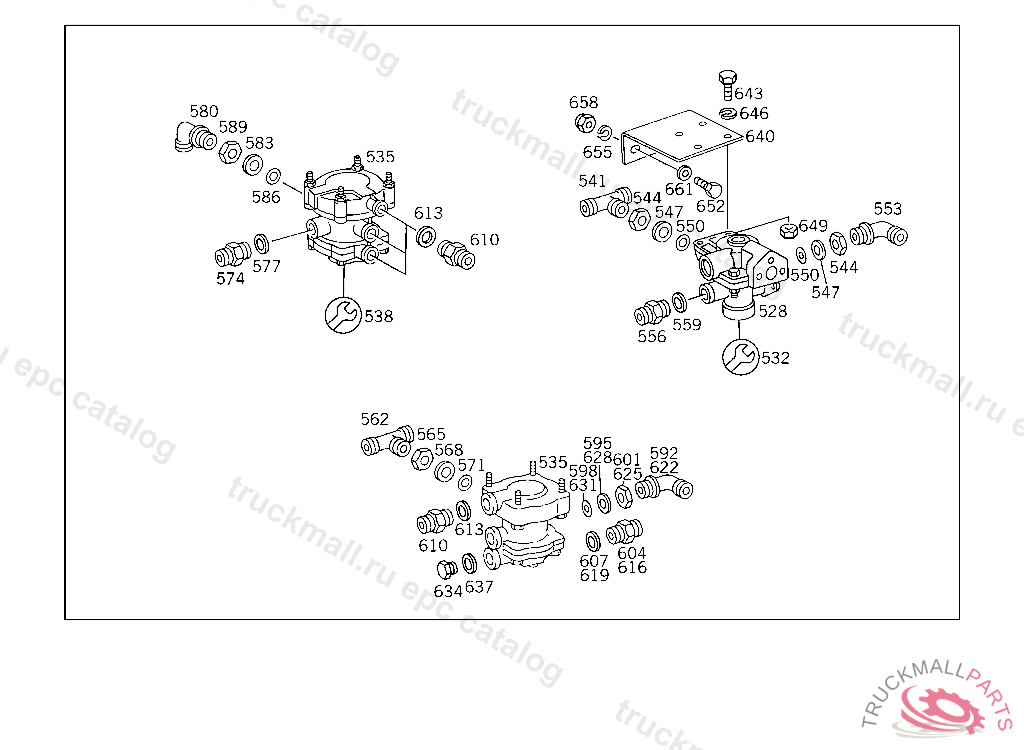

528
BRAKE VALVE CONTROL VALVE,549429
528
BRAKE VALVE CONTROL VALVE,549429
532
REPAIR KITTO 001 431 56 05
535
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
535
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
535
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
535
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
538
REPAIR KITTO 001 431 37 05,4 375193
538
REPAIR KITTO 001 431 37 05,4 375193
538
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
538
REPAIR KIT , Replaced By: A0024306581
541
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
541
T-FITTING , Replaced By: N074317000100
544
NUT CHECK VALVE TO AIR RESERVOIR
544
NUT CHECK VALVE TO AIR RESERVOIR
547
THRUST RING CHECK VALVE TO AIR RESERVOIR
547
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
550
O-RING CHECK VALVE TO AIR RESERVOIR
553
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
553
FITTING
556
FITTING AIR RESERVOIR,CONNECTION: "13"
556
FITTING AIR RESERVOIR,CONNECTION: "2"
556
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
556
FITTING , Replaced By: A0009970171
559
SEAL RING LINE CONNECTION
562
T-FITTING CONTROL VALVE,CONNECTION "1"
565
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
568
THRUST RING LOCKING VALVE
571
SEAL RING
574
FITTING DELIVERY LINE TO PUMP
574
FITTING DELIVERY LINE TO PUMP
574
SCREW-IN FITTING OIL LINE CONNECTION
574
SCREW-IN FITTING OIL LINE CONNECTION
577
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
577
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
580
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
580
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
580
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
580
ELBOW FITTING , Replaced By: A3849907071
583
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
583
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
583
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
589
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
589
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
589
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
592
ELBOW FITTING , Replaced By: A3849907071
592
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
595
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
598
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
601
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
604
FITTING DELIVERY LINE TO PUMP
604
SCREW-IN FITTING OIL LINE CONNECTION
607
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
610
FITTING RELAY VALVE,CONNECTION: "40",5 359430
610
FITTING RELAY VALVE,CONNECTION: "40",5 359430
610
FITTING RELAY VALVE,CONNECTION: "40",5 359430
610
FITTING RELAY VALVE,CONNECTION: "40",5 359430
610
FITTING RELAY VALVE,CONNECTION: "40",5 359430
610
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
610
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
610
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
610
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
610
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
613
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
613
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
613
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
613
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
613
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
613
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
616
FITTING VALVE TO VALVE
616
FITTING VALVE TO VALVE
619
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
619
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
622
ELBOW FITTING
625
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
628
THRUST RING LOCKING VALVE
631
SEAL RING
634
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
637
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
640
BRACKET REAR AXLE RELAY VALVE
640
BRACKET TRAILER CONTROL VALVE
640
BRACKET TRAILER CONTROL VALVE
640
BRACKET (CONTROL VALVE)
640
BRACKET , Replaced By: A3454318440
643
SCREW , Replaced By: N304017010002
646
LOCK WASHER , Replaced By: N912004010102
649
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
649
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
649
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
652
SCREW BRACKET TO RETARDER
652
SCREW , Replaced By: N304017010002
652
SCREW , Replaced By: N304017010002
652
SCREW CROSS MEMBER TO SIDE MEMBERS
655
LOCK WASHER , Replaced By: N912004010102
658
NUT BRACKET TO SIDE MEMBER,XB209706
658
HEX. NUT. NUT SHIFT LEVER KNOB
658
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
661
WASHER GROUND CABLE
999
CLAMP ,K 147121, Replaced By: N000000000319
999
UNION NUT LINE CONNECTION
999
CONNECTION FITTING , Replaced By: A0049971772
999
GLAND LINE CONNECTION
999
CLAMP , Replaced By: N916016008200
999
BRACKET PIPING
999
LINE T-FITTING
999
LINE RELAY VALVE,CONNECTION "2"
999
LINE FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER,666575
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE , NOT USED
999
LINE , NOT USED
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE , NOT USED
999
LINE FROM T-FITTING TO CONTROL VALVE, NOT USED
999
LINE , NOT USED
999
LINE FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER,666575
999
CLAMP
999
LINE FROM CHECK VALVE TO CONNECTOR, NOT USED
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING,684146
999
CLAMP , Replaced By: A3379950332
999
CLAMPING PIECE LINE MOUNTING
999
BRACKET FUEL LINES
999
BRACKET FUEL LINE
999
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
VALVE (OVERFLOW VALVE)
999
REPAIR KITTO 003 429 02 44
999
REPAIR KIT CONTROL VALVE TO 002 431 28 05
999
T-FITTING AIR RESERVOIR I
999
COVER BRAKE,YELLOW "WABCO"
999
COVER SUPPLY, RED "WABCO"
