Поз.
Артикул
Описание

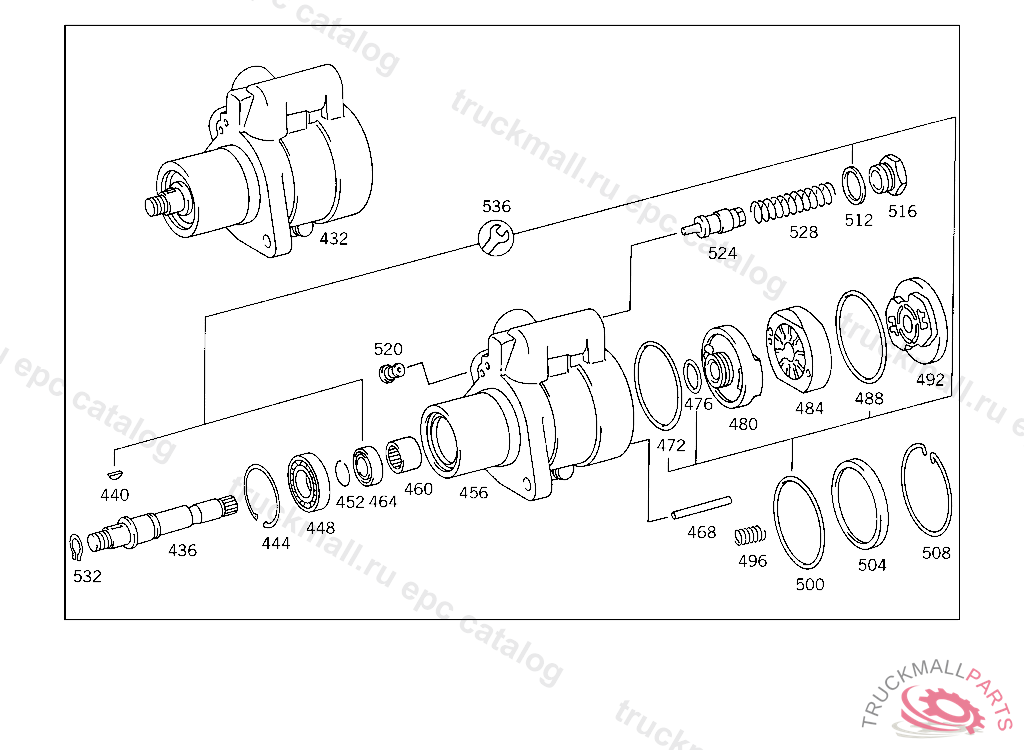

432
HYDRAULIC PUMP
436
DRIVE SHAFT
440
KEY
440
KEY , Replaced By: A0009912568
444
LOCK RING
448
BALL BEARING , Replaced By: A0049819625
448
BALL BEARING , Replaced By: A0049810925
448
BALL BEARING
452
SNAP RING
456
HOUSING
460
NEEDLE BEARING , Replaced By: A0149818010
460
NEEDLE BEARING
464
SEAL RING
468
DOWEL PINTO 001 466 77 01
472
SEAL RINGTO 000 460 26 80
476
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
480
COVER
480
COVER , Replaced By: A0004667105
484
SET OF ROTORS
488
SEAL RINGTO 000 460 23 80
492
COVER
492
COVER , Replaced By: A0004663505
492
COVER , Replaced By: A0004667205
492
COVER , Replaced By: A0004663505
492
COVER , Replaced By: A0004668005
496
SPRINGTO 000 460 23 80
496
SPRING , Replaced By: A0059934201
500
SEAL RING
504
COVER , Replaced By: A0004666505
504
COVERTO 000 460 23 80
508
SNAP RINGTO 000 460 23 80
512
SEAL RING LINE CONNECTION
516
SCREW PLUGTO 000 460 23 80
520
CARTRIDGE
520
CARTRIDGE , Replaced By: A0004663584
524
PISTON
524
PISTON , Replaced By: A0004664583
524
PISTON , Replaced By: A0004660483
528
SPRING
532
LOCK RING
536
REPAIR KIT
999
INTAKE PIPE
999
PIN AS REQUIRED 6.04MM, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
PIN AS REQUIRED 6.05 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
PIN AS REQUIRED 6.06 MM
999
VALVE
999
BALL CAGE
999
PISTON
999
SCREW , UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
LOCK
999
LOCK , UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
BALL RACE , UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
BUSHING
999
KEY IGNITION AND LIGHT SWITCH
999
INNER RING38.00 MM
999
INNER RING38.015 MM, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
CLIP FUEL LINE TO CAB CONSOLE
999
BANJO UNION , Replaced By: N915052008019
999
CLAMP FUEL LINES TO BRACKET
999
NEEDLE BEARING
999
NEEDLE BEARING
999
NEEDLE BEARING
999
NEEDLE BEARING , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
BALL AS REQUIRED 7.991 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
BALL AS REQUIRED 7.992 MM
999
BALL AS REQUIRED 7.995 MM
999
BALL AS REQUIRED 7.998 MM
999
BALL AS REQUIRED 8.000 MM
999
BALL AS REQUIRED 8.002 MM
999
BALL AS REQUIRED 8.005 MM
999
BALL AS REQUIRED 8.008 MM
999
BALL AS REQUIRED 8.010 MM
999
BALL AS REQUIRED 7.990 MM
999
BALL AS REQUIRED 7.993 MM
999
BALL AS REQUIRED 7.994 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
BALL AS REQUIRED 7.996 MM
999
BALL AS REQUIRED 7.997 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
BALL AS REQUIRED 7.999 MM
999
BALL AS REQUIRED 8.001 MM
999
BALL AS REQUIRED 8.003 MM
999
BALL AS REQUIRED 8.004 MM
999
BALL AS REQUIRED 8.006 MM
999
BALL AS REQUIRED 8.007 MM
999
BALL AS REQUIRED 8.009 MM
999
BALL AS REQUIRED 8.011 MM
999
BALL AS REQUIRED 8.012 MM
999
BALL AS REQUIRED 8.013 MM
999
BALL AS REQUIRED 8.014 MM
999
BALL AS REQUIRED 8.015 MM
999
SPACER WASHER AS REQUIRED 2.950 MM, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
SPACER WASHER AS REQUIRED 2.975 MM
999
SPACER WASHER AS REQUIRED 3.000 MM, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
SPACER WASHER AS REQUIRED 3.025 MM
999
SPACER WASHER AS REQUIRED 3.050 MM
999
SPACER WASHER AS REQUIRED 3.075 MM
999
SPACER WASHER AS REQUIRED 3.100 MM
999
SPACER WASHER AS REQUIRED 3.125 MM
999
SPACER WASHER AS REQUIRED 3.150 MM
999
SPACER WASHER AS REQUIRED 3.175 MM, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
SPACER WASHER AS REQUIRED 3.200 MM
999
SPACER WASHER AS REQUIRED 3.225 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
SPACER WASHER AS REQUIRED 3.250 MM, UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
999
SPACER WASHER AS REQUIRED 3.275 MM
999
NEEDLE BEARING
999
LOCK
999
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
999
NUT
999
RING WIRE CABLE TO LEVER
999
BREATHER PIPE BOTTOM,B 848395
999
INTERMEDIATE BEARING REPAIR KIT
999
FUEL HOSE ,598596KB848395
999
DISTRIBUTOR LEAK LINE,659794
999
HOSE , Replaced By: A3449977582
999
CONNECTOR
999
AIR INTAKE PIPE AIR INTAKE PIPE TO INTAKE PIPE SOCKET
999
ROD
999
BRACKET CABLE TO TRANSMISSION
999
BRACKET FUEL LINES
999
SHIM , Replaced By: A3184924841
999
CLAMP LINE MOUNTING
999
CLAMP WIRE CABLE TO FIRE WALL
999
KNOB , Replaced By: A3083007007
999
SHIM CONSOLE TO SIDE MEMBER,KB860814
999
PLUG TO PLUG THE FREE HOLES IN INSTRUMENT PANEL, 344.030-033,036-038.040,041,058 FROM CHASSIS 652015
999
LINE FROM HOSE TO FEED PUMP
999
HOSE , Replaced By: A3769978182
999
BRACKET FUEL LINE
999
DRAG LINK FRONT, USED WITH AIR BRAKE
999
LINE FROM FUEL FILTER TO RUBBER HOSE,RETURN
999
RISING PIPE ,659794
999
LINE FROM CYLINDER HEAD TO HOSE
999
SHIM CONSOLE TO SIDE MEMBER
999
HOSE
999
BRACKET FUEL LINE
999
WASHER BATTERY CASE
999
LOOM TIE , Replaced By: A3459977390
999
CLAMP. LOOM TIE90-110
999
BRACKET MANUAL CONTROL, ON CAB 331
999
KNOB WITH SPINDLE
999
CROSS MEMBERNO.3,GB730581,345.000-003,017,018,021,024,025,026,300
999
LINE FROM FUEL TANK TO RUBBER HOSE,FB689884
999
LINE FROM RUBBER HOSE TO FUEL TANK,FB689884
999
LINE FROM RUBBER HOSE TO FUEL TANK,FB689884
999
RADIATOR STRUT , 032-041 FROM CHASSIS 248006, 132-141 FROM CHASSIS 249672 030-041 UP TO CHASSIS 587298 030-041 FROM CHASSIS 699836
999
HOSE FROM FUEL TANK TO ENGINE 4X10X800,732914
999
KNOB ,B 748252, Replaced By: A3503007907, +001A3450707030
999
LINE FUEL LINE TO CYLINDER HEAD,689885
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
SCREW CABLE CONNECTOR TO BRACKET
999
LOCK WASHER , Replaced By: N912004010102
999
SCREW BRACKET MOUNTING
