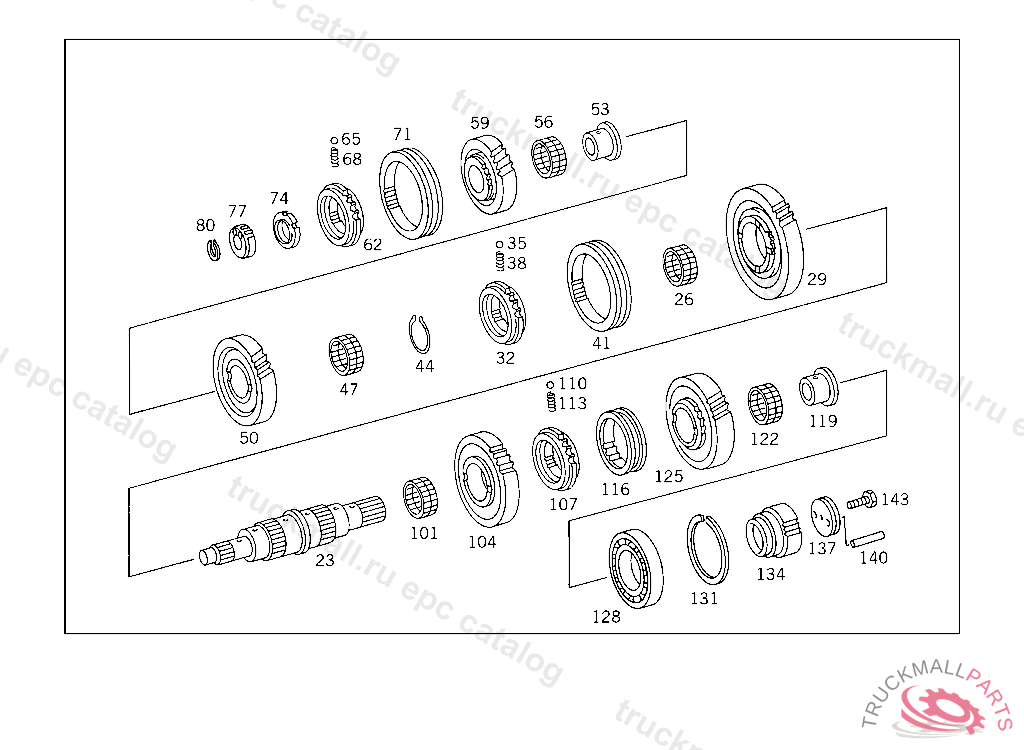

Поз.
Артикул
Описание
23
MAIN SHAFT ,019226
26
NEEDLE BEARING CRAWLER SPEED GEAR
26
NEEDLE BEARING CRAWLER SPEED GEAR
26
NEEDLE BEARING , Replaced By: A0059818710
29
GEAR 1ST SPEED
32
SYNCHRONIZER HUB 1ST AND 2ND SPEED
35
BALL P.T.O. SHAFT
38
SPRING MAIN SHAFT
41
SLIDING COLLAR 1ST AND 2ND SPEED
44
LOCK MAINSHAFT, AS REQUIRED 2.50 MM
44
LOCK MAINSHAFT, AS REQUIRED 2.40 MM
47
NEEDLE BEARING 2ND SPEED GEAR
47
NEEDLE BEARING 2ND SPEED GEAR
50
GEAR 2ND SPEED
53
BUSHING
56
NEEDLE BEARING 3RD SPEED GEAR
56
NEEDLE BEARING 3RD SPEED GEAR
59
GEAR 3RD SPEED
59
GEAR , Replaced By: A0002621513, +001A0002630914
62
SYNCHRONIZER HUB 3RD AND 4TH SPEED
65
BALL P.T.O. SHAFT
68
SPRING
71
SLIDING COLLAR 3RD AND 4TH SPEED
74
NUT COUNTERSHAFT,FRONT
77
CYLINDR. ROLLER BEARING
80
LOCK RING
101
NEEDLE BEARING CRAWLER SPEED GEAR
101
NEEDLE BEARING CRAWLER SPEED GEAR
104
GEAR CRAWLER GEAR,019226
107
SYNCHRONIZER HUB REVERSE SPEED AND CRAWLER GEAR,019226
110
BALL P.T.O. SHAFT
113
SPRING
116
SLIDING COLLAR REVERSE SPEED
119
BUSHING REVERSE SPEED GEAR
122
NEEDLE BEARING CRAWLER SPEED GEAR
122
NEEDLE BEARING CRAWLER SPEED GEAR
125
GEAR REVERSE SPEED,019226
128
CYLINDR. ROLLER BEARING , Replaced By: N005412770009
128
CYLINDR. ROLLER BEARING
131
SNAP RING MAIN SHAFT,REAR
134
GEAR , Replaced By: A0002620609
134
SUN GEAR
137
THRUST WASHER MAIN SHAFT,REAR
140
SPACER TUBE MAIN SHAFT,REAR
143
SCREW MAIN SHAFT,REAR
143
SCREW , Replaced By: N000933010087
