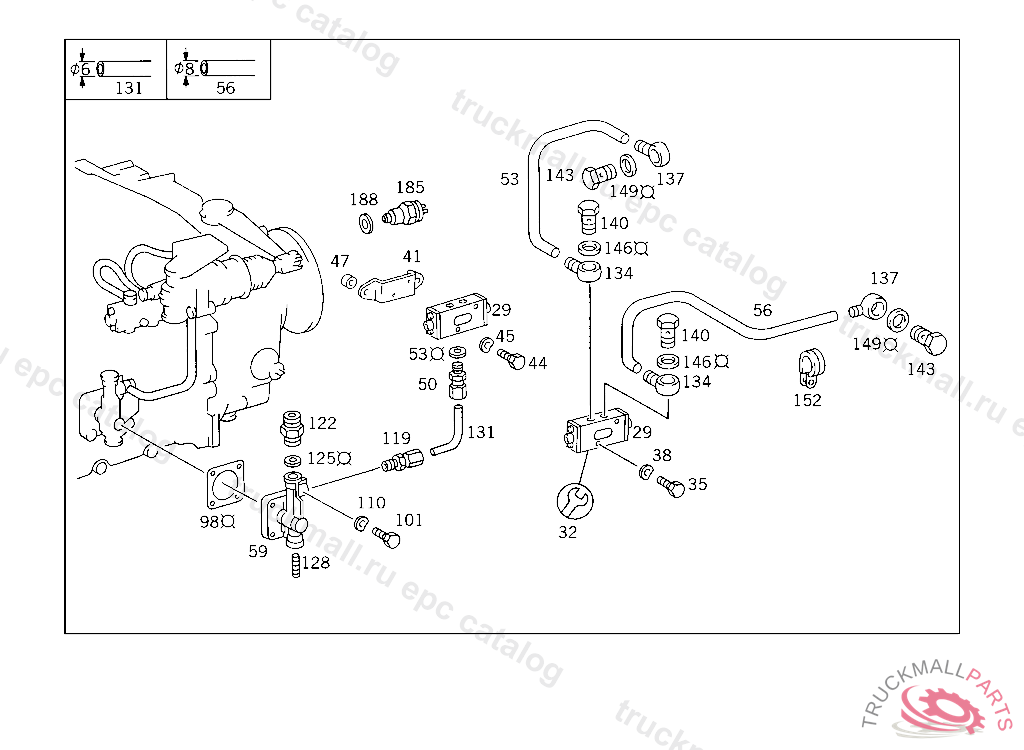

Поз.
Артикул
Описание
29
VALVE 4/2-WAY
29
VALVE , Replaced By: A0002601457
32
REPAIR KIT 4/2-WAY VALVE TO 000 260 59 57
32
REPAIR KIT 4/2-WAY VALVE TO 000 260 14 57
35
SCREW TWO-WAY VALVE TO BRACKET
38
SPRING WASHER ALTERNATOR CONNECTION D+
41
BRACKET 4/2-WAY VALVE
44
SCREW CLUTCH TO FLYWHEEL
45
SPRING WASHER STEERING COLUMN BRACKET TO CAB
47
BUSHING , Replaced By: A3241440150
47
BUSHING BRACKET TO TRANSMISSION CASE
50
SCREW CONNECTION 3/2-WAY VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
53
SEAL RING PNEUMATIC VALVE
53
SEAL RING , Replaced By: N007603010110
56
HOSE , Replaced By: A0009979052
56
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
59
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0012602757
59
VALVE , Replaced By: A0012602757
59
VALVE 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
98
GASKET SHIFT CASE
98
GASKET , Replaced By: A0002685880
101
SCREW , Replaced By: N304017008021
101
SCREW PIPE CLAMP
110
SPRING WASHER , Replaced By: N000137008212
110
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
119
SCREW CONNECTION 3/2-WAY VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
122
SCREW CONNECTION 3/2-WAY VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
125
SEAL RING LINE CONNECTION
128
PLUG SHIFTING CYLINDER
128
PLUG , Replaced By: A0019972635
128
PLUG 4/2-WAY VALVE,001875,5 K 90 GP003320,5 S 90 GP
131
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
134
BANJO UNION , Replaced By: A0019907288
134
BANJO UNION 4/2-WAY VALVE 10/5 MM
137
BANJO UNION
140
HOLLOW SCREW LINE CONNECTION
143
HOLLOW SCREW HEATING CONNECTION
146
SEAL RING PNEUMATIC VALVE
146
SEAL RING , Replaced By: N007603010110
149
SEAL RING LINE CONNECTION
152
CLAMP PNEUMATIC LINE TO TRANSMISSION CASE COVER,130872
152
CLAMP , Replaced By: N916016020201
185
SWITCH , Replaced By: A0025458114
185
SWITCH , Replaced By: A0035451614
185
SWITCH GEAR CLUSTER INDICATION
188
SEAL RING SWITCH TO CASE COVER
188
SEAL RING , Replaced By: N007603018100
999
VALVE
