Поз.
Артикул
Описание

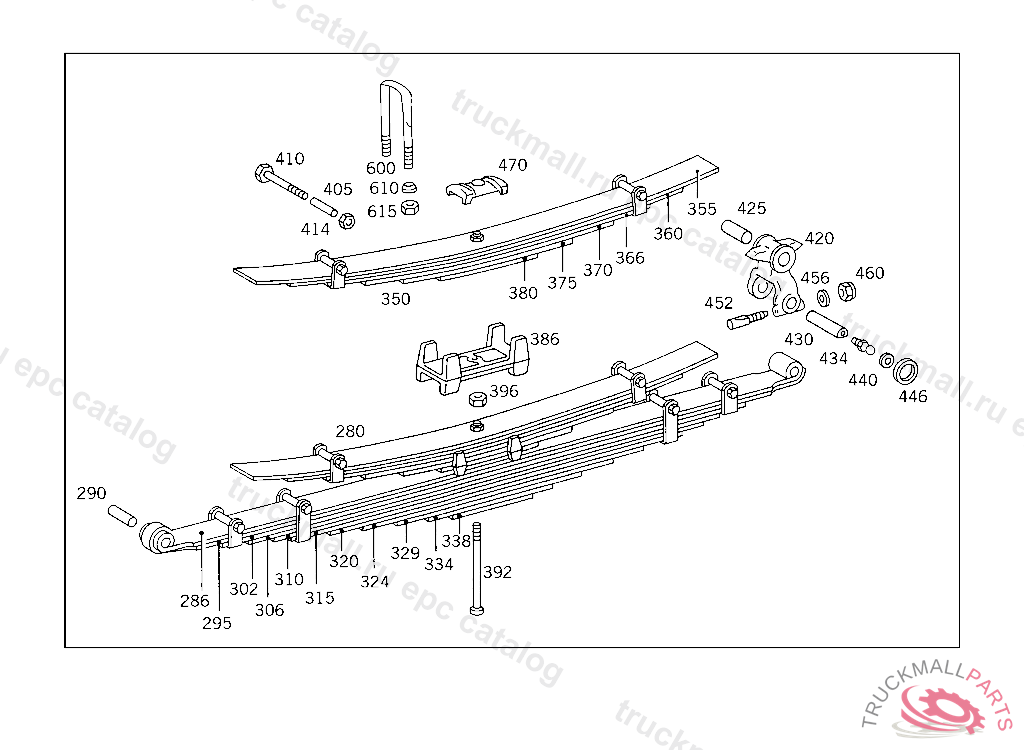

280
REAR SPRING 9-LEAF,WITH 6-LEAF HELPER SPRING, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
286
SPRING LEAFNO.1
290
BUSHING
290
BUSHING
295
SPRING LEAFNO.2
302
SPRING LEAFNO.3
306
SPRING LEAFNO.4
310
SPRING LEAFNO.5
350
HELPER SPRING
355
SPRING LEAF NO.1, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
360
SPRING LEAF NO.2, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
366
SPRING LEAFNO.3
370
SPRING LEAFNO.4
375
SPRING LEAFNO.5
380
SPRING LEAFNO.6
386
SPACER
392
SPRING BOLTM 12X1,75X225
396
NUT SPRING BOLT
405
SPACER TUBE EXHAUST PIPE TO BRACKET
405
SPACER TUBE , Replaced By: A3140720253
410
SCREW
414
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
420
SHACKLE REAR SPRING SUSPENSION
425
BUSHING
425
BUSHING
430
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
434
GREASE NIPPLE PROTECTIVE TUBE
440
WASHER AS REQUIRED 4.0 MM
440
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
440
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
440
WASHER AS REQUIRED 4.2 MM
446
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
452
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
456
WASHER GROUND CABLE
460
NUT BRACKET TO SIDE MEMBER,XB209706
470
PLATE , Replaced By: A6953257031
600
U-BOLT REAR SPRING TO REAR AXLE, NOT USED
610
WASHER FRONT SPRINGS TO FRONT AXLE
615
NUT SUPPORT TO SPARE WHEEL CARRIER
